Ficha coaxial DeLOCK 89688

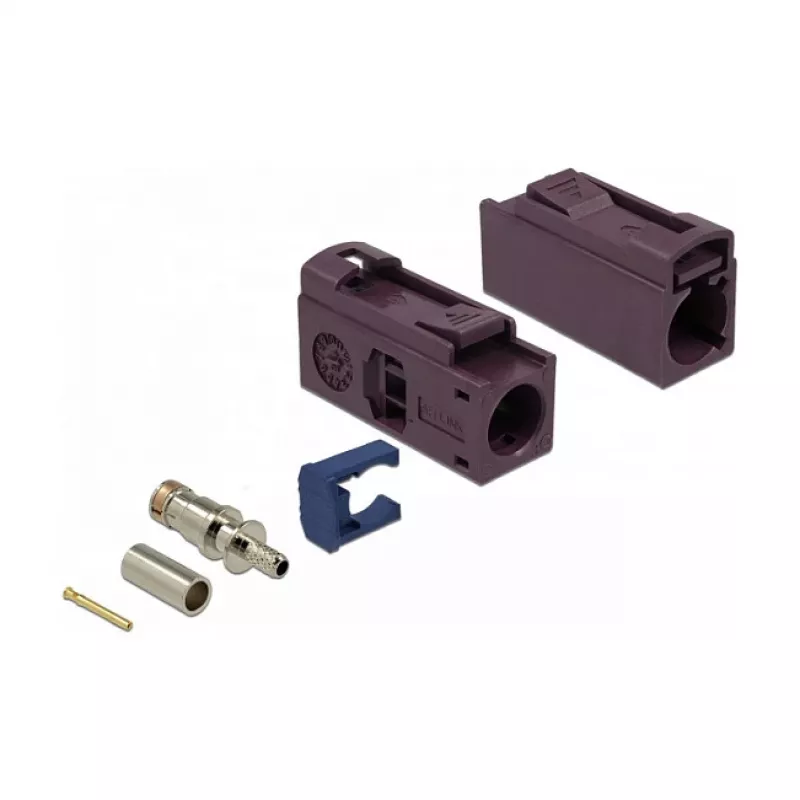

The DeLOCK 89688 coaxial connector is a compact male FAKRA D jack designed for connecting components used in radio frequency technology. It has gold-plated contacts to ensure reliable signal transmission and a black housing. The connector is supplied in a polybag and sold as a single unit.

Advantages

Gold-plated contacts reduce signal loss and corrosion, while the male FAKRA D form factor offers compatibility with FAKRA D female counterparts used in automotive and RF systems. Its compact dimensions (13.8 mm × 25 mm × 9.5 mm) make installation into tight spaces straightforward.

Suitable for

Key specifications

How to use

Align the male FAKRA D connector with the corresponding female FAKRA D socket and press until the connector locks into place. Ensure proper orientation before insertion to avoid damaging the contacts. For cable assembly, follow standard coaxial handling procedures and use appropriate crimping or soldering methods as specified by the cable and connector manufacturer.

Recommendations

Use the DeLOCK 89688 in dry, clean environments and avoid excessive bending or mechanical stress on the cable and connector. Verify compatibility with the mating FAKRA D female connector and observe ESD precautions when handling sensitive RF equipment.
