Fonte de alimentação AC/DC médica MEAN WELL GSM60A24-P1J 60W 24V 2.5A com ficha DC P1J

Delivering a full 60W at 24V with a 2.5A output, this MEAN WELL GSM60A24-P1J power adapter is built for medical-grade reliability. Its 2xMOPP isolation and ANSI/AAMI ES60601-1 certification make it suitable for patient-contact applications, while the IEC 320-C14 inlet accepts universal 80–264 VAC input for global use.

Overview

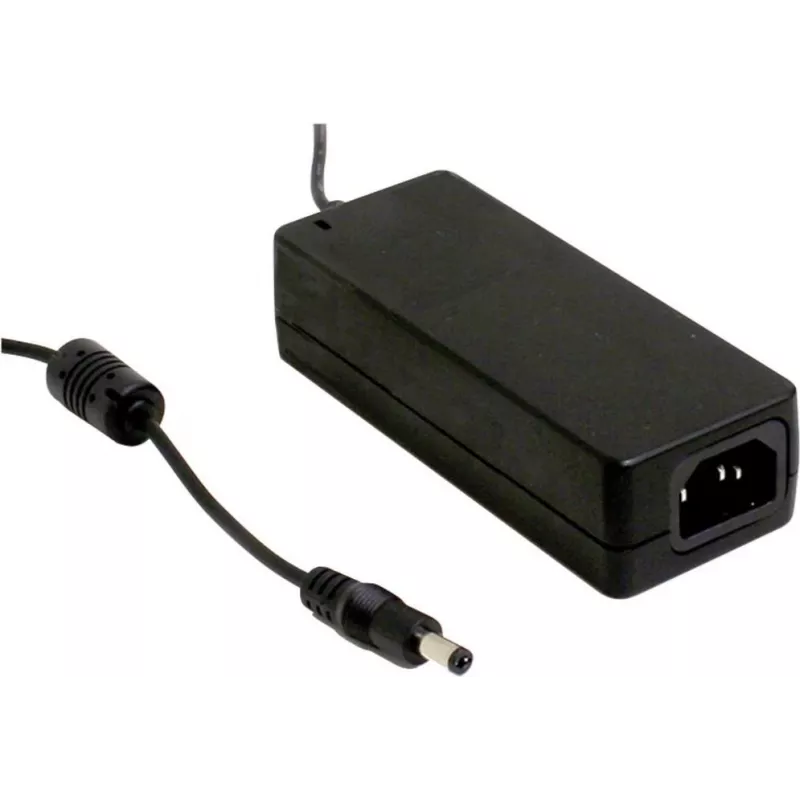

The GSM60A24-P1J is a desktop-style AC/DC adapter in a compact, rugged enclosure. It provides a regulated 24V DC output via a standard P1J barrel connector (2.1 x 5.5 x 11mm, center positive), making it compatible with a wide range of medical devices, test equipment, and industrial systems. With DoE Level VI efficiency and ultra-low no-load power consumption (<0.15W), it meets stringent energy regulations while minimizing standby waste.

What stands out

• Medical safety approvals: ANSI/AAMI ES60601-1 and IEC/EN 60601-1 with 2xMOPP, suitable for patient vicinity.
• High efficiency up to 90% and DoE Level VI compliance, reducing energy costs and heat generation.
• Wide operating temperature range from -30°C to +70°C, ensuring reliable performance in harsh environments.
• Comprehensive protections: short circuit, overload, over voltage, and over temperature.
• Low leakage current (<100µA) and 4000 VAC isolation for enhanced safety.
• Compact desktop design with IEC 320-C14 AC inlet for easy cable management.

Technical details

• Output: 24V DC, 2.5A, 60W max
• Input: 80–264 VAC, 47–63 Hz
• Efficiency: up to 90%
• No-load power consumption: <0.15W
• Ripple & noise: 150mVp-p
• Voltage tolerance: ±1%
• Line regulation: ±0.5%
• Load regulation: ±0.5%
• Isolation voltage: 4000 VAC (input to output)
• Leakage current: <100µA
• Protections: short circuit, overload, over voltage, over temperature
• Operating temperature: -30°C to +70°C
• AC input connector: IEC 320-C14
• DC output connector: P1J (2.1 x 5.5 x 11mm, center positive)

Our verdict

For medical or industrial applications demanding a safe, efficient, and globally compatible 24V power source, the MEAN WELL GSM60A24-P1J is a top-tier choice. Its certified 2xMOPP isolation and wide temperature range provide peace of mind, while the high efficiency and low standby power keep operating costs down.
