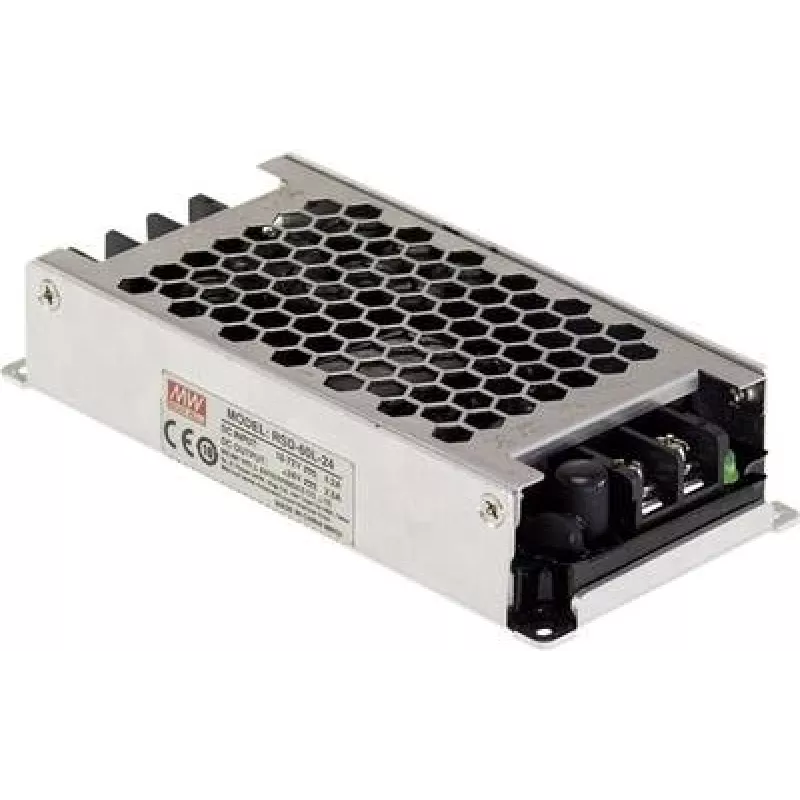

Fonte de alimentação/conversor DC MEAN WELL RSD-60G-24, 60 W, 24 V, RoHS, 60×128×25 mm

MEAN WELL RSD-60G-24 is a compact 60 W DC-DC enclosed converter that provides a regulated 24 V DC output from a 9–36 V DC input range. Designed for industrial and embedded applications, this module meets railway standard EN50155 and offers 4000 VDC input-to-output isolation. The unit measures 60 × 128 × 25 mm, is RoHS compliant and is intended for powering low- to medium-power devices, control modules and instrumentation that require a reliable compact 24 V supply.

Advantages

The RSD-60G-24 delivers up to 2.5 A at 24 V with wide input voltage compatibility, enabling use across varied vehicle and industrial power systems. Its EN50155 compliance makes it suitable for rail and transport applications, while 4000 VDC isolation enhances system safety and noise immunity. The enclosed design and compact dimensions simplify mechanical integration into cabinets, control panels or embedded assemblies.

Suitable for

• Powering control modules and PLCs in industrial equipment
• On-board electronics and auxiliary systems in rail and mass transit
• Instrumentation, sensors and data acquisition devices
• Embedded systems and automation controllers requiring 24 V DC
• Replacement or retrofit applications where space is limited

Key specifications

• Output power: 60 W
• Output voltage: 24 V DC
• Output current: 2.5 A
• Input voltage range: 9–36 V DC
• Isolation: 4000 VDC input-to-output
• Standards: EN50155 (railway)
• Dimensions: 60 × 128 × 25 mm
• Compliance: RoHS

How to use

Install the RSD-60G-24 in a location with adequate ventilation and secure it mechanically according to the enclosure mounting requirements. Connect the DC input within the specified 9–36 V range, observing correct polarity. Connect the 24 V DC output to the load, ensuring the maximum 2.5 A output current is not exceeded. Verify grounding and meet system earthing requirements for reliable operation in rail or industrial environments. Follow applicable wiring practices and protective measures such as fusing on the input or output where required by system design.
