Fonte de alimentação MEAN WELL A301-600-F3 600W 12V entrada 230V saída

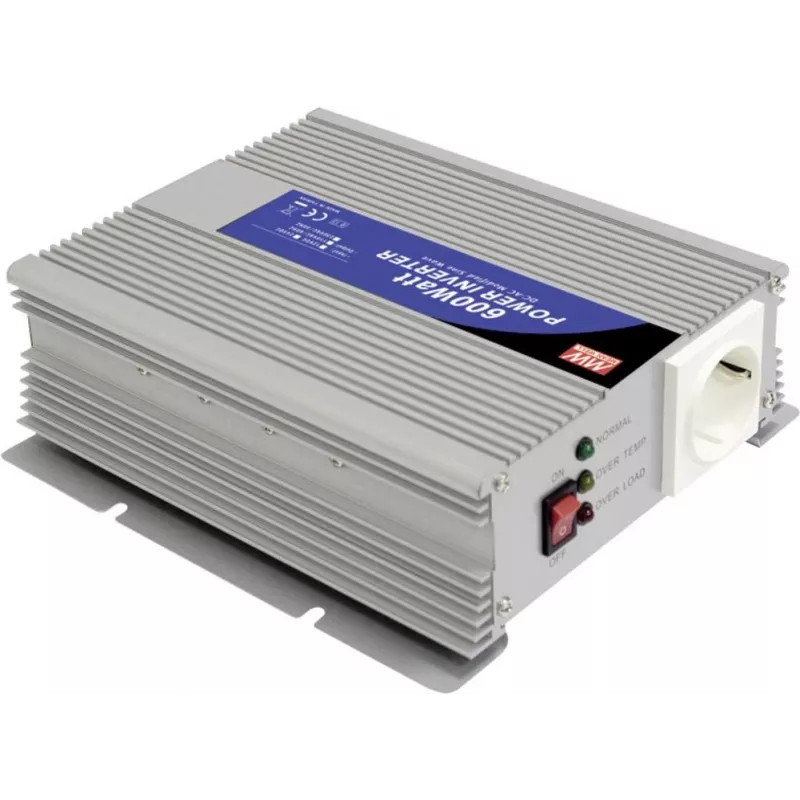

The MEAN WELL A301-600-F3 is a 600W DC-AC modified sine wave inverter designed to convert 12V DC input to 230V AC output. It provides a compact power solution for devices and systems that require AC voltage from a 12V source. The unit includes an ON/OFF switch and a cooling fan with ON/OFF control and is RoHS certified.

Advantages

The inverter delivers up to 600W of continuous output power and features user controls for the main power and fan operation. Its modified sine wave output makes it suitable for many common AC loads while keeping the design compact (173 mm × 210 mm × 65 mm). RoHS certification confirms compliance with environmental directives.

Suitable for

• Powering household electronics from 12V battery systems
• Mobile and vehicle applications (camping, vans)
• Backup power for small appliances and equipment

Key specifications

• Model: MEAN WELL A301-600-F3
• Output power: 600W (modified sine wave)
• Input voltage: 12 V DC
• Output voltage: 230 V AC
• Controls: ON/OFF switch; cooling fan ON/OFF control
• Certifications: RoHS
• Dimensions: 173 mm (W) × 210 mm (D) × 65 mm (H)
• MPN: A301-600-F3
• EAN: 4021087006095

How to use

Connect the inverter to a 12V DC source observing correct polarity. Turn on the main ON/OFF switch to enable the 230V AC output. Use the fan ON/OFF control to manage cooling as needed during operation. Mount the unit in a well-ventilated location and ensure secure electrical connections before powering AC loads.

Recommendations

Use the MEAN WELL A301-600-F3 with appropriate battery capacity and wiring rated for the expected current. Avoid connecting inductive loads that exceed the inverter's surge capability and keep the unit ventilated to prevent overheating.
