Conversor de tensão MEAN WELL DDR-30L-24, 30 W, entrada 18–75 V, saída 24 V, RoHS, 35×54,5×90 mm

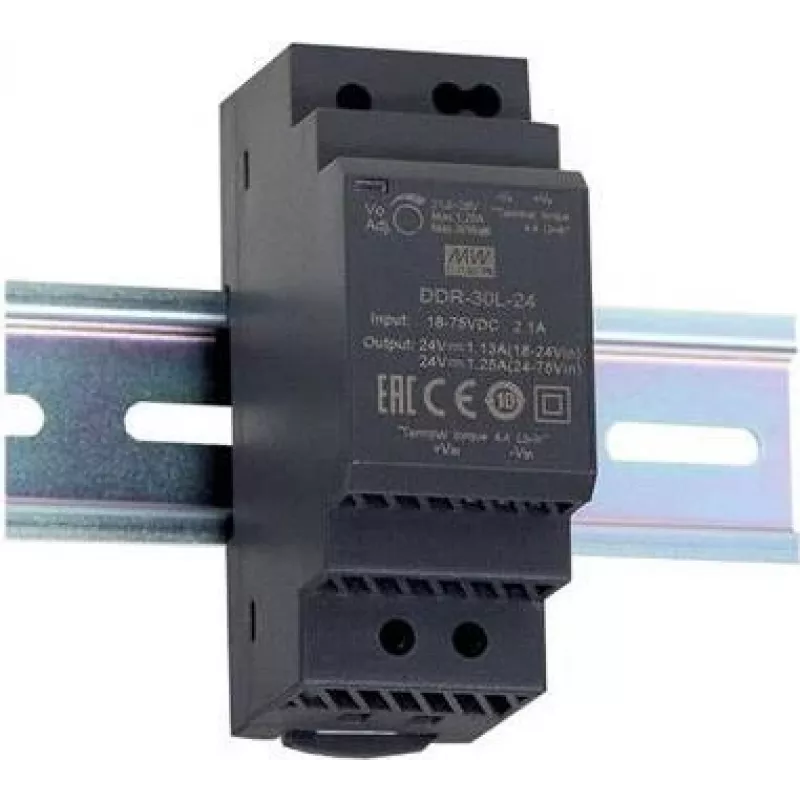

MEAN WELL DDR-30L-24 is an ultra-slim industrial DC-DC DIN-rail power converter that delivers a fixed 24 V output at up to 1.25 A from a wide input range of 18–75 Vdc. With a rated power of 30 W and compact dimensions of 35 × 54.5 × 90 mm, this RoHS-compliant module is intended for space-constrained installations in industrial and vehicular systems requiring a stable 24 V supply.

Advantages

The converter offers a wide input voltage range (18–75 V) suitable for various DC sources, a compact ultra-slim form factor for DIN-rail mounting, and a regulated 24 V single output providing reliable power up to 30 W. RoHS compliance and standardized mounting make it convenient for industrial use and series deployment; the product is supplied in bulk packs of 96 pieces.

Suitable for

• Industrial control cabinets and automation equipment
• Vehicular power systems and mobile machinery
• Space-limited DIN-rail installations
• Applications requiring a stable 24 V supply from wide-range DC sources

Key specifications

• Model: MEAN WELL DDR-30L-24 (MPN: DDR-30L-24)
• Input voltage: 18–75 Vdc
• Output: 24 Vdc, up to 1.25 A (30 W)
• Power rating: 30 W
• Dimensions: 35 × 54.5 × 90 mm
• Compliance: RoHS
• Packaging: supplied in packs of 96 pieces

How to use

Mount the DDR-30L-24 on a compatible DIN rail and make electrical connections according to the wiring diagram provided by the manufacturer. Connect a suitable DC source within the 18–75 V input range to the input terminals and connect the load to the 24 V output terminals, observing polarity. Ensure adequate ventilation and follow standard safety practices for wiring and grounding in industrial installations.

Recommendations

Install the converter in an environment within the manufacturer's specified temperature and vibration limits, use appropriate fuses or overcurrent protection on the input, and avoid exceeding the 30 W output rating to ensure reliable long-term operation.
