Transformador MEAN WELL GSM220A12-R7B 220W 12V entrada 80-264V

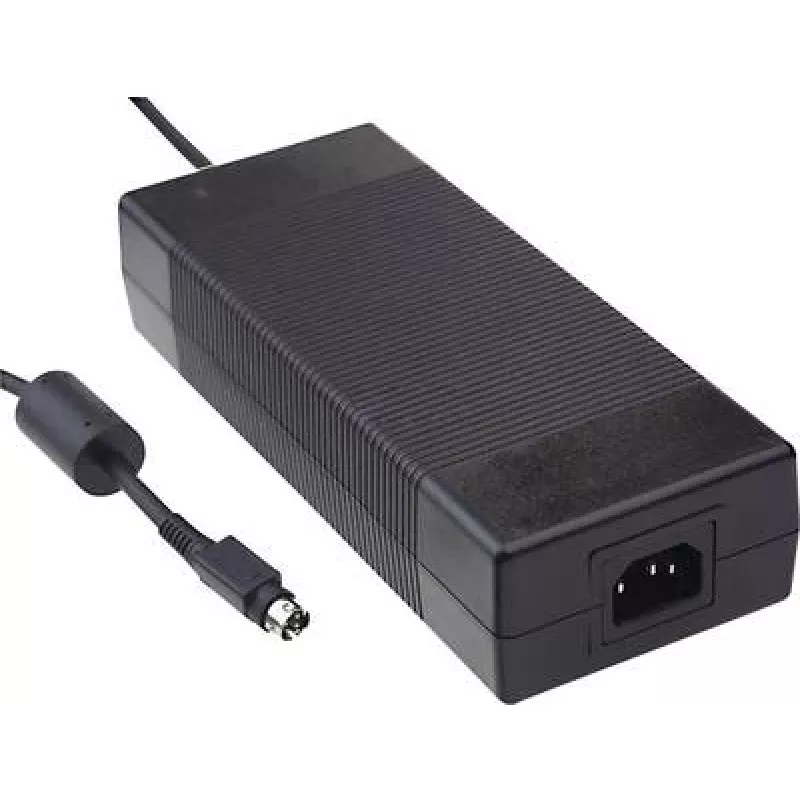

The MEAN WELL GSM220A12-R7B is a desktop AC-DC medical power adapter with Active PFC, designed to deliver a stable 12V DC output at up to 15A (220W). It accepts a wide AC input range from 80 to 264V via a 3-pin IEC320-C14 socket and provides a DIN 4-pin plug with lock for the DC connection. Constructed to meet medical safety requirements, it features EN60601 compliance with 2xMOPP isolation and is a Class I device. The adapter has compact dimensions (85 mm × 210 mm × 46 mm) and is RoHS certified.

Advantages

The adapter integrates Active PFC for improved power factor and stable operation across the specified input range. Medical-grade safety with EN60601 and 2xMOPP isolation supports use in equipment requiring dual means of patient protection. The locked DIN 4-pin output ensures a secure connection, while the compact form factor allows installation in space-constrained environments. RoHS compliance confirms reduced hazardous substances.

Suitable for

• Medical devices and healthcare equipment that require EN60601-compliant power supplies
• Desktop or benchtop systems needing a compact 12V/15A supply
• Industrial or laboratory equipment with a DIN 4-pin DC input

Key specifications

• Model: MEAN WELL GSM220A12-R7B
• Input: 80–264VAC via IEC320-C14 (3-pin)
• Output: 12V DC, 15A (220W) via DIN 4-pin plug with lock
• Power factor correction: Active PFC
• Safety: EN60601, 2xMOPP
• Protection class: Class I
• Dimensions: 85 mm (W) × 210 mm (D) × 46 mm (H)
• Certifications: RoHS

How to use

Install the adapter on a stable, ventilated desktop surface and connect the AC supply using the IEC320-C14 mains lead. Confirm the input voltage is within 80–264VAC before powering. Plug the DIN 4-pin output into the device’s corresponding socket and engage the locking mechanism to secure the connection. Power the adapter on and verify the device receives a steady 12V DC output. Follow the equipment manufacturer’s instructions for any additional connection or grounding requirements.

Recommendations

Use in well-ventilated locations and avoid covering the adapter to maintain cooling. Ensure routine inspection of cables and connectors for wear. For medical applications, verify system-level compliance and maintain separation and grounding as specified by the device manufacturer and applicable regulations.
