Fonte de alimentação MEAN WELL GEM60I09-P1J 60W 9V 80-264V

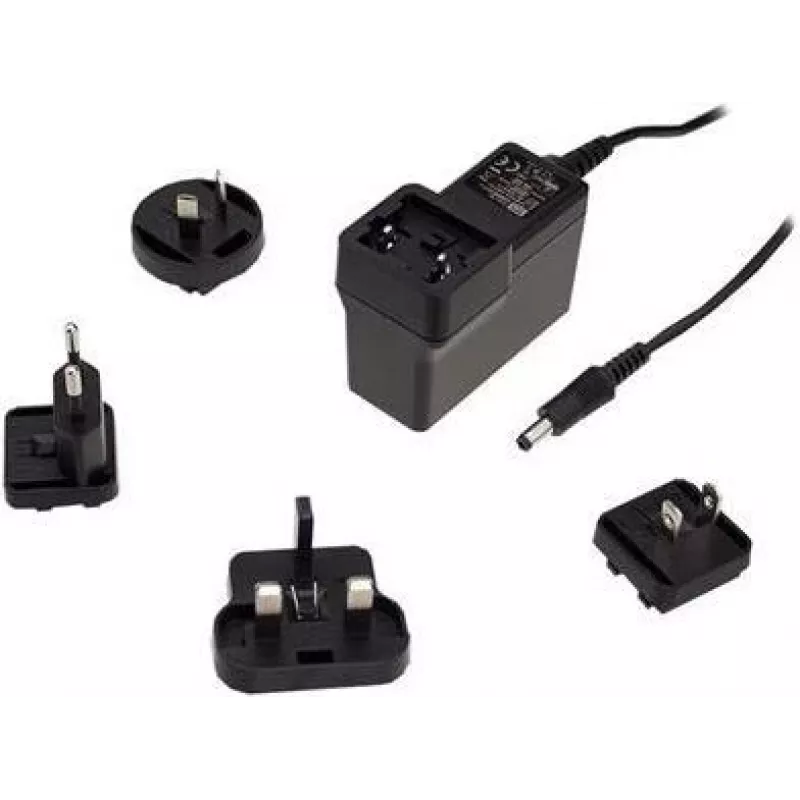

The MEAN WELL GEM60I09-P1J is an ultra-slim AC-DC wall-mount medical power adapter providing a regulated 9 V DC output at up to 5.5 A (60 W) from a wide 80–264 V AC input range. The compact adaptor (39.1 mm × 75.5 mm × 56.2 mm) is intended for medical and general electronic equipment requiring a stable low-voltage supply. Interchangeable AC mains plugs are not included and must be ordered separately. The unit is RoHS compliant and features two means of patient protection (2xMOPP) suitable for medical applications.

Advantages

The GEM60I09-P1J offers a high power density in an ultra-slim wall-mount form factor, delivering 60 W from a small footprint while meeting medical isolation requirements with 2xMOPP. Its wide input range (80–264 V AC) supports global use without additional converters, and RoHS compliance ensures adherence to environmental standards. Interchangeable AC plugs allow flexible installation when selected separately.

Suitable for

• Medical devices requiring 9 V DC with medical isolation (2xMOPP)
• Portable diagnostic equipment and bedside electronics
• Embedded systems and communication devices that need a compact 60 W supply

Key specifications

• Model: MEAN WELL GEM60I09-P1J
• Output: 9 V DC, 5.5 A (60 W)
• Input voltage: 80–264 V AC
• Protection: 2xMOPP (medical isolation)
• Dimensions: 39.1 mm (W) × 75.5 mm (D) × 56.2 mm (H)
• Compliance: RoHS
• Interchangeable AC plugs: not included (sold separately)
• Brand: mean well
• MPN: GEM60I09-P1J
• EAN: 4021087050197

How to use

Select and attach the appropriate interchangeable AC mains plug (sold separately) for your region, then mount the adapter to a suitable wall outlet according to local electrical codes. Connect the 9 V DC output to the device requiring power, ensuring polarity and connector compatibility. Verify the device's input requirements (9 V DC, max 5.5 A) before use. Follow any additional installation instructions provided by the equipment manufacturer and mean well.

Recommendations

Use the MEAN WELL GEM60I09-P1J in ventilated, dry locations and avoid covering the adapter to ensure adequate cooling. Confirm compatibility with the target device and order the correct interchangeable AC plug for your region; do not exceed the rated 5.5 A output. For medical applications, observe applicable standards and installation requirements for devices using 2xMOPP isolation.
