Fonte de alimentação MEAN WELL GSM18E05-P1J 18W 5V 80-264V

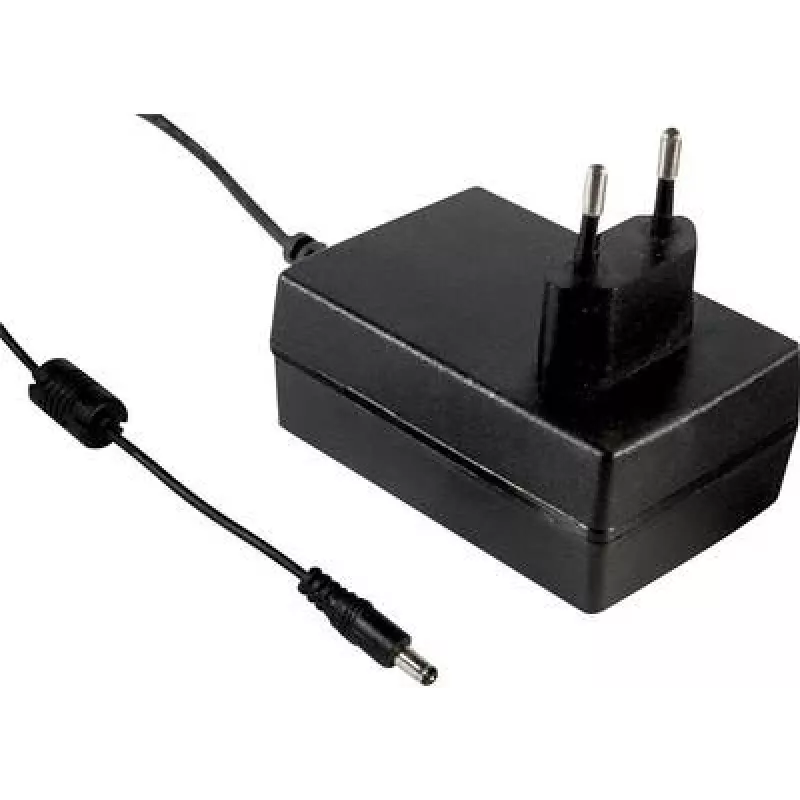

The MEAN WELL GSM18E05-P1J is a compact AC-DC medical wall-mount single-output adapter providing 5 V DC at 3 A (18 W) from an 80–264 V AC input. It meets EN 60601 medical safety requirements with 2xMOPP isolation and includes a Euro 2-pin plug. The adapter is RoHS compliant and has compact dimensions (54 mm × 79 mm × 33 mm), suitable for supplying stable low-voltage power to medical and electronic equipment.

Advantages

The adapter delivers a regulated 5 V DC output at up to 3 A with medical-grade isolation (EN 60601, 2xMOPP), offering reliable and safe power for sensitive devices. Its wide input voltage range (80–264 V AC) allows international use without additional transformers. The compact wall-mount design with Euro 2-pin plug saves space and simplifies installation while RoHS compliance ensures reduced hazardous substances.

Suitable for

• Medical devices requiring EN 60601-compliant power supplies
• Portable or stationary electronic equipment needing 5 V, 3 A input
• Systems where compact wall-mounted adapters are preferred

Key specifications

• Model: MEAN WELL GSM18E05-P1J
• Output: 5 V DC, 3 A (18 W)
• Input: 80–264 V AC
• Safety: EN 60601, 2xMOPP
• Plug: Euro 2-pin
• Compliance: RoHS
• Dimensions: 54 mm (W) × 79 mm (D) × 33 mm (H)
• Brand: Mean Well
• MPN: GSM18E05-P1J
• EAN: 4021087037105

How to use

Plug the Euro 2-pin connector into a suitable mains outlet within the 80–264 V AC range. Connect the adapter's DC output to the device requiring 5 V DC, observing correct polarity. Ensure the device's current draw does not exceed 3 A. Place the adapter where ventilation is adequate and avoid covering it or exposing it to liquids. Follow the device manufacturer's instructions and applicable medical equipment procedures when used with medical devices.

Recommendations

Use the adapter only with compatible equipment rated for 5 V DC input and up to 3 A. For medical applications, verify system-level compliance and follow relevant EN 60601 installation and maintenance guidelines. If the adapter shows signs of damage or overheating, discontinue use and replace with an approved unit.
