Fonte de alimentação MEAN WELL MPM-15-24 15W 24V Entrada 90-264V

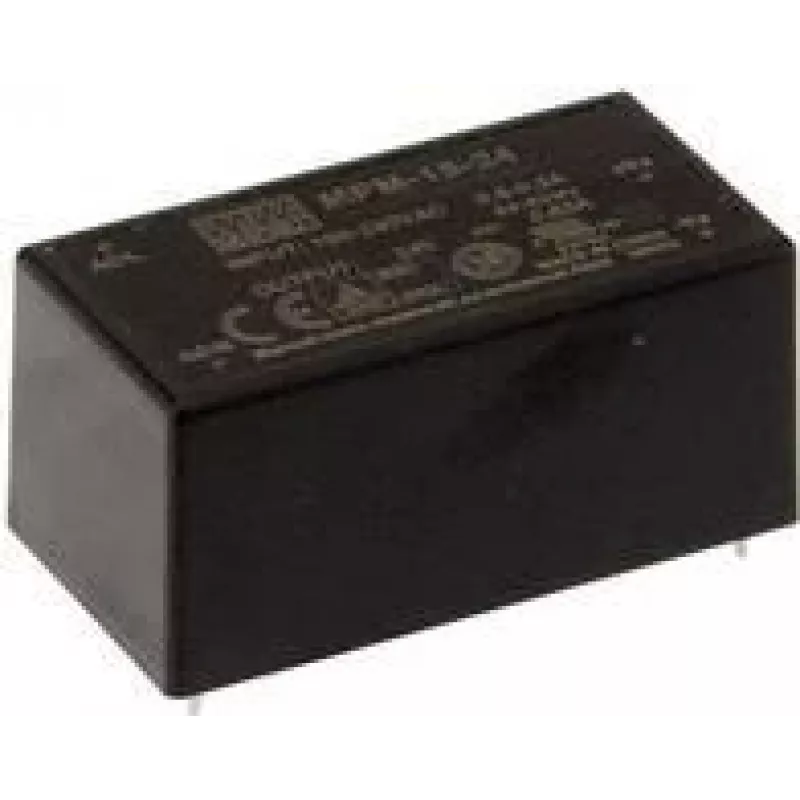

The MEAN WELL MPM-15-24 is a compact AC-DC single-output medical encapsulated power supply that delivers 24 V DC at 0.63 A (15 W). It accepts a wide input voltage range of 90–264 V AC, complies with RoHS, and features 2xMOPP isolation suitable for medical applications. The unit is lightweight and small—52.4 mm deep, 24 mm high and weighing 56 g—designed for PCB through-hole mounting.

Advantages

The adapter provides a stable 24 V output with up to 0.63 A current in a compact encapsulated housing. Its wide AC input range (90–264 V) supports global operation, while 2xMOPP isolation increases safety for medical equipment. The small size and low weight facilitate integration into space-constrained PCB designs, and RoHS compliance ensures reduced hazardous substances.

Suitable for

• Low-power medical devices requiring isolated 24 V supply
• PCB-mounted industrial control modules
• Embedded systems and instrumentation with space limitations

Key specifications

• Model: MPM-15-24
• Output: 24 V DC, 0.63 A (15 W)
• Input voltage: 90–264 V AC
• Mounting: PCB through-hole
• Isolation: 2xMOPP (medical)
• Dimensions: depth 52.4 mm, height 24 mm
• Weight: 56 g
• Standards: RoHS compliant

How to use

Mount the MPM-15-24 onto the PCB using the through-hole pins according to the manufacturer’s recommended footprint and soldering guidelines. Connect the AC input within the specified 90–264 V range and verify correct polarity and secure connections on the 24 V DC output before powering connected circuitry. Observe standard handling for encapsulated medical power modules to avoid mechanical stress during assembly.

Recommendations

Use the module in equipment designs that require medical-grade isolation; provide adequate PCB creepage and clearance distances, ensure proper thermal management and avoid operating continuously at maximum rated load without verifying temperature rise in the final enclosure.
