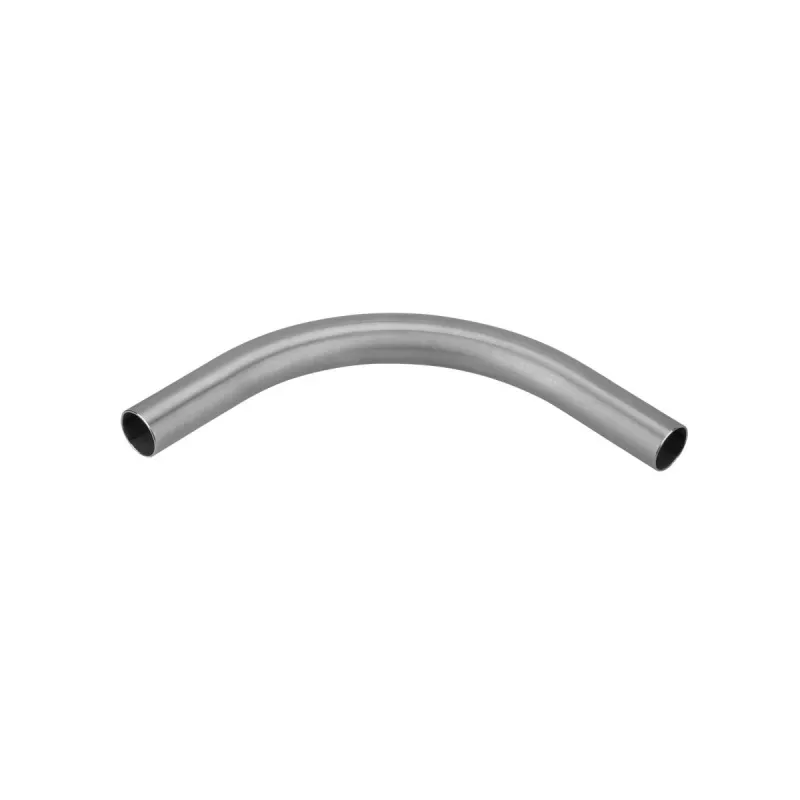

FRAENKISCHE curva de encaixe em aço inoxidável 90° para sistema de tubo de instalação elétrica VBS-E, 32 mm 20860032

In industrial plants, food processing facilities, and outdoor installations, electricians need conduit components that withstand aggressive environments and install quickly. This stainless steel push-fit bend from FRAENKISCHE is made for the VBS-E conduit system, providing a secure 90° change of direction without tools.

Key specifications

• Product type: Push-fit bend / elbow
• Material: Stainless steel
• Nominal diameter: 32 mm
• Bend angle: 90°
• Connection type: Push-fit / plug-in
• System compatibility: FRAENKISCHE VBS-E conduit system
• Operating temperature range: -45°C to +400°C
• Protection class: IP69K when installed with VBS-E system and appropriate seals
• Standard compliance: DIN EN 61386
• Halogen-free: Yes
• Flame retardant: Non-flammable
• Colour: Metallic silver
• Surface finish: Smooth

Why choose it

Stainless steel construction offers very high corrosion resistance and UV resistance, making it suitable for demanding environments including chemical exposure and outdoor use. The tool-free push-fit installation reduces labour time and ensures a reliable connection.

Ideal use cases

• Electrical conduit installations in industrial plants
• Food processing and chemical facilities
• Outdoor installations exposed to weather and UV
• Applications requiring high temperature resistance

Good to know

The bend is designed for use with FRAENKISCHE VBS-E conduit and fittings. It is halogen-free and non-flammable, contributing to fire safety in installations.
