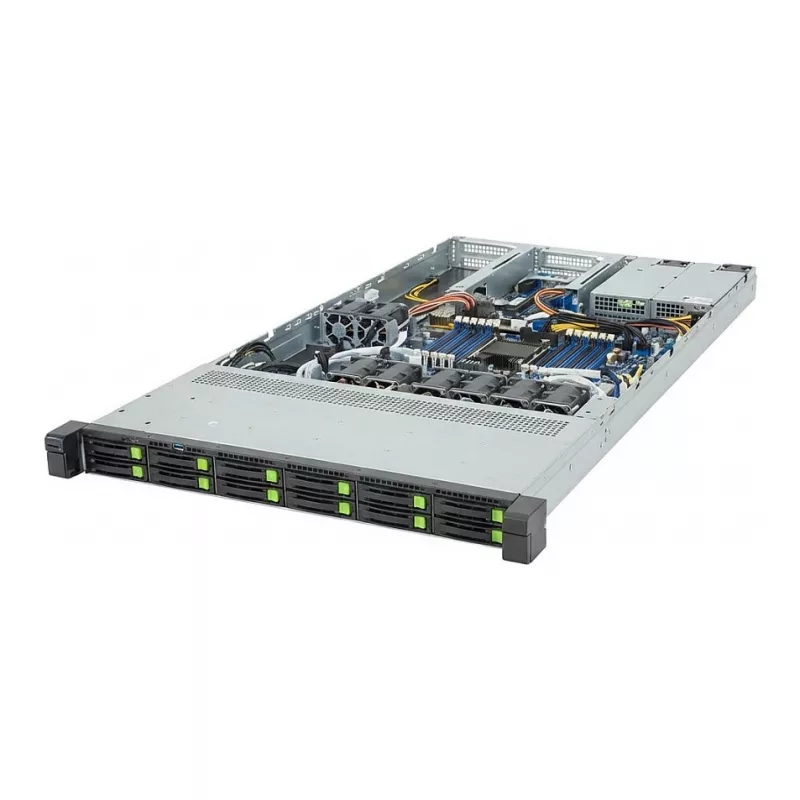

Gigabyte R164-AG0-AAV1 servidor rack 1U, Single Socket SP5, AMD EPYC 9004, 12x DDR5, 4x 3,5" Hot-Swap, 2x fontes de alimentação redundantes de 800W

Data centers grappling with dense virtualization and cloud workloads need compute power that doesn't compromise on rack space or reliability. The GIGABYTE R164-AG0-AAV1 answers that call with a single-socket AMD EPYC 9004 platform in a compact 1U chassis, delivering up to 96 cores, PCIe Gen5 throughput, and redundant power in a footprint built for scale-out efficiency.

Who is it for

This server targets enterprise IT teams running virtualization clusters, hyper-converged infrastructure, private clouds, and edge deployments. It's equally suited to high-performance computing tasks that demand massive memory bandwidth and low-latency storage without expanding beyond a single rack unit.

Main features

• Single Socket SP5 (LGA-7529) supporting AMD EPYC 9004 series processors (Genoa, Bergamo, Siena)
• 12 DDR5 DIMM slots for up to 3TB of memory at 4800MHz, enabling large in-memory databases and VDI
• Four 3.5" hot-swap drive bays for SATA/SAS storage, with optional RAID via add-on controller
• Dual 800W 80 PLUS Platinum redundant power supplies for uninterrupted operation
• PCIe Gen5 expansion: one FHFL x16 slot and one OCP 3.0 x16 slot for high-speed networking or accelerators
• Integrated dual 1GbE LAN (Intel I350-AM2) plus dedicated management port with ASPEED AST2600 BMC
• Remote management via IPMI 2.0 and KVM over IP for lights-out administration

Specifications

• Form factor: 1U rackmount
• Processor socket: Single SP5 (LGA-7529)
• Processor support: AMD EPYC 9004 series
• Chipset: Integrated with CPU
• Memory slots: 12 x DDR5 DIMM (RDIMM/LRDIMM)
• Maximum memory: 3TB
• Memory speed: Up to 4800MHz
• Drive bays: 4 x 3.5" SATA/SAS hot-swap
• Expansion slots: 1 x PCIe Gen5 x16 FHFL, 1 x OCP 3.0 Gen5 x16
• M.2 slot: 1 x PCIe Gen4 x4 (2280/22110)
• Network: 2 x 1GbE (Intel I350-AM2)
• Management: 1 x dedicated 1GbE (ASPEED AST2600 BMC), IPMI 2.0, KVM over IP
• Power supply: 2 x 800W 80 PLUS Platinum redundant
• Front I/O: 2 x USB 3.0
• Rear I/O: 2 x USB 3.0, 1 x VGA
• OS support: Windows Server, RHEL, SLES, Ubuntu, VMware ESXi

Tips

Pair this server with 256GB RDIMMs to reach the 3TB memory ceiling for memory-hungry analytics. For high-availability storage, populate all four bays with enterprise SATA SSDs and configure software RAID or add a hardware RAID card in the PCIe slot. Use the OCP 3.0 slot for a 25GbE or 100GbE NIC to eliminate bottlenecks in clustered environments.
