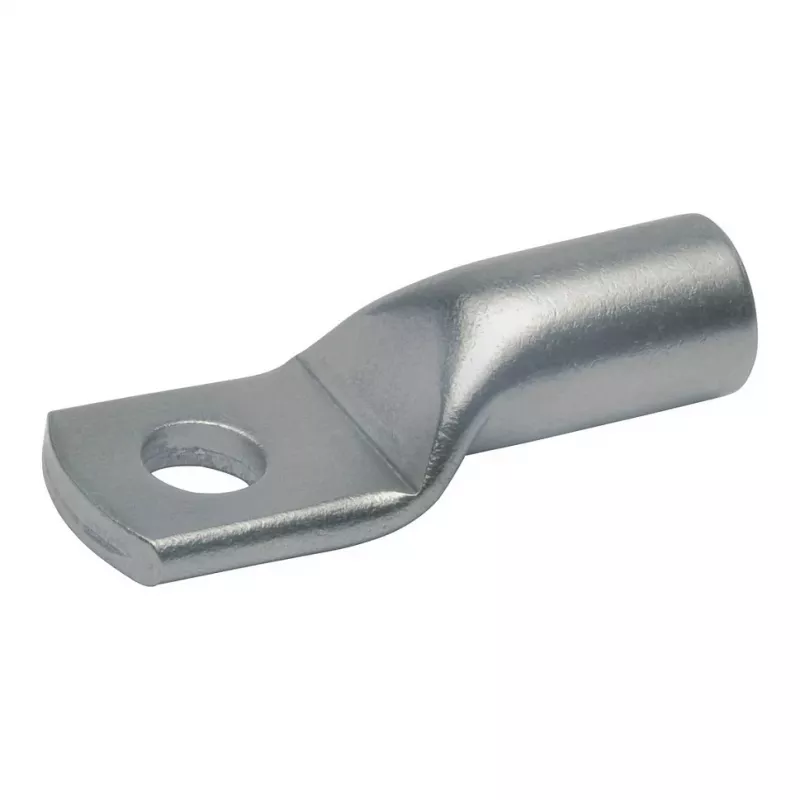

Klauke V2A terminal tubular de aço inoxidável 16 mm² M8 terminal de anel 83V8

This V2A stainless steel tubular cable lug provides a reliable ring-type connection for 16 mm² conductors in high-temperature and corrosive environments. Its M8 bolt hole and uninsulated design ensure a secure, low-resistance termination for demanding electrical installations.

Advantages

Crafted from V2A stainless steel, the lug offers exceptional corrosion resistance and withstands operating temperatures up to 400 °C. The tubular barrel accepts standard crimping tools, delivering a gas-tight connection that maintains conductivity even under thermal cycling. The ring form allows easy installation onto M8 studs or bolts, while the natural surface finish requires no additional plating.

Suitable for

• High-temperature wiring in industrial ovens, furnaces, and heating systems
• Corrosive environments such as chemical plants, marine applications, and outdoor installations
• Copper conductors with a cross-section of 16 mm²
• Applications requiring a single-hole ring terminal with M8 bolt size

Key specifications

• Material: V2A stainless steel
• Cable cross-section: 16 mm²
• Bolt hole diameter: M8
• Connection type: Ring terminal
• Design: Tubular cable lug
• Maximum operating temperature: 400 °C
• Insulation: Uninsulated
• Number of bolt holes: 1
• Conductor compatibility: Copper
• Surface finish: Natural

Recommendations

For optimal performance, use a calibrated hexagonal crimping die matched to the lug size. Ensure the conductor is clean and fully inserted into the barrel before crimping. In applications with vibration, consider additional mechanical support to prevent loosening.
