Harting módulo 09330244735, módulo conector de uma peça

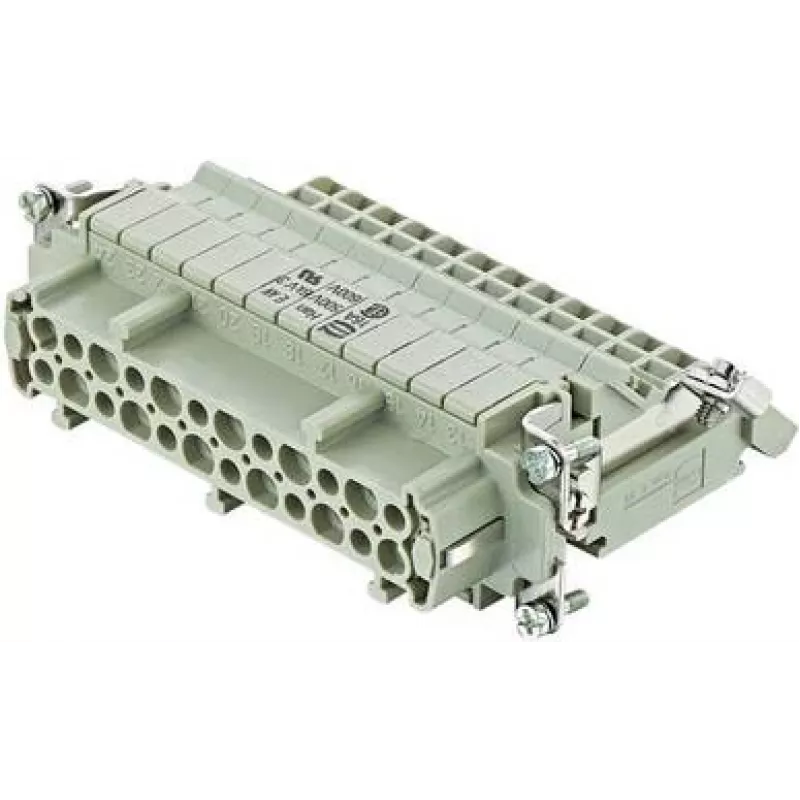

Harting insert 09330244735, single-piece connector insert is a one-piece contact carrier intended for installation in compatible Harting connector housings. It provides a compact, stable interface for electrical contacts used in industrial and automation environments. Supplied as a single molded insert, the component simplifies replacement and maintenance of connector assemblies and ensures correct alignment of contacts for signal and power transmission.

Advantages

The single-piece design reduces assembly time and the risk of incorrect fitting compared with multi-part inserts. Molded construction offers consistent contact positioning and mechanical stability inside the housing, improving connection reliability under vibration and repeated mating cycles. Being a manufacturer-matched insert, it supports correct mating and retention forces when used with compatible Harting housings.

Suitable for

• Replacement of worn or damaged contact inserts in Harting connector housings
• Assembly of industrial connectors for signal or power distribution
• Automation equipment where robust, repeatable electrical connections are required
• Field servicing and maintenance of machine cabling systems

Key specifications

• Form factor: single-piece molded connector insert
• Compatibility: designed for use with matching Harting connector housings
• Function: carries electrical contacts for signal and/or power connections
• Mechanical characteristics: engineered for stable positioning and retention within the housing
• Application environment: intended for industrial and automation settings

How to use

Turn off power to the connector circuit before beginning work. Remove the connector housing cover or hood according to the housing manufacturer instructions, then extract the old insert if present. Orient the single-piece insert so that contact cavities align with the housing guide features and press it into the housing until it seats with audible or tactile engagement. After insertion, verify that contacts are accessible for wiring or mate with the complementary connector as required. Reassemble the housing and restore power only after visual and mechanical checks confirm correct installation.

Recommendations

Use the insert only in compatible Harting housings and with contacts or cable assemblies specified for the chosen application. Inspect contact surfaces and the housing guide features for wear or contamination before installation. For high-vibration or high-current applications, verify that mating connectors and cable terminations are rated accordingly and perform periodic checks as part of maintenance procedures.
