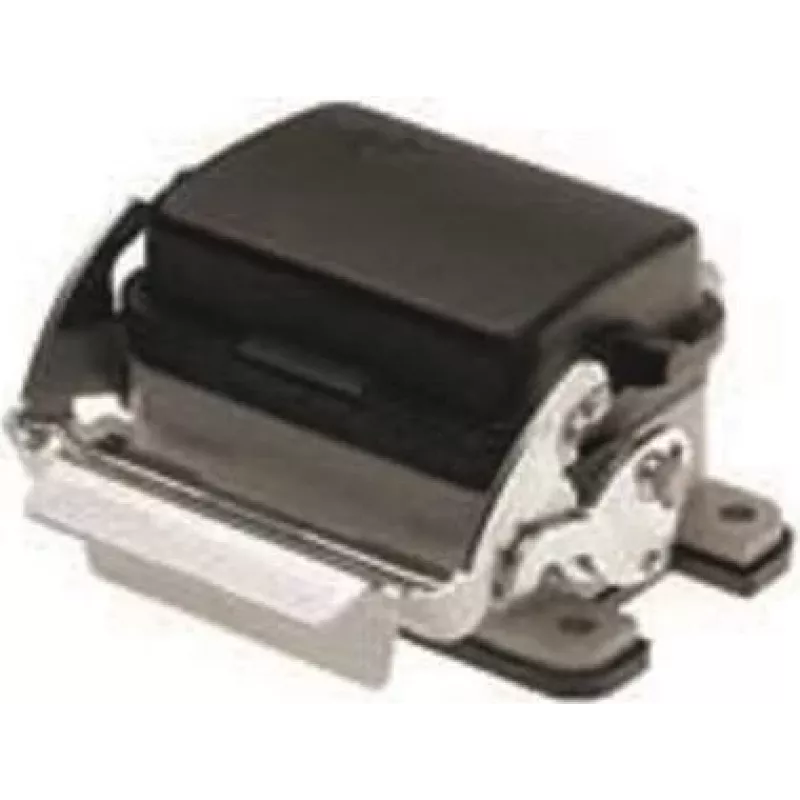

ILME CVI06LSP Caixa de montagem em V tamanho 44.27, alavanca única, tampa de mola, alumínio fundido, Cinzento

With an IP66 protection rating, the ILME CVI06LSP surface mounting housing ensures reliable sealing in demanding industrial environments. Crafted from die-cast aluminium alloy and finished in grey (RAL 7040), it offers robust corrosion resistance and a wide operating temperature range from -40°C to +125°C.

Overview

The ILME CVI06LSP is a surface mounting housing from the V-Type (CVI series), sized 44.27, designed to accommodate compatible 44.27 size inserts. Its single lever locking mechanism and spring cover provide secure closure and easy access. The housing features one M20 cable entry thread and is powder coated for durability.

What stands out

• Die-cast aluminium alloy body with powder coating for corrosion resistance
• IP66 protection against dust and water jets
• Wide temperature range: -40°C to +125°C
• Single lever with galvanized steel for secure locking
• NBR gasket ensures reliable sealing
• Compatible with ILME 44.27 size inserts

Technical details

• Housing type: Surface mounting housing
• Series: V-Type (CVI series)
• Size: 44.27
• Material: Die-cast aluminium alloy
• Locking mechanism: Single lever
• Cover type: Spring cover
• Number of levers: 1
• Lever material: Galvanized steel
• Gasket material: NBR
• Protection rating: IP66
• Temperature range: -40°C to +125°C
• Colour: Grey (RAL 7040)
• Cable entry thread: M20 (1x)
• Surface treatment: Powder coated
• Mounting type: Surface mount
• Corrosion resistance: Yes
• RoHS compliance: Yes
• REACH compliance: Yes

Our verdict

A rugged and reliable housing for industrial connectivity, offering excellent protection and compatibility with ILME inserts.
