ILME CSHM10 inserto macho 10P+PE prateado SQUICH 16A 500V tamanho 57.27

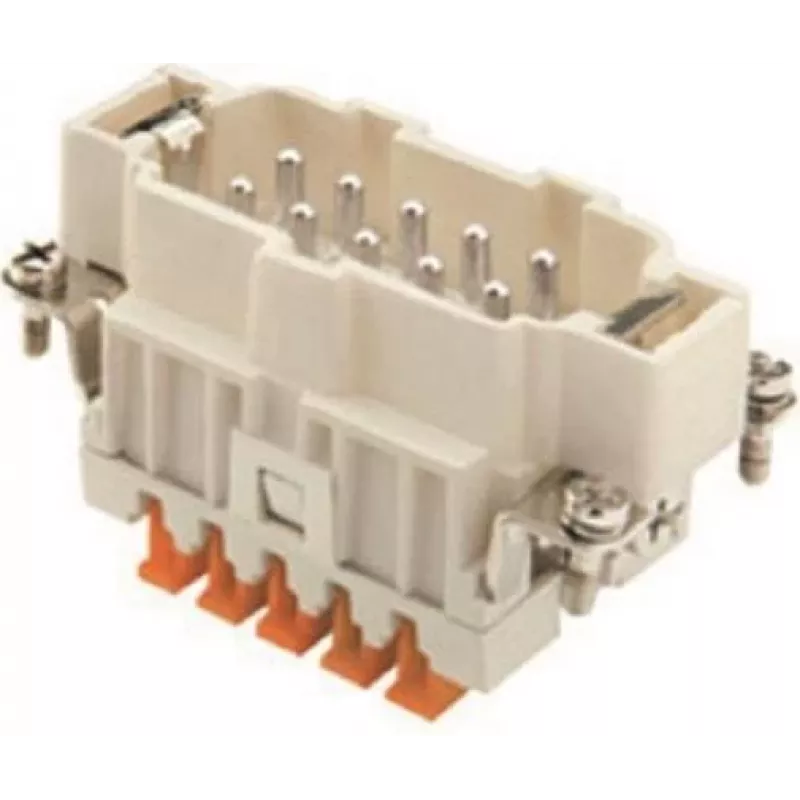

Industrial connectors often require frequent wiring changes, but traditional screw terminals slow down installation and increase the risk of loose connections over time. The ILME CSHM10 male insert solves this with SQUICH spring-cage termination: simply push in the stripped wire for a secure, vibration-proof, tool-less connection. This 10-pole plus protective earth insert is built for demanding 16 A / 500 V applications, with silver-plated contacts for reliable conductivity and a compact size 57.27 housing.

Who is it for

Electrical panel builders, machine OEMs, and maintenance technicians who need a high-density, quick-connect rectangular connector insert for control and power circuits. It is especially valuable where wiring time is critical or where connections must withstand vibration.

Main features

• SQUICH spring-cage termination: tool-less, fast, and secure wire connection
• 10 poles + protective earth (PE) for safe power distribution
• Rated 16 A / 500 V, suitable for industrial control and auxiliary circuits
• Silver-plated copper alloy contacts for low contact resistance and long life
• Compact size 57.27 housing fits standard ILME enclosures and hoods
• Wide wire range: 0.14 mm² to 2.5 mm² (AWG 26 to 14)
• High mating cycles (≥500) and wide temperature range (-40°C to +125°C)

Specifications

• Product type: Male insert (pin insert)
• Series: CSHM
• Number of poles: 10 + PE
• Rated current: 16 A
• Rated voltage: 500 V
• Impulse withstand voltage: 6 kV
• Wire cross-section: 0.14–2.5 mm² (AWG 26–14)
• Contact material: Copper alloy, silver plated
• Housing size: 57.27
• Operating temperature: -40°C to +125°C
• Flammability rating: UL 94 V-0
• Mating cycles: ≥500
• Pollution degree: 3
• Overvoltage category: III
• Insulation resistance: ≥10 GΩ
• Contact resistance: ≤1 mΩ

Tips

For a complete connector, pair this male insert with a matching female insert of the same series and size, along with a compatible hood and housing. Use a SQUICH release tool or a small flat screwdriver to remove wires when re-terminating. Ensure wires are stripped to the recommended length for a reliable gas-tight connection.
