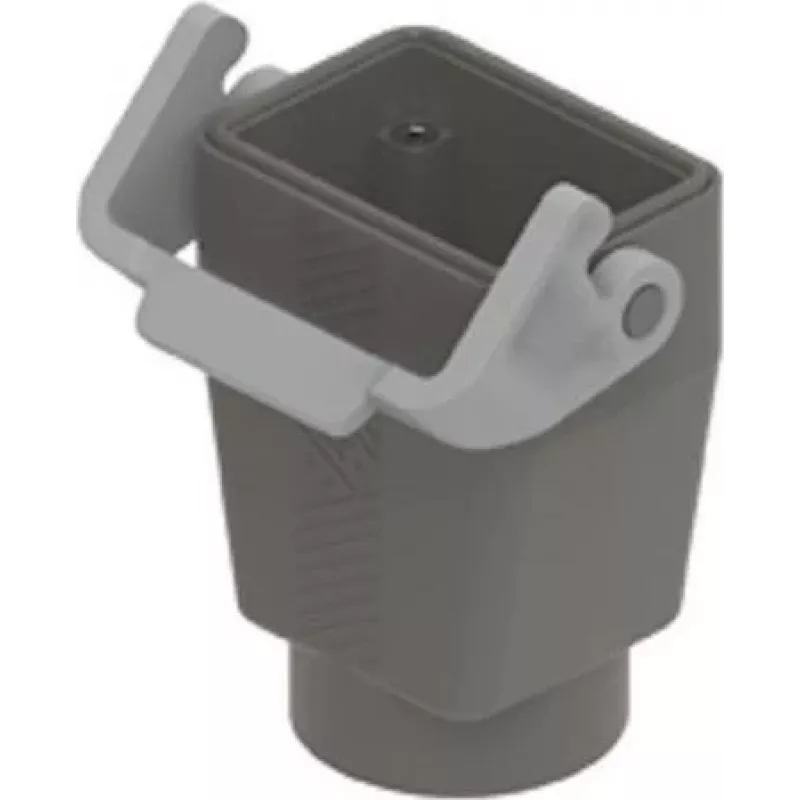

ILME TMAV06LG25 Caixa de acoplamento em T de perfil alto, tamanho 6B, alavanca única, entrada reta M25, Cinzento

Industrial connector installations need a robust enclosure that protects inserts from dust, moisture and mechanical stress. The ILME TMAV06LG25 high-profile T-type coupling housing provides that protection in a compact size 6B format. Its single lever locking mechanism secures the connection, while the straight M25 cable entry allows clean cable routing.

Who is it for

This housing is for panel builders, machine integrators and maintenance technicians who assemble heavy-duty rectangular connectors in industrial environments. It suits applications where a side entry with a top lever is required.

Main features

• High-profile T-type coupling housing for size 6B inserts
• Single lever locking for secure mating
• Straight cable entry with M25 thread
• Die-cast aluminum body with grey powder coating (RAL 7037)
• IP65 protection when mated and locked
• Temperature range -40°C to +125°C

Specifications

• Series: TMAV
• Size: 6B (44.27)
• Profile: High
• Locking: Single lever
• Cable entry: Straight, M25
• Material: Die-cast aluminum
• Surface: Powder coated, grey RAL 7037
• Gasket material: NBR
• Compatibility: 6-pole inserts, size 44.27
• Mounting: Cable mount / free hanging
• RoHS compliant
• REACH compliant

Tips

Pair with a matching ILME 6-pole insert and M25 cable gland to complete the assembly. Ensure the lever is fully closed to achieve the IP65 rating.
