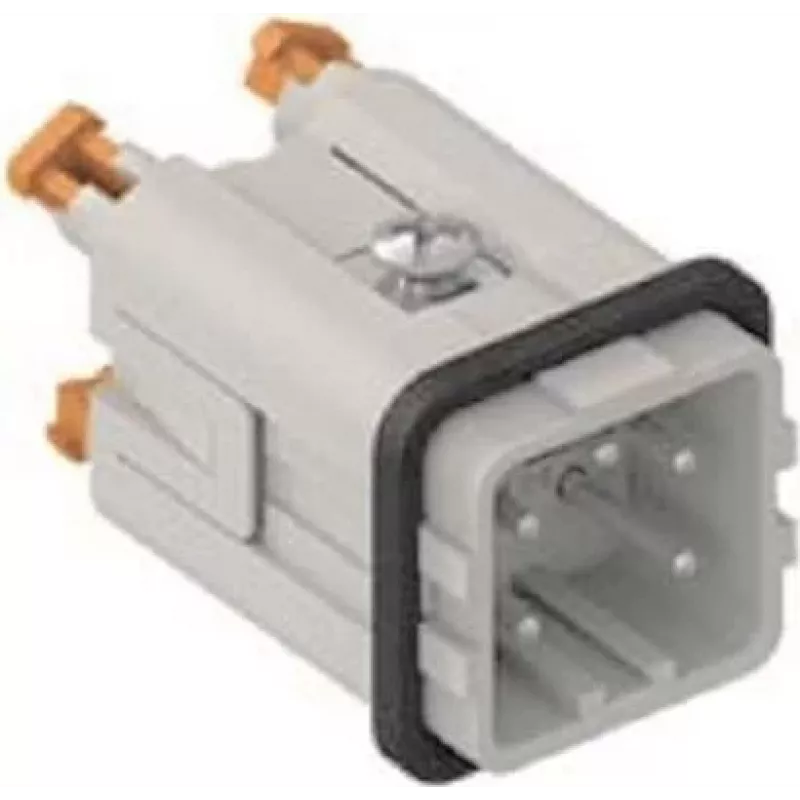

Módulo macho ILME CKSHM04 SQUICH 4P+PE 10A 400V contactos prateados tamanho 21.21

Tool-less spring-cage termination with silver-plated contacts makes the ILME CKSHM04 male insert a standout for industrial power and signal connections. Rated for 10 A at 400 V, it delivers reliable performance in a compact 21.21 size.

Overview

The ILME CKSHM04 is a male insert from the SQUICH series, featuring 4 poles plus protective earth (PE). It uses the innovative SQUICH termination method, which allows for quick and secure wire connections without special tools. The contacts are silver-plated copper alloy, ensuring excellent conductivity and corrosion resistance. The insert is designed to fit ILME heavy-duty connector housings of size 21.21, making it suitable for a wide range of industrial applications.

What stands out

• Tool-less SQUICH spring-cage termination for fast installation
• Silver-plated contacts for superior electrical performance
• Compact size 21.21 with 4+PE configuration
• Rated for 10 A and 400 V, ideal for industrial power/signal

Technical details

• Product type: Male insert
• Connector series: SQUICH
• Number of poles: 4
• Protective earth (PE) contact: Yes
• Contact gender: Male (pin)
• Rated current: 10 A
• Rated voltage: 400 V
• Termination method: SQUICH (tool-less spring-cage)
• Contact plating: Silver
• Insert size: Gr. 21.21 (ILME standard)
• Housing compatibility: ILME heavy-duty connector housings (size 21.21)
• Contact material: Copper alloy
• Insulation material: Self-extinguishing thermoplastic
• Application: Industrial power/signal connections

Our verdict

The ILME CKSHM04 combines tool-less convenience with robust electrical ratings, making it a reliable choice for demanding industrial environments.
