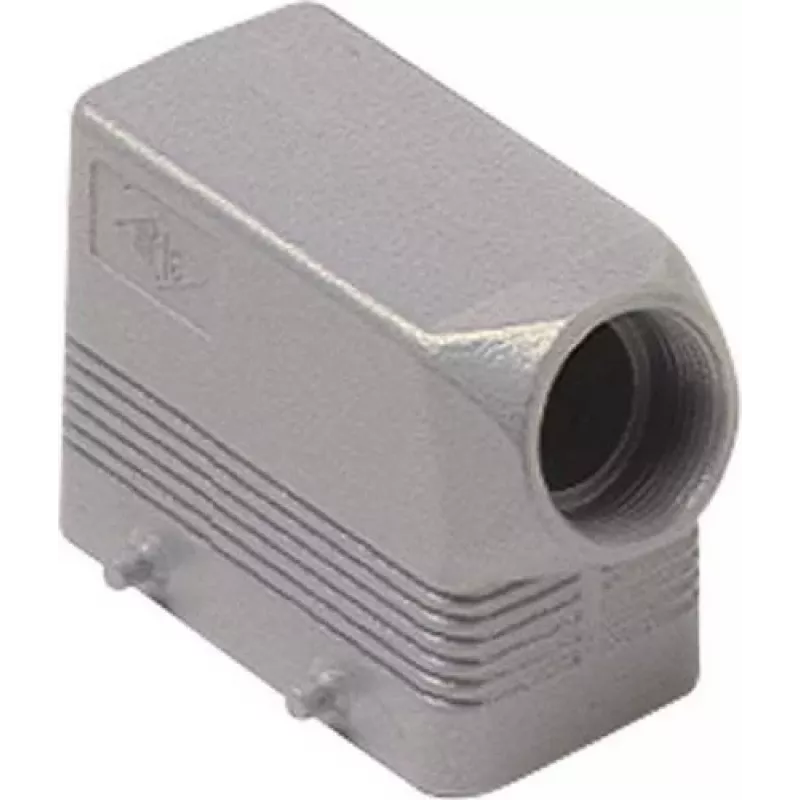

ILME MHO10.20 caixa com entrada lateral tamanho 57.27 alumínio fundido cinzento fecho de 4 parafusos M20

Industrial hood housing for heavy-duty connectors, offering a robust die-cast aluminium body with side cable entry and secure 4-screw locking for reliable connections in demanding environments.

Advantages

Die-cast aluminium alloy construction with powder coating provides excellent mechanical strength and corrosion resistance. The side entry design with M20 thread allows flexible cable routing. Four-screw locking ensures a secure, vibration-resistant connection. NBR gasket maintains sealing integrity. Compatible with ILME '3A' series inserts.

Suitable for

• Industrial machinery and equipment
• Automation systems
• Outdoor applications requiring IP65/IP66 protection when mated
• Harsh environments with temperature extremes from -40°C to +125°C

Key specifications

• Housing size: 57.27 (ILME '3A')
• Material: Die-cast aluminium alloy, powder coated grey
• Cable entry: 1 x side entry, M20 thread
• Locking: 4-screw
• Operating temperature: -40°C to +125°C
• Gasket material: NBR

Recommendations

Pair with ILME '3A' series inserts and appropriate cable glands for a complete, sealed connector solution in industrial settings.
