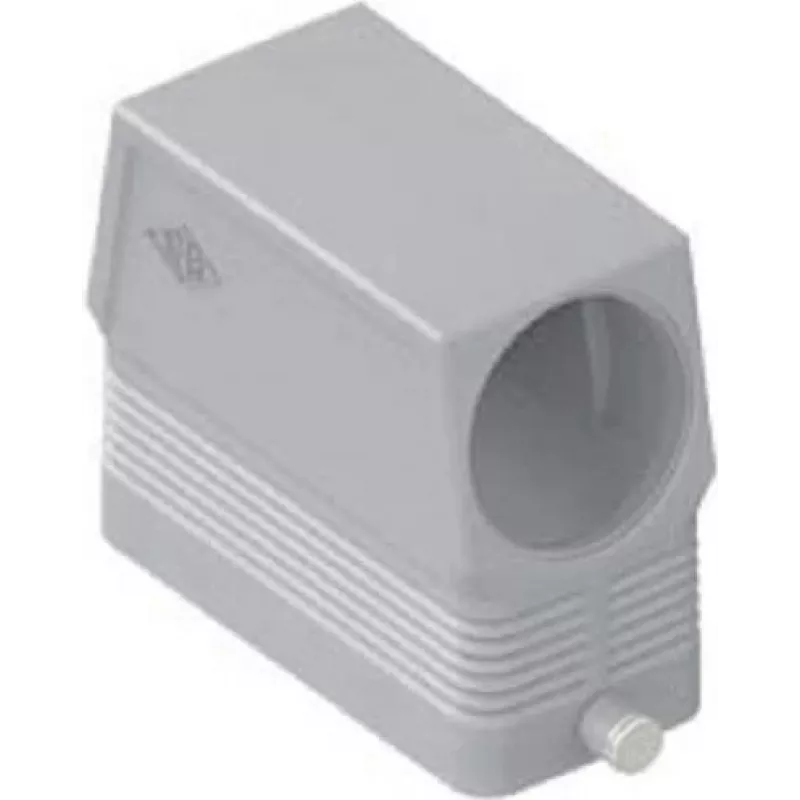

ILME MFO16L40 caixa de cabo de perfil alto, tamanho 77.27, entrada lateral M40, 2 alavancas, alumínio fundido, cinzento

Industrial connectors need robust protection from dust, moisture, and mechanical stress. The ILME MFO16L40 high profile hood housing provides a secure enclosure for 16-pole inserts, ensuring reliable connections in demanding environments.

Who is it for

This hood is intended for panel builders, machine manufacturers, and maintenance technicians who require a durable housing for rectangular connectors in industrial machinery, control cabinets, and automation systems.

Main features

• High profile construction for ample wiring space
• Side cable entry with M40 threaded opening
• Two locking levers for secure mating
• Die-cast aluminium alloy body with powder coating
• Compatible with 16-pole inserts

Specifications

• Housing series: MFO
• Housing size: 77.27 (16-pole)
• Construction profile: High
• Cable entry type: Side
• Number of cable entries: 1
• Cable entry thread size: M40
• Locking mechanism: 2 levers
• Material: Die-cast aluminium alloy
• Surface treatment: Powder coated
• Colour: Grey (RAL 7037)
• Protection rating: IP65 when mated
• Operating temperature range: -40°C to +125°C
• RoHS compliant: Yes

Tips

Ensure the mating insert and gasket are correctly installed to maintain the IP65 protection rating. Use a cable gland suitable for the M40 thread to secure the cable entry.
