InLine 92501B Conector de cabos bloco de terminais / D-Sub 9 preto, verde

InLine 92501B Conector de cabos bloco de terminais / D-Sub 9 preto, verde
InLine 92501B Conector de cabos bloco de terminais / D-Sub 9 preto, verde
InLine 92501B Conector de cabos bloco de terminais / D-Sub 9 preto, verde
InLine 92501B Conector de cabos bloco de terminais / D-Sub 9 preto, verde
InLine 92501B Conector de cabos bloco de terminais / D-Sub 9 preto, verde
InLine 92501B Conector de cabos bloco de terminais / D-Sub 9 preto, verde
9,88 €
PDF
PDF
Stock 50 Código 1732228 Modelo 92501B Garantia 3 anos

Envios e devoluções

Entrega prevista quinta-feira, 3 de dezembro
Receberá atualizações através do nosso sistema de seguimento detalhado
Opções de pagamento
Cartão bancárioVisaMastercardPayPalApple PayGoogle PayTransferência bancária

Faça uma pergunta – o assistente IA responde de imediato.

Descrição

Time savings during installation: The spring-loaded terminals enable quick wiring with a flathead screwdriver (≤ 2.5 mm) – no soldering or crimping required.
Stable connection thanks to screw lock:The D-Sub 9 connector is equipped with an integrated screw lock and ensures a secure mechanical connection to the matching socket – even in the event of vibration or movement.
Versatile use in industry:Particularly suitable for automation, machine and plant engineering, service and test setups, and control cabinet construction.
Compact design:Saves space on DIN rails or in tight enclosures – ideal for integration into existing systems.
High signal quality:An insulation resistance of ≥ 10 MΩ and a rated current of 0.8 A per pin ensure reliable, low-interference signal transmission.

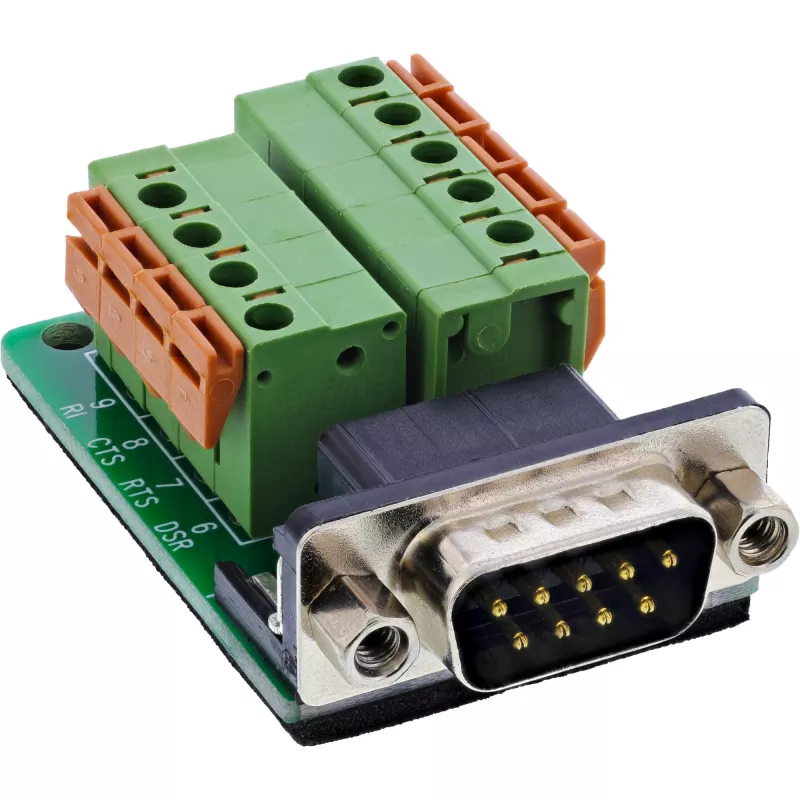

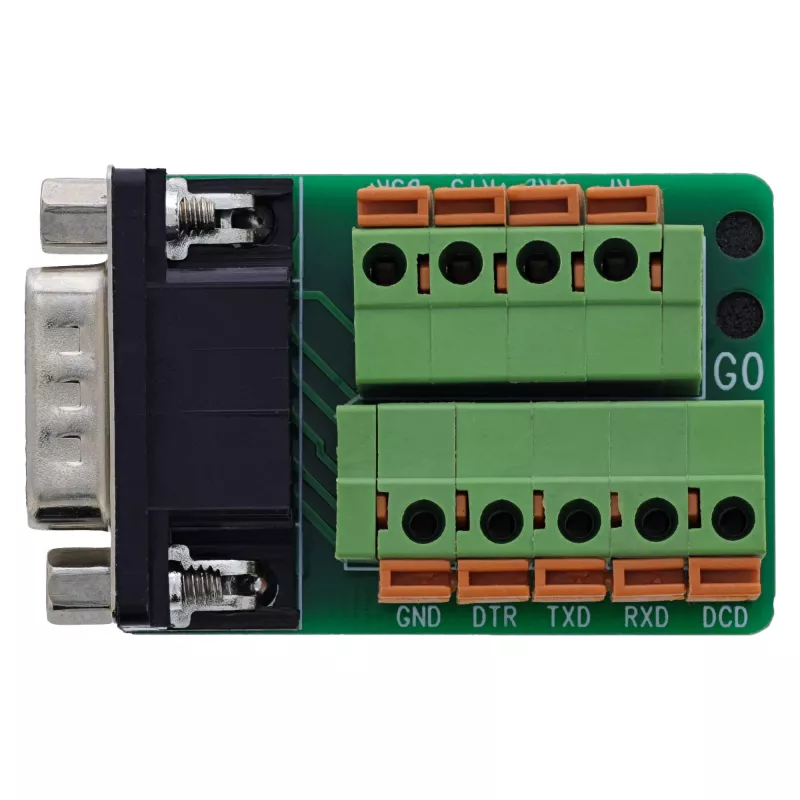

The InLine® terminal block with D-Sub 9 connectorand integrated spring-cage terminal technology was specially developed for industrial applications that require serial signal transmission, e.g., via RS232. The tool-assisted spring-cage terminal technology allows quick and secure connection of individual wires without soldering or crimping. The connection range supports 14–22 AWG and can be conveniently operated with a flat-blade screwdriver ≤ 2.5 mm.
Thanks to the screw lock on the connector, a stable connection with mating sockets is guaranteed – even with movement or vibration. The compact design with EVA insulation on the underside protects against conductive surfaces during installation and makes the module ideal for use in control systems, machines, and test environments.

D-Sub 9 plug:With integrated screw lock
Spring terminals:5 mm pitch
Connection range:14–22 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:0.8 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:= 10 MΩ @ 300 V DC
Operating temperature:–10°C to +70°C
Insulation layer:EVA insulation on underside
Dimensions:approx. 51 × 31.5 × 18 mm (L × W × H)

InLine 92501B. Connector(s): Terminal block / D-Sub 9, Product colour: Black, Green, Connector gender: Male/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 31 x 51 x 18 mm, Weight: 23 g, Width: 31 mm. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 165 mm. Country of origin: Taiwan

Destaques principais
  • Terminal block / D-Sub 9 Male/Female
  • Black, Green
  • 1 pc(s)

Especificações

Especificações
Altura
18 mm
Altura da embalagem
20 mm
Certificados de conformidade
RoHS, marca TÜV
Conectores
Bloco de terminais / D-Sub 9
Cor do produto
Preto, verde
Corrente
0.8 A
Dimensões (LxAxP)
31 x 51 x 18 mm
Género do conector
Macho/fêmea
Largura
31 mm
Largura da embalagem
100 mm
País de origem
Taiwan
Peso
23 g
Peso da embalagem
26 g
Profundidade
51 mm
Profundidade da embalagem
165 mm
Quantidade por embalagem
1 pc(s)
Resistência de contacto
10 mΩ
Rigidez dielétrica
300 V
Temperatura de funcionamento (T-T)
-10 - 70 °C
Tensão
100 V
Tipo de embalagem
Saco de plástico
Volume da embalagem
100 cm³
