InLine 92504A Conector de cabos USB-A / bloco de terminais, 5 pinos preto, verde

Time savings during installation: Quick wiring via screw terminals for 16–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Clear terminal assignment & secure contact: 5-pin terminals with pressure plate, clearly labeled 1: –, 2: D+, 3: D–, 4: +, 5: S (shield) – ideal for service, testing, and prototyping.
Versatile industrial use: For quick connection of USB 2.0 signals in test setups, laboratories, commissioning, or troubleshooting – no soldering required.
Compact design: Only approx. 50 mm total length; can also be integrated into tight setups or adapter strips to save space.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load and in industrial environments.

The InLine® USB-A terminal block adapter offers a practical solution for transferring USB-2.0 signals to a 5-pin terminal block without soldering or cable connection. Typical applications can be found in the areas of service, test setups, development, or prototyping.

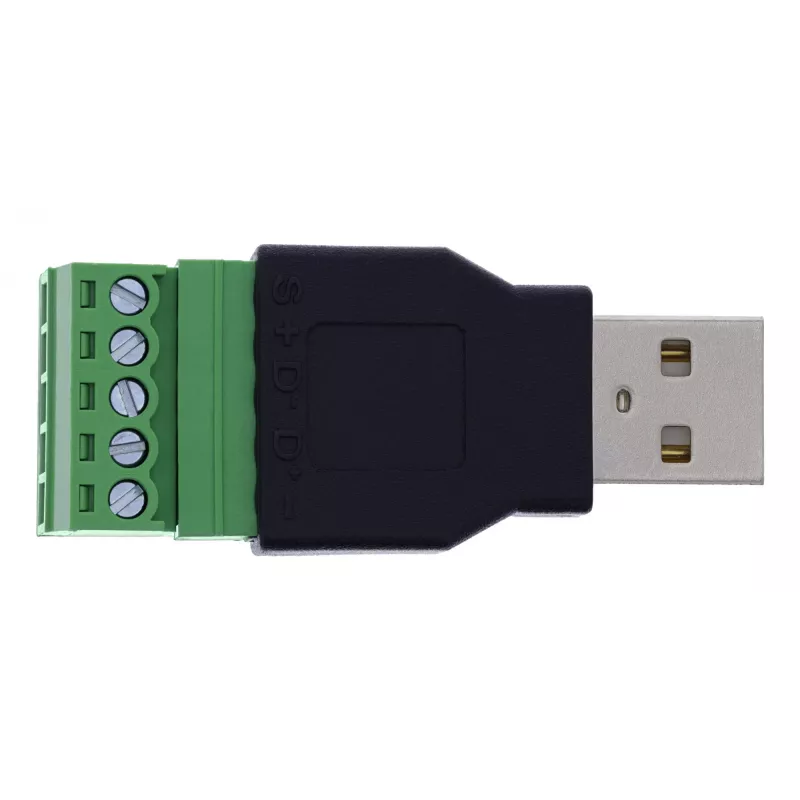

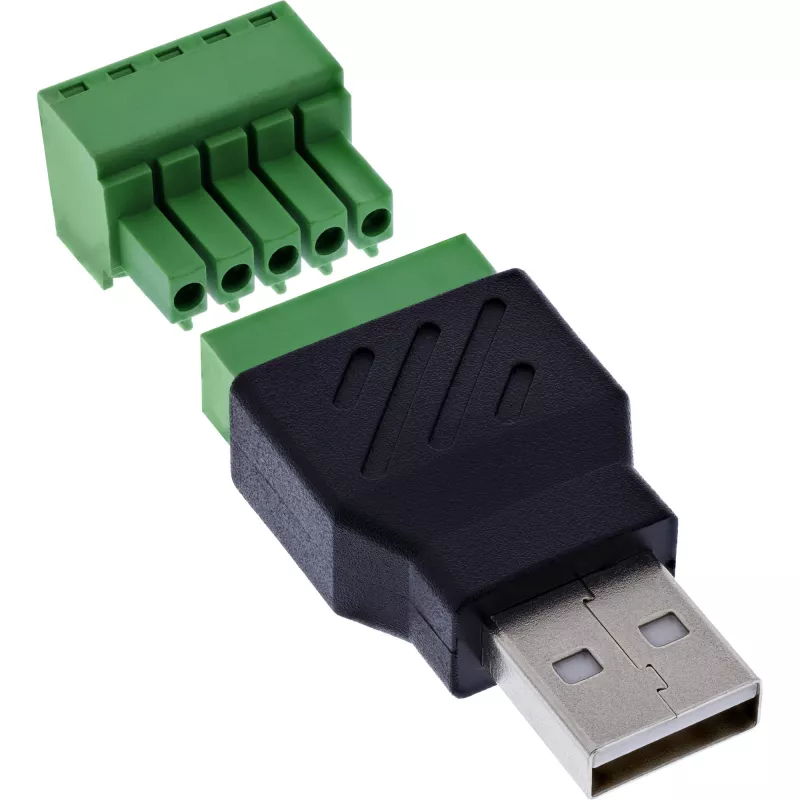

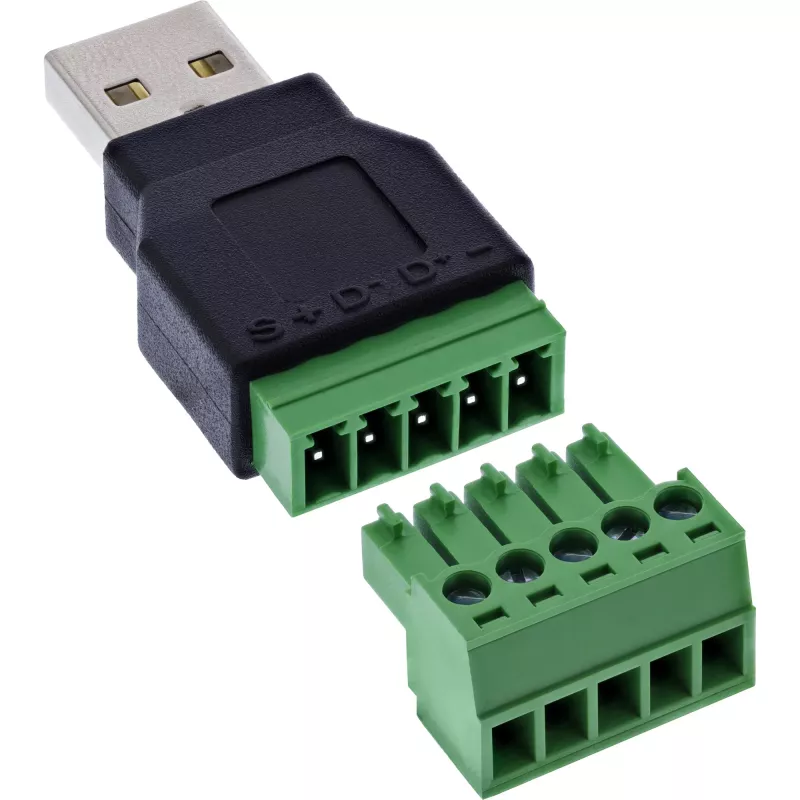

The standard-size USB-A connector is directly connected to a 5-pin screw terminal block. The clear labeling of the terminals – 1: Ground (–), 2: D+, 3: D–, 4: Voltage (+), 5: Shield (S) – enables easy and reliable signal assignment. The terminal connections with a 5.0 mm grid dimension support single wires in the 16–26 AWG range.
Wiring is carried out with the aid of a flat-head screwdriver. Thanks to its compact housing, the adapter is particularly space-saving – e.g. in test equipment, mobile measuring stations, or in laboratories.

USB interface:USB-A 2.0, plug
Number of pins / assignment:5 terminals / 1: – / 2: D+ / 3: D– / 4: + / 5: S
Connection technology:Screw terminal with pressure plate, 5.0 mm pitch
Connection range:16–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:0.7 A per pin
USB operating voltage (VBUS):5 V DC
Test voltage (insulation resistance):300 V AC / 1 minute
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C
Insulation layer:EVA insulation on underside
Dimensions:approx. 50 × 21 × 14 mm (L × W × H)

InLine 92504A. Connector(s): USB-A / Terminal block, 5-pin, Product colour: Black, Green, Connector gender: Male/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 21 x 50 x 14 mm, Weight: 11 g, Width: 21 mm. Quantity per pack: 1 pc(s), Package width: 70 mm, Package depth: 135 mm. Country of origin: Taiwan

How to use

Insert the USB‑A plug into the host or device USB‑A receptacle. Strip and prepare individual wires (16–26 AWG), insert each conductor into the matching numbered terminal (1 through 5) and tighten the screw using a flat‑head screwdriver (≤ 2.5 mm) until secure. Use the clear terminal labeling to assign ground, D+, D–, VBUS and shield correctly. The adapter enables fast connection and disconnection for testing or temporary setups without soldering.

Recommendations

For reliable long‑term operation, ensure wire cross‑section is within the specified 16–26 AWG range, tighten screws to achieve secure contact, avoid exposing the adapter to temperatures outside –20 °C to +105 °C, and limit per‑pin current to 0.7 A. Use the adapter primarily for USB‑2.0 signalling and temporary or test applications rather than permanent high‑current power delivery.
