InLine 92504I Conector de cabos USB-B / bloco de terminais, 5 polos, preto, verde

Time savings during installation:Quick wiring via screw terminals for 16–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Integrated USB cable for flexible applications: The 1-meter connection cable with USB-B plug enables direct connection to devices – without separate accessories or soldering.

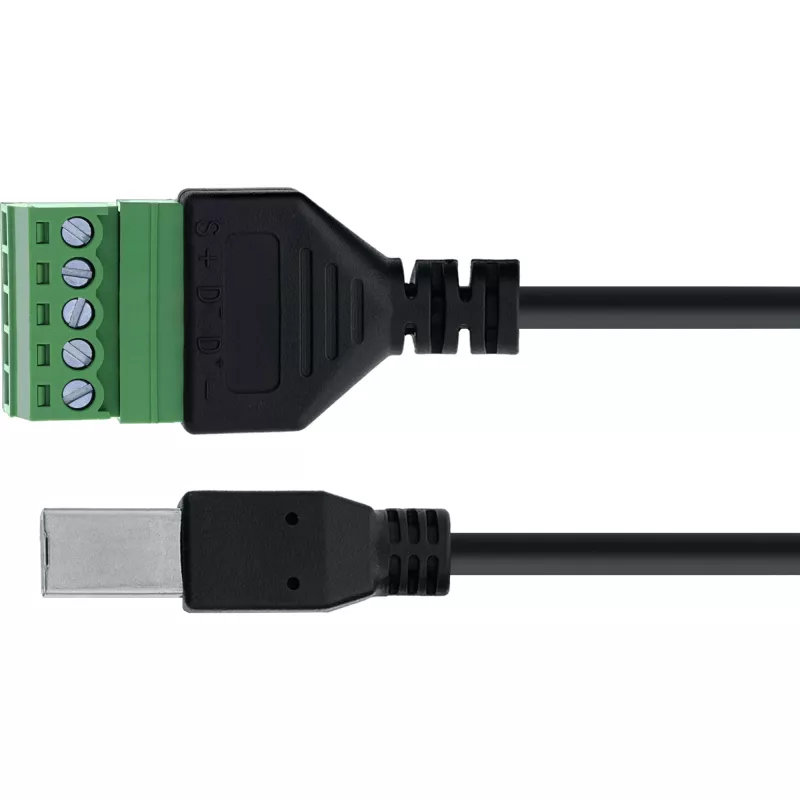

Clear terminal assignment & secure contact: 5-pin terminals with pressure plate, clearly labeled 1: –, 2: D+, 3: D–, 4: +, 5: S (shield) – ideal for service, testing, and prototyping.
Versatile use in industry:For fast connection of USB 2.0 signals in test setups, laboratories, commissioning, or troubleshooting – without soldering.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load and in industrial environments.

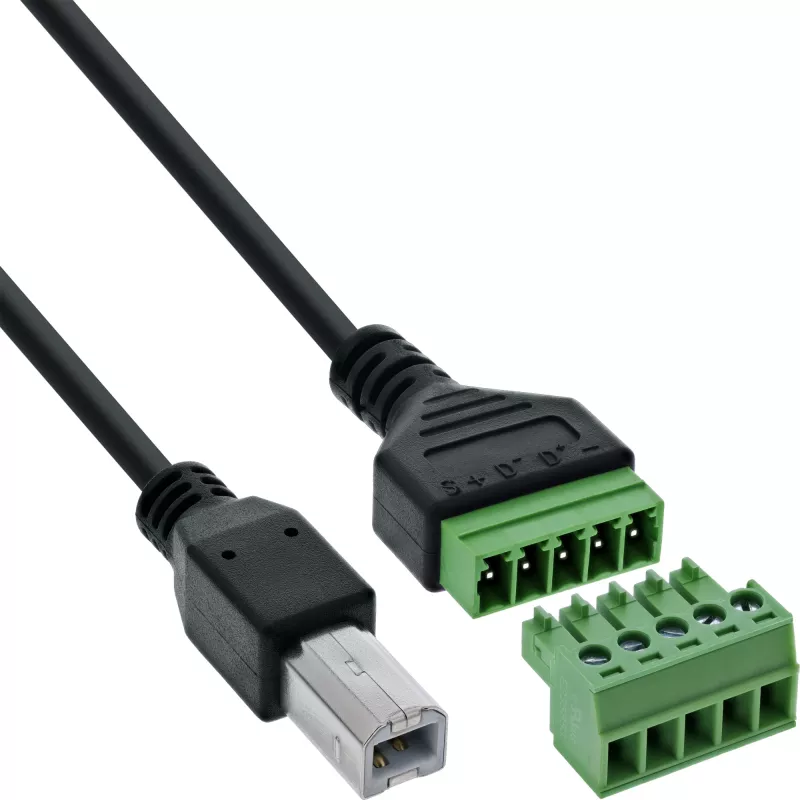

The InLine® USB‑B 2.0 terminal block adapter with plug and permanently integrated connection cable combines a stable USB connection with the flexibility of open signal wiring. The USB‑B plug is directly connected to a 5‑pin screw terminal block – ideal for test benches, diagnostic devices, or industrial systems.
The screw terminals are clearly labeled (1: ground, 2: D+, 3: D–, 4: voltage, 5: shield) and support wires in the 16–26 AWG range. Tool-assisted wiring is performed with a flat-blade screwdriver ≤ 2.5 mm.
The approx. 1 m long USB cable saves wiring time and allows immediate use – e.g., in mobile test stations or development laboratories. An EVA insulating layer on the underside provides additional protection when mounting on conductive surfaces.

USB interface:USB‑B 2.0, plug
Cable length:approx. 1 m (PVC, permanently integrated)
Number of pins / assignment:5 terminals / 1: – / 2: D+ / 3: D– / 4: + / 5: S
Connection technology:Screw terminal with pressure plate, 5.0 mm grid
Connection range:16–26 AWG
Actuation:With flat-head screwdriver ≤ 2.5 mm
Rated current:0.7 A per pin
USB operating voltage (VBUS):5 V DC
Test voltage (insulation resistance):300 V AC / 1 minute
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C
Insulation layer:EVA insulation on underside
Dimensions:Terminal block approx. 50 × 21.2 × 18.4 mm (L × W × H)

InLine 92504I. Connector(s): USB-B / Terminal block, 5-pin, Product colour: Black, Green, Connector gender: Male/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 20 x 1000 x 11 mm, Weight: 34 g, Cable length: 1 m. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 165 mm. Country of origin: Taiwan

How to use

Connect the USB‑B plug to the host or device USB‑B port. Prepare wires in the 16–26 AWG range, insert each conductor into the matching labeled terminal (1: ground, 2: D+, 3: D–, 4: VBUS, 5: shield) and tighten the screw using a flat-head screwdriver (≤ 2.5 mm) until secure. Ensure correct polarity for data and power lines before applying voltage. When mounting on metal or conductive surfaces, place the EVA-insulated side down to reduce risk of short circuits.

Recommendations

For stable, long-term installations consider using fixed USB connectors or professionally terminated cables; use this InLine adapter primarily for testing, diagnostics, prototyping and temporary connections where rapid, solder-free access to USB signals is required.
