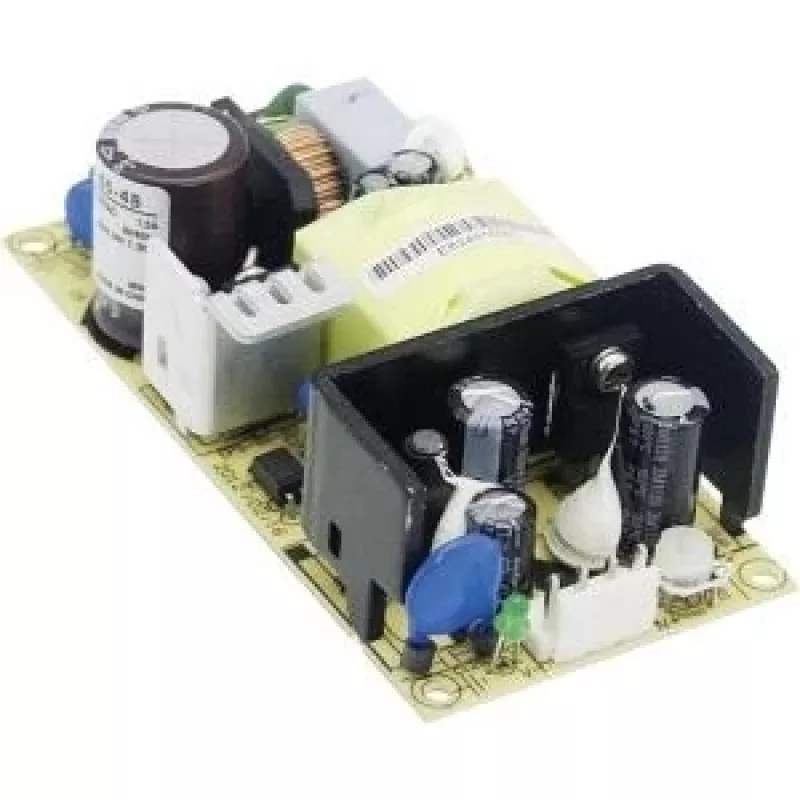

MEAN WELL EPS-65-12 Fonte de alimentação AC/DC open-frame 65W 12V 5,42A

Delivering 65W of continuous power with up to 90% efficiency, the MEAN WELL EPS-65-12 is a compact open frame AC/DC power supply engineered for reliable operation in industrial and commercial applications. Its wide input range of 80~264VAC makes it suitable for global use, while the 12V DC output at 5.42A provides stable power for a variety of devices.

Overview

The EPS-65-12 is part of MEAN WELL's EPS-65 series, known for its high performance and robust design. This power supply features a low no-load power consumption of less than 0.1W, contributing to energy savings in standby modes. With a free air convection cooling system, it operates silently without the need for a fan, making it ideal for noise-sensitive environments. The unit is protected against short circuit, overload, over voltage, and over temperature, ensuring long-term reliability.

What stands out

• High efficiency up to 90% reduces energy waste and heat generation.
• Wide input voltage range (80~264VAC) for worldwide compatibility.
• Compact open frame design with dimensions of 101.6 x 50.8 x 29 mm.
• Comprehensive protections: short circuit, overload, over voltage, over temperature.
• Low no-load power consumption (<0.1W) meets energy-saving requirements.
• Complies with international safety standards (UL62368-1, TUV EN62368-1, EAC TP TC 004).
• EMC compliance: EN55032 Class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11.

Technical details

• Output Voltage: 12V DC
• Output Current: 5.42A
• Output Power: 65W
• Input Voltage Range: 80 ~ 264VAC (113 ~ 370VDC)
• Efficiency: Up to 90%
• Ripple & Noise: 120mVp-p
• Isolation Voltage: I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 0.5KVAC
• Operating Temperature: -30 ~ +70°C
• Setup, Rise Time: 500ms, 20ms / 230VAC at full load
• Hold Up Time: 16ms / 230VAC at full load
• Cooling Method: Free air convection
• Form Factor: Open Frame

Our verdict

The MEAN WELL EPS-65-12 is a reliable and efficient power supply that excels in a wide range of applications. Its high efficiency, comprehensive protections, and global certifications make it a solid choice for engineers and system integrators seeking a dependable power solution.
