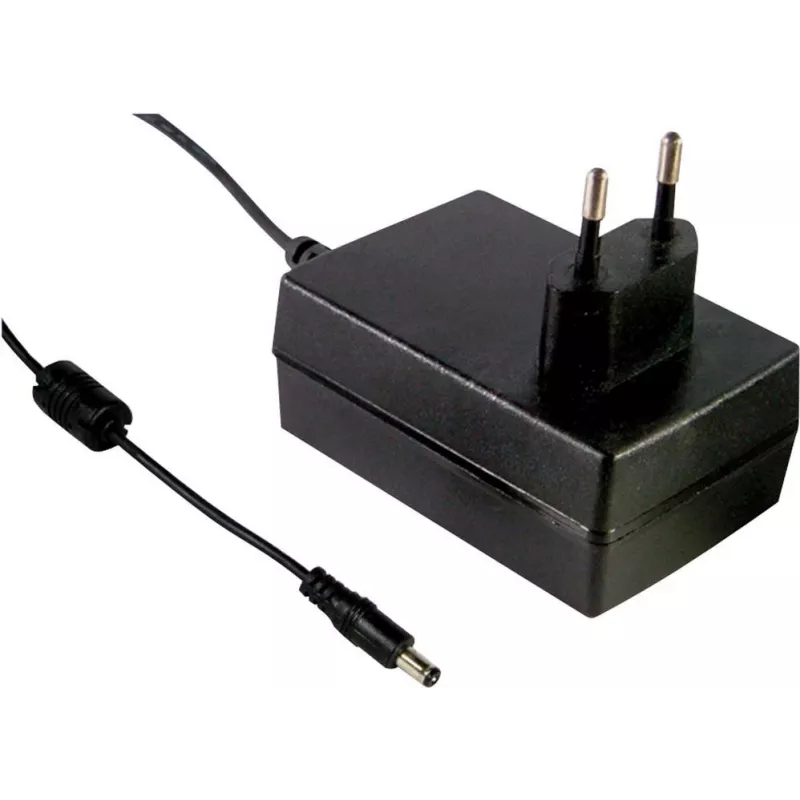

MEAN WELL GSM36E18-P1J Fonte de alimentação AC/DC médica 36W, 18V 2A, entrada IEC320-C8, ficha DC oca 2,1x5,5mm

Medical devices demand power that is not only reliable but also safe for patient and operator alike. The MEAN WELL GSM36E18-P1J addresses this critical need by delivering a fully isolated 18V DC output from any universal AC mains input, with 2xMOPP insulation that meets the stringent IEC 60601-1 medical safety standard. This 36W desktop-style adapter is the dependable heart of your medical, laboratory, or industrial equipment, ensuring continuous operation even in challenging environments.

Who is it for

This power supply is engineered for healthcare equipment manufacturers, laboratory technicians, and industrial system integrators who require a certified, long-life power source. It is ideal for powering patient monitors, diagnostic instruments, portable medical devices, and other sensitive electronics where leakage current must be kept below 100 µA and no-load consumption under 0.1 W.

Main features

• Universal AC input range 80–264 VAC with 47–63 Hz frequency, suitable for worldwide use without switches.
• Stable 18 VDC output at up to 2 A (36 W) with low ripple and noise of only 120 mVp-p.
• High efficiency up to 88% and energy efficiency level VI, reducing heat and energy costs.
• Medical safety approvals: IEC 60601-1 (2xMOPP), UL, cUL, TUV, CB, CE, FCC.
• Class II double insulation, no earth ground required, and leakage current below 100 µA.
• Comprehensive protection: short circuit, overload, and over voltage.
• Wide operating temperature range from -30 °C to +70 °C, with full power up to +40 °C.
• Compact and lightweight desktop enclosure with IEC320-C8 inlet and fixed 2.1 x 5.5 mm DC barrel plug, center positive.
• MTBF over 100,000 hours per MIL-HDBK-217F, ensuring years of trouble-free service.

Specifications

• Input voltage: 80–264 VAC
• Input frequency: 47–63 Hz
• Output voltage: 18 VDC
• Output current: 2 A
• Output power: 36 W
• Efficiency: up to 88%
• No-load power consumption: < 0.1 W
• Ripple & noise: 120 mVp-p
• Leakage current: < 100 µA
• Isolation class: Class II
• Protections: short circuit, overload, over voltage
• Operating temperature: -30 °C to +70 °C
• MTBF: >100,000 hours (MIL-HDBK-217F)
• Input connector: IEC320-C8
• Output connector: DC barrel plug 2.1 x 5.5 mm, center positive
• Certifications: UL, cUL, TUV, CB, CE, FCC
• Energy efficiency level: VI
• Medical safety: IEC 60601-1 (2xMOPP)

Tips

For optimal performance, ensure adequate ventilation around the unit and avoid covering it during operation. When integrating into a medical device, verify that the total system leakage current remains within the limits of your application. The output cable length and connector polarity are fixed; if a different plug is needed, use a suitable adapter that maintains the required isolation and current rating.
