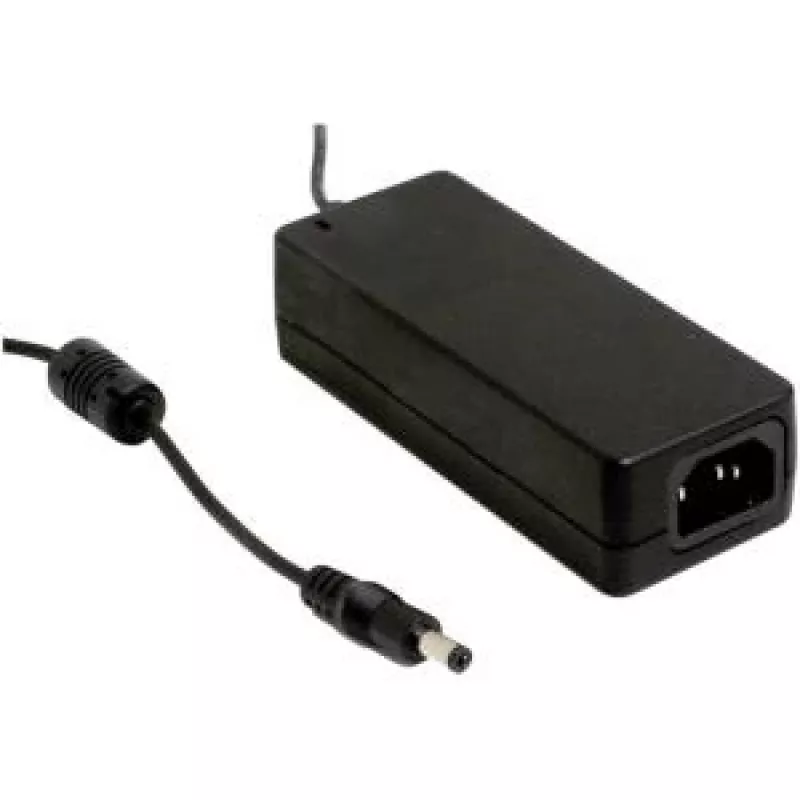

MEAN WELL GSM60A15-P1J Adaptador AC/DC médico 60W 15V 4A com ficha DC 5,5x2,1mm

In a busy hospital ward, a nurse plugs in a vital signs monitor, relying on a steady 15V DC supply that meets strict medical safety standards. The MEAN WELL GSM60A15-P1J delivers exactly that: 60 watts of clean, reliable power through a 5.5 x 2.1 mm DC plug, designed for medical and industrial devices that cannot afford downtime. Its compact desktop form factor and IEC320-C14 inlet make it easy to integrate into existing setups, while the wide input voltage range (80-264 VAC) ensures compatibility with mains power worldwide.

Key specifications

• Output: 15 V DC, 4 A, 60 W max
• Input: 80 - 264 VAC, 47 - 63 Hz
• Efficiency: up to 88.5%
• Medical safety: IEC/EN 60601-1 (2xMOPP)
• Protections: short circuit, overload, over voltage, over temperature
• Operating temperature: -30 to +70 °C
• Ripple & noise: 120 mVp-p
• Isolation: 4000 VAC input to output
• MTBF: over 300,000 hours
• EMC: EN55011 Class B, harmonic current EN61000-3-2 Class C

Why choose it

This power supply is built for critical applications. The 2xMOPP medical certification means it can be used in patient vicinity without additional isolation, reducing system cost and complexity. Its low no-load power consumption (<0.15 W) helps meet energy-efficiency regulations, and the wide temperature range ensures reliable operation even in harsh environments. The standard 5.5 x 2.1 mm DC plug with center positive polarity fits a vast array of devices, eliminating the need for custom connectors.

Ideal use cases

• Medical devices: patient monitors, infusion pumps, diagnostic equipment
• Industrial automation: sensors, controllers, actuators
• Test and measurement instruments
• Telecommunications equipment
• Any 15V DC device requiring a reliable, certified power source

Good to know

The GSM60A15-P1J is part of MEAN WELL's GSM60A series, known for high reliability and long service life. It is fully enclosed in a flame-retardant plastic case, measuring approximately 125 x 50 x 31.5 mm and weighing about 0.4 kg. The unit is RoHS compliant and backed by a 3-year manufacturer's warranty. For integration, it features a standard IEC320-C14 AC inlet, so a country-specific power cord is required (not included).
