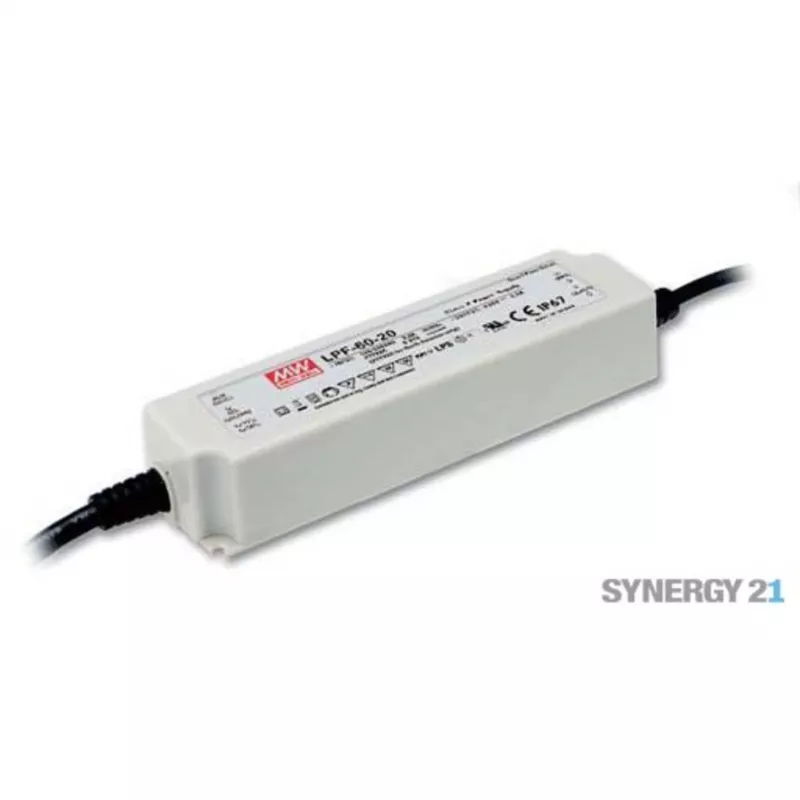

Mean Well LPF-60-36 Fonte de alimentação LED 60W 36V IP67

The Mean Well LPF-60-36 is a high-performance LED power supply designed for indoor and outdoor lighting applications. With a compact plastic case and IP67 rating, it delivers 60W at 36V DC with constant voltage + constant current mode, ensuring reliable and efficient operation. Built-in active PFC and protections against short circuit, overload, over voltage, and over temperature make it a robust choice for demanding environments.

Advantages

High efficiency up to 90% reduces energy loss and heat generation. Wide input voltage range (90-305V AC) ensures compatibility with global mains supplies. IP67 rating allows use in damp or dusty locations. 5-year warranty guarantees long-term reliability.

Suitable for

• LED strip lighting
• LED modules and signs
• Indoor and outdoor lighting fixtures
• Industrial lighting systems

Key specifications

• Output: 36V DC, 1.67A, 60W
• Input: 90-305V AC / 127-431V DC, 47-63 Hz
• Efficiency: 90% (Typ.)
• Power Factor: >0.95 at 230VAC (full load)
• Protection: Short Circuit, Overload, Over Voltage, Over Temperature
• IP Rating: IP67
• Operating Temperature: -40 to +70°C
• Housing: Plastic case, free air convection cooling
• Safety Standards: UL8750, EN61347-1, EN61347-2-13
• Certifications: UL, cUL, TUV, CE, CB, ENEC

Recommendations

For optimal performance, ensure adequate ventilation and do not exceed the rated output power. Suitable for use with constant voltage LED products.
