Módulo conector fêmea BNC DeLOCK Easy 45 81336

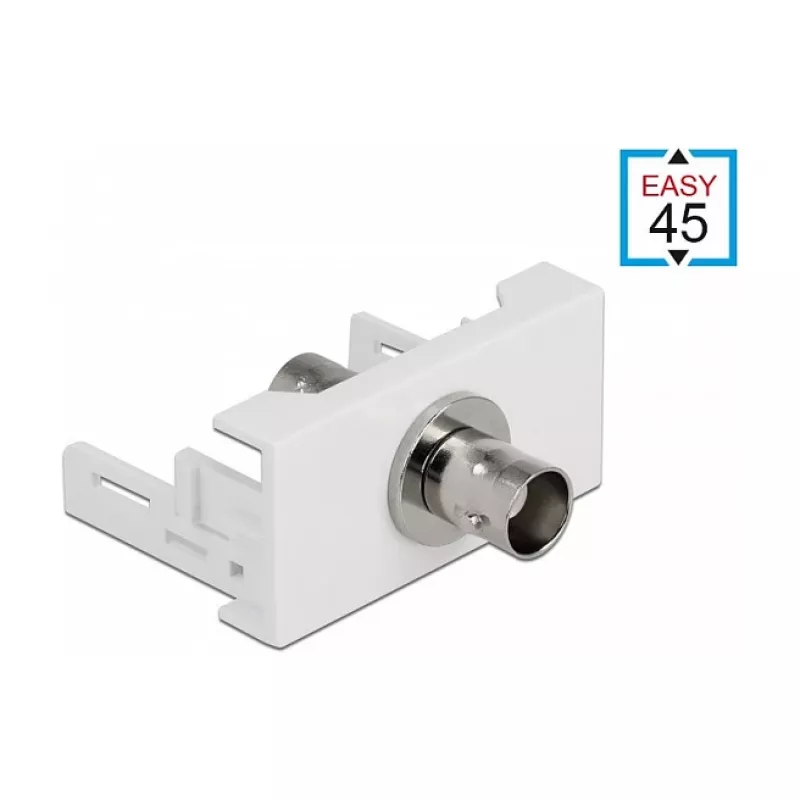

The DeLOCK Easy 45 81336 module provides a BNC female port in a compact 22.5 x 45 mm Easy 45 form factor. It is intended for integration into modular module holders or cable ducts and connects BNC cables securely. The module uses a snap-in mechanism that holds it firmly in place while allowing removal when required.

Advantages

The module offers a standardised Easy 45 footprint for flexible system integration, a BNC female connector for reliable coaxial connections, and a snap-in mounting design for quick installation and removal. Its silver and white housing matches common installation environments and the single-piece packaging simplifies procurement.

Suitable for

• Connecting BNC coaxial cables to AV equipment
• Integration into modular wall plates, patch panels or cable ducts
• Use with cameras, monitors, TV tuners and other BNC-equipped devices

Key specifications

• Brand: DELOCK
• Model / MPN: 81336
• EAN: 4043619813360
• Connector: BNC female
• Form factor: Easy 45 (22.5 x 45 mm)
• Colour: Silver, White
• Packaging: 1 piece (box)

How to use

Push the module into a compatible Easy 45 module holder or cable duct until the snap-in mechanism engages. Connect a BNC male cable connector to the BNC female port by aligning and pressing the push-and-twist coupling until it locks. To remove the module, depress the snap-in retention and pull the module out of the holder.

Recommendations

Use the module only with compatible Easy 45 holders or ducts. Ensure cables are connected and routed without sharp bends and avoid excessive mechanical strain on the connector to maintain reliable signal transmission.
