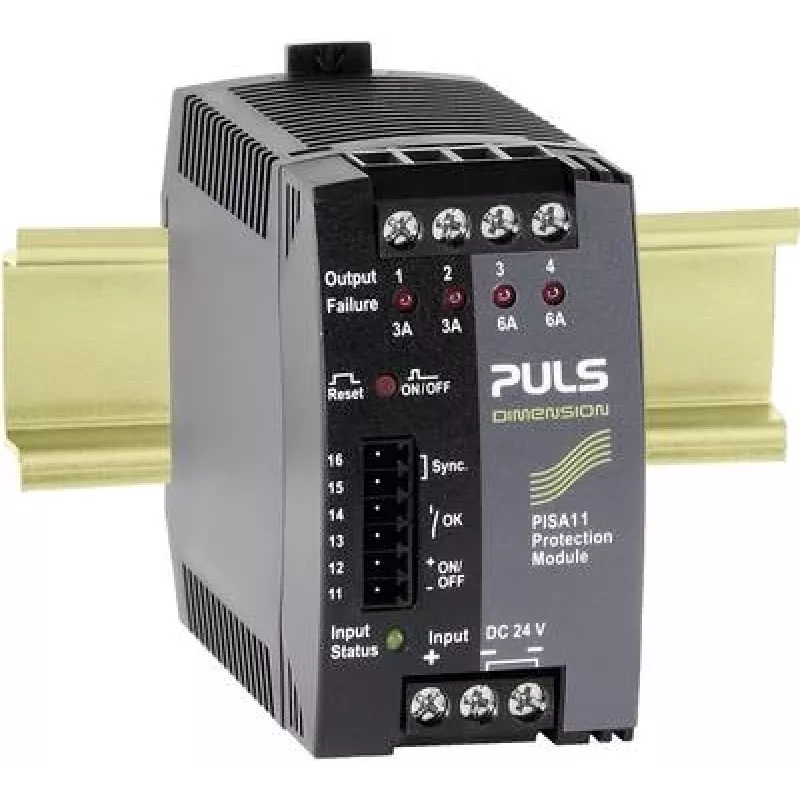

Módulo de proteção eletrónico PULS DIMENSION PISA11.203206 de 4 canais 24V DC, 2x3A + 2x6A, calha DIN

In industrial control cabinets, the PULS DIMENSION PISA11.203206 protects four 24V DC load circuits against overcurrent and short circuits. It combines two 3 A and two 6 A channels in one DIN-rail module, with selectable tripping characteristics and remote reset, making it suitable for machine builders and panel integrators who need reliable branch protection without fuses.

Key specifications

• Input voltage: 24 V DC (18–32 V DC range)
• Channels: 4 (2 × 3 A, 2 × 6 A)
• Total output current: max. 20 A
• Protection: electronic overcurrent, selectable fast/slow tripping
• Reset: automatic or manual/remote
• Mounting: DIN rail, screw terminals
• Operating temperature: -25 to +70 °C
• Status indication: LED per channel, collective alarm output
• Efficiency: >99%

Why choose it

The module eliminates the need for replaceable fuses, reducing downtime and maintenance. Its compact four-channel design saves rail space, and the selectable tripping curves allow adaptation to different load types. The collective alarm output enables remote monitoring of any channel trip.

Ideal use cases

• Protecting sensors, actuators, and controllers in 24 V DC circuits
• Replacing traditional circuit breakers in control panels
• Applications requiring selective protection and fast fault isolation

Good to know

The PISA11.203206 is part of the PULS DIMENSION series and is approved to UL, cUL, and CB Scheme standards. It operates with high efficiency, generating minimal heat, and supports both automatic and remote reset for flexible system integration.
