Motherboard ASRock ROMED8-2T ATX para AMD EPYC LGA 4094, 8× DDR4 DIMM, Octa-Channel, 2× M.2, 8× SATA III, 10GbE, 3× RJ-45

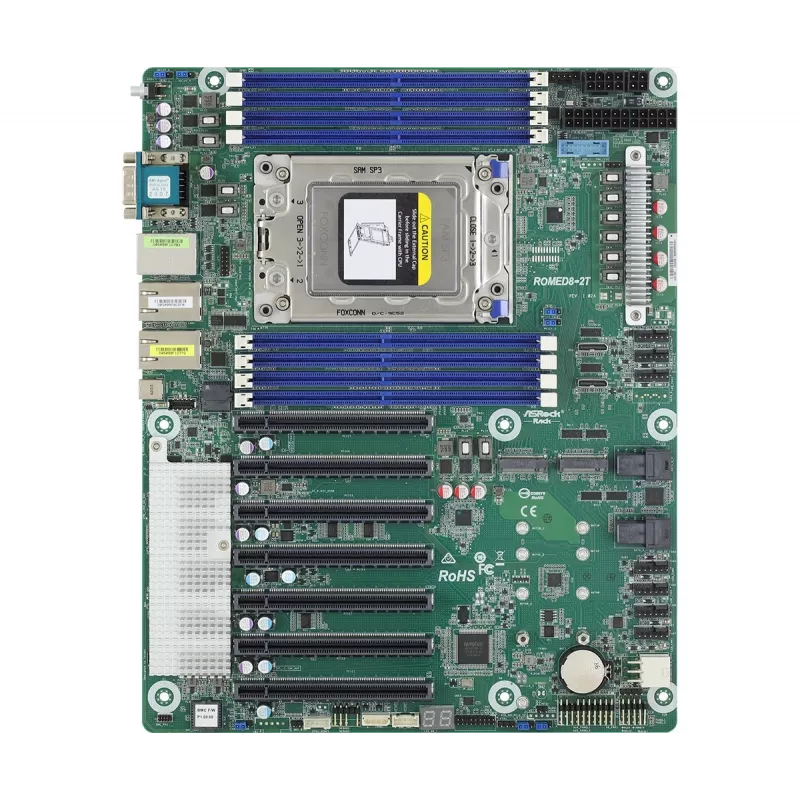

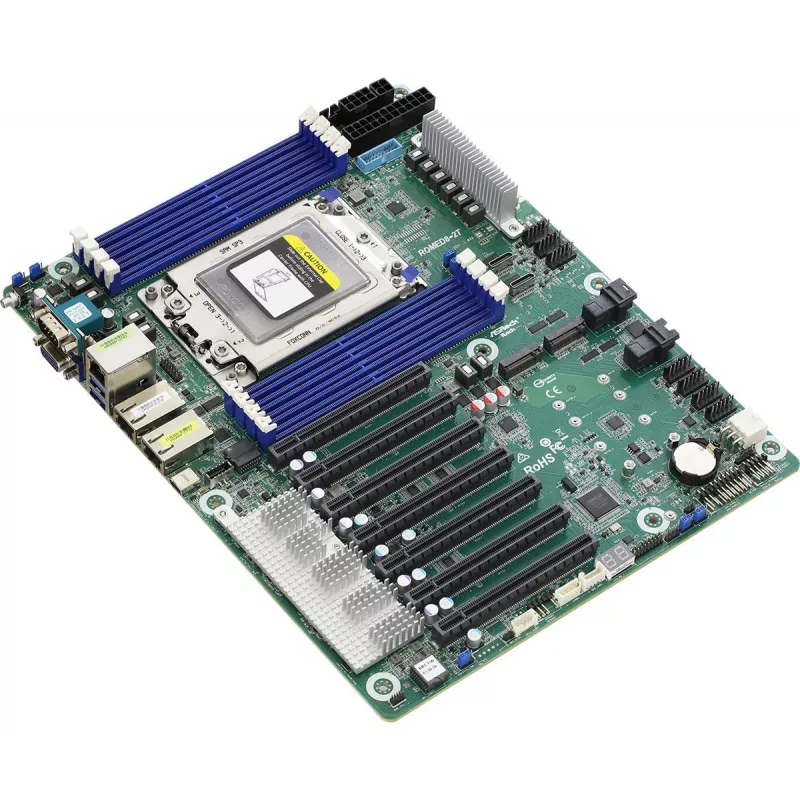

The Asrock ROMED8-2T LGA 4094 ATX motherboard is designed for servers and workstation platforms based on AMD EPYC processors using the LGA 4094 socket. It supports DDR4-SDRAM memory in an octa-channel configuration across eight DIMM slots, and provides a range of storage interfaces including M.2 and SATA III for HDD and SSD options. Integrated graphics are provided via the AST2500 controller, and network connectivity is handled by a 10 Gigabit Ethernet controller for high-throughput environments.

Advantages

The ROMED8-2T combines a standard ATX form factor with enterprise-focused features to deliver a balance of expandability and performance. Support for eight memory slots and octa-channel DDR4-SDRAM enables large memory capacity and high memory bandwidth for memory-intensive workloads. Multiple storage interfaces including M.2 and SATA III offer flexible configuration for fast NVMe or reliable SATA storage. Integrated AST2500 graphics and a 10 Gigabit Ethernet controller provide basic management graphics and high-speed network connectivity without requiring additional add-in cards.

Suitable for

• Server and rack-mounted workstation builds running AMD EPYC processors
• Virtualization hosts and hyperconverged infrastructure nodes
• High-performance storage servers using M.2 and SATA III SSDs or HDDs
• Compute-dense applications requiring large memory capacity and bandwidth

Key specifications

• Form factor: ATX
• Processor socket: LGA 4094 (AMD EPYC compatible)
• Memory type: DDR4-SDRAM
• Memory slots: 8 DIMM slots, octa-channel support
• Storage interfaces: M.2 and SATA III support for SSD/HDD
• Integrated graphics controller: AST2500
• Network: 10 Gigabit Ethernet controller
• Weight: 1.692 kg

How to use

Install an AMD EPYC processor compatible with the LGA 4094 socket and populate the DDR4 DIMM slots according to the motherboard manual to enable octa-channel memory. Connect M.2 modules or SATA III drives to the corresponding connectors, and attach power and cooling components following standard server assembly practices. Configure BIOS/UEFI settings to match installed memory and storage configuration, enable network interfaces as required, and install the operating system and device drivers that support the integrated AST2500 graphics and 10 Gigabit Ethernet controller.

Recommendations

For optimal performance, use matched DDR4 memory modules installed in recommended slot pairings to ensure octa-channel operation, and choose M.2 NVMe SSDs for high I/O workloads while reserving SATA III drives for larger-capacity archival storage. Ensure proper server-grade cooling and stable power delivery to maintain system reliability under sustained load.
