Motherboard GIGABYTE X870E AORUS MASTER X3D - Compatível com CPUs AMD Ryzen 9000, VRM Digital 18+2+2 fases, até 9000Hz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, USB 4

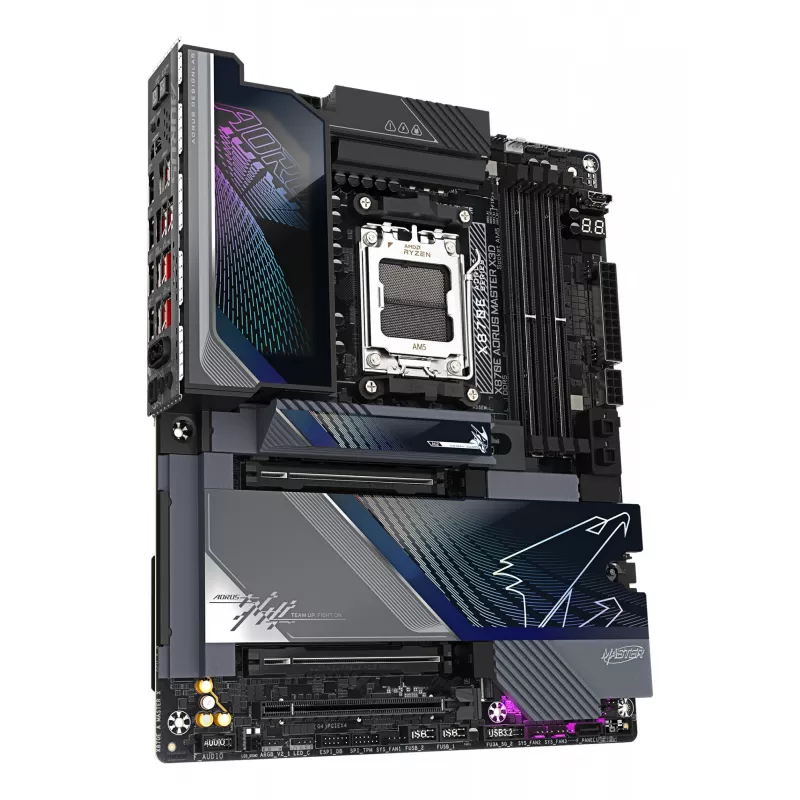

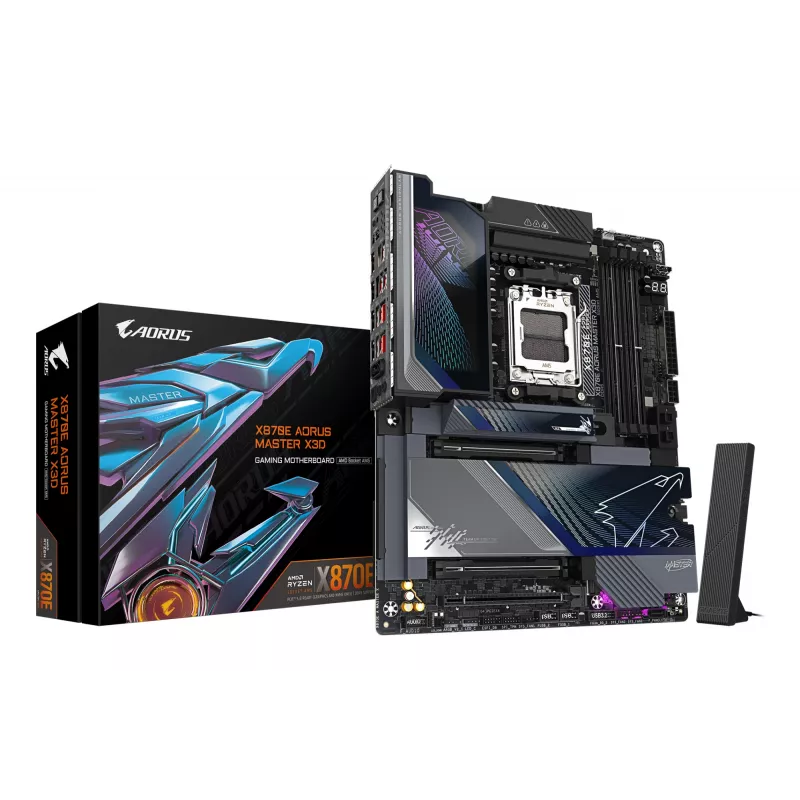

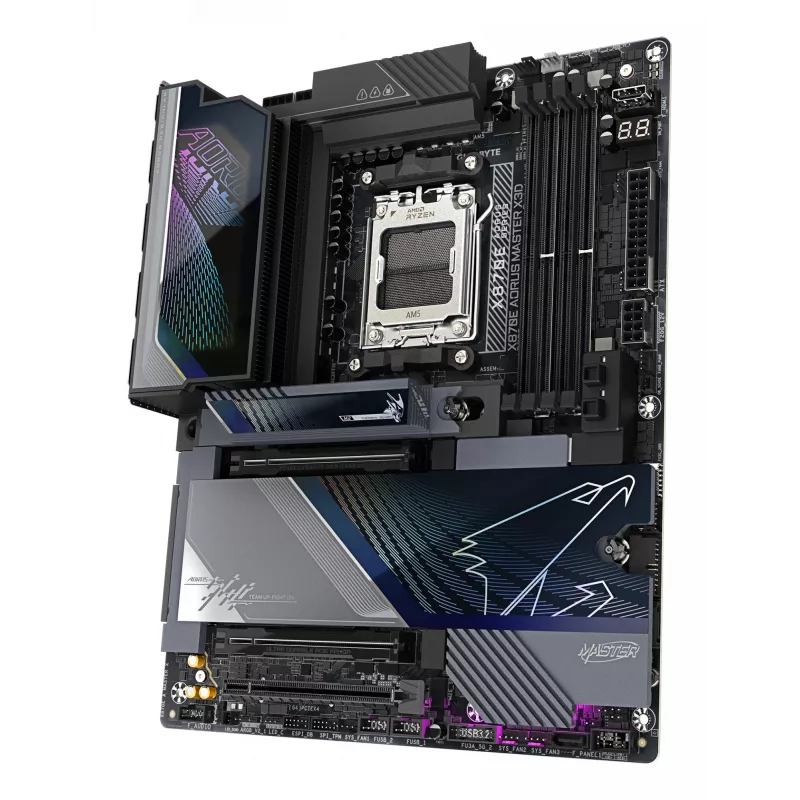

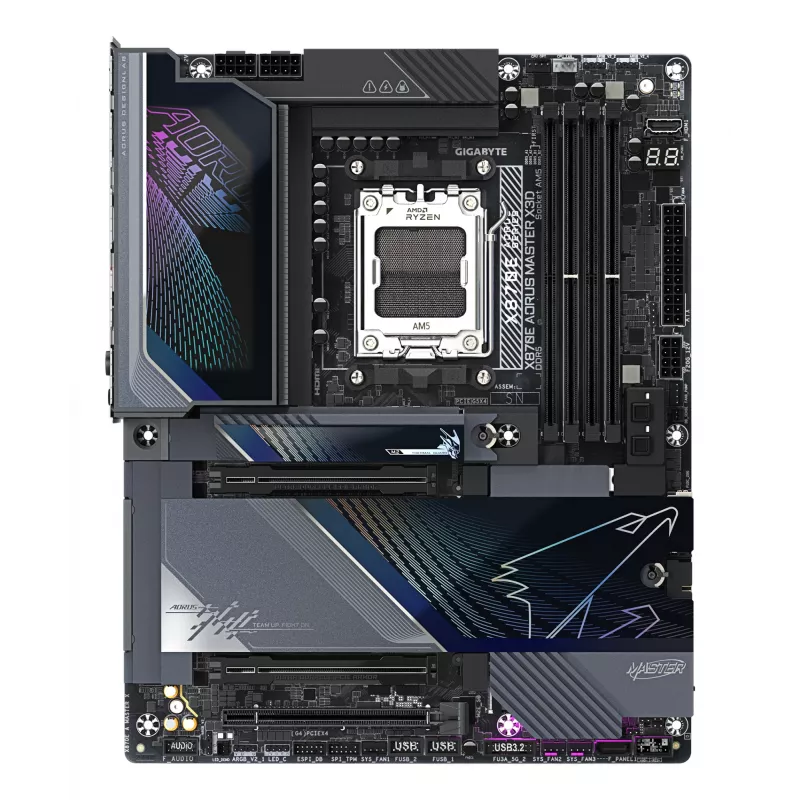

The GIGABYTE X870E AORUS MASTER X3D is an ATX motherboard for AMD Socket AM5 processors, designed for high-performance desktop builds. It supports AMD Ryzen 7000, 8000 and 9000 series CPUs, four DDR5 DIMMs up to 256 GB, multiple PCIe slots including PCIe 5.0, five M.2 slots with PCIe 5.0 x4 support on at least one slot, integrated Wi‑Fi 7 and multi-gigabit wired networking options. The board incorporates an 18+2+2 digital VRM solution and a feature set focused on ease of installation and serviceability.

Advantages

This motherboard provides broad compatibility with current AMD AM5 processors and high-end memory overclocking, supporting DDR5 OC speeds. It offers advanced connectivity with dual PCIe 5.0 slots, multiple PCIe 4.0 lanes, USB4/Type-C ports with DisplayPort Alternate Mode, and a combination of 10GbE, 5GbE and 2.5GbE LAN ports alongside Wi‑Fi 7. Onboard convenience features such as screwless EZ-Latch mechanisms for PCIe and M.2, quick Wi‑Fi antenna installation, and multiple M.2 cooling solutions improve maintenance and upgrades. The 18+2+2 digital VRM design supports stable power delivery for demanding CPUs.

Suitable for

• High-end gaming PCs requiring PCIe 5.0 graphics and fast storage
• Content creation workstations with multi-drive NVMe storage and large RAM capacity
• Professional desktops needing multi-gigabit networking and USB4 connectivity

Key specifications

• Form factor: ATX
• Chipset: AMD X870E
• CPU socket: Socket AM5 (supports AMD Ryzen 7000 / 8000 / 9000 series)
• Power delivery: Digital 18+2+2 phases VRM
• Memory: 4× DDR5 DIMM sockets, up to 256 GB, DDR5 OC support
• Storage: 5× M.2 slots (including PCIe 5.0 x4 on a slot), SATA III support, RAID 0/1/5/10
• Expansion slots: 2× PCIe 5.0 slots + 3× PCIe 4.0 slots (configuration dependent)

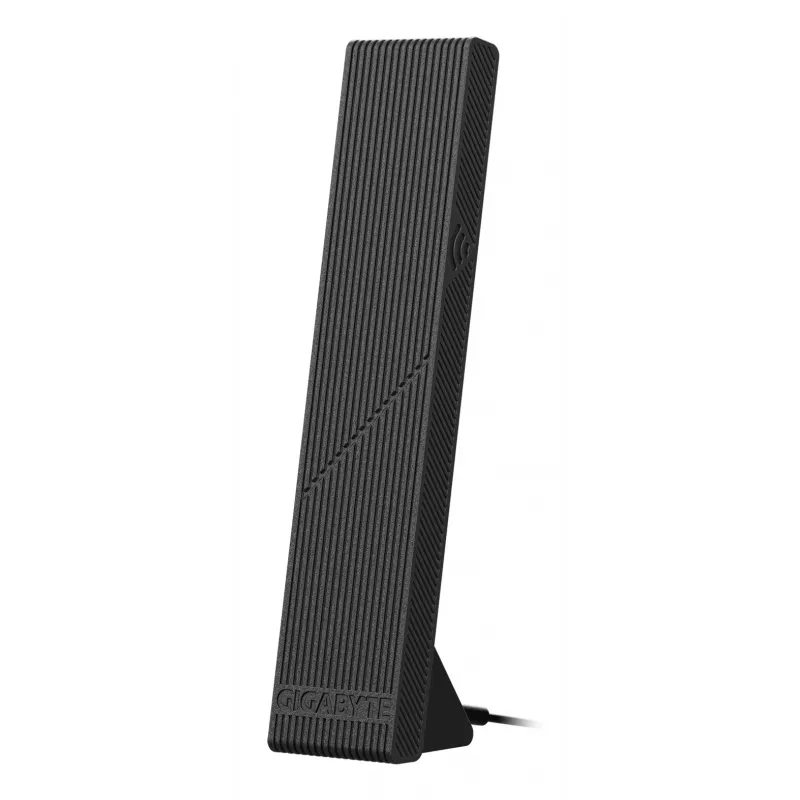

• Networking: 10GbE + 5GbE + 2.5GbE wired LAN options and Wi‑Fi 7 (802.11be) with directional high‑gain antenna

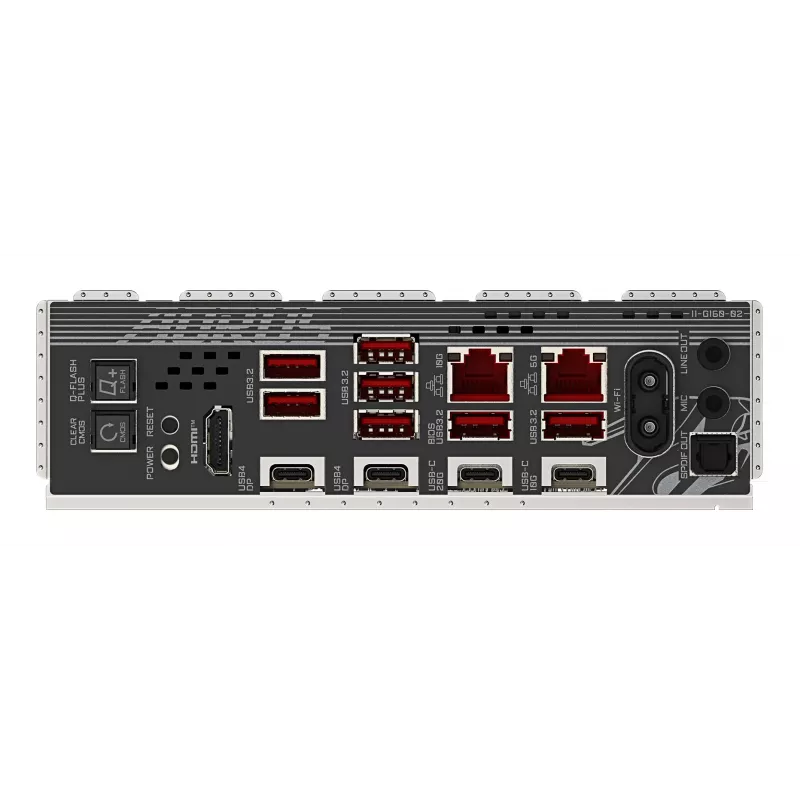

• USB / video: Dual USB4 Type‑C with DP‑Alt, front QC‑USB 65W, HDMI output
• Audio: High-definition onboard audio with multi-channel support

How to use

Install the motherboard into a compatible ATX chassis, fit an AM5 CPU and compatible DDR5 memory modules into the DIMM slots, and secure cooling and power connectors according to the case and CPU cooler instructions. Mount NVMe drives into the M.2 slots using the provided EZ-Latch mechanisms or screws where applicable, and connect SATA drives to the SATA III ports if needed. Attach the Wi‑Fi antenna to the board’s Wi‑Fi connector, connect LAN cables to the desired Ethernet port, and connect displays and peripherals to the rear I/O or front-panel Type‑C ports. Configure BIOS/UEFI settings for boot order, memory profiles (EXPO), and storage/RAID options before installing an operating system.

Recommendations

For stable high-frequency DDR5 overclocking and peak CPU performance, use a high-quality CPU cooler, a reliable power supply with adequate wattage and enable the board’s recommended memory profiles (AMD EXPO) in BIOS. Ensure proper airflow over M.2 heatsinks and VRM areas when using multiple high-speed NVMe drives or running sustained heavy workloads.
