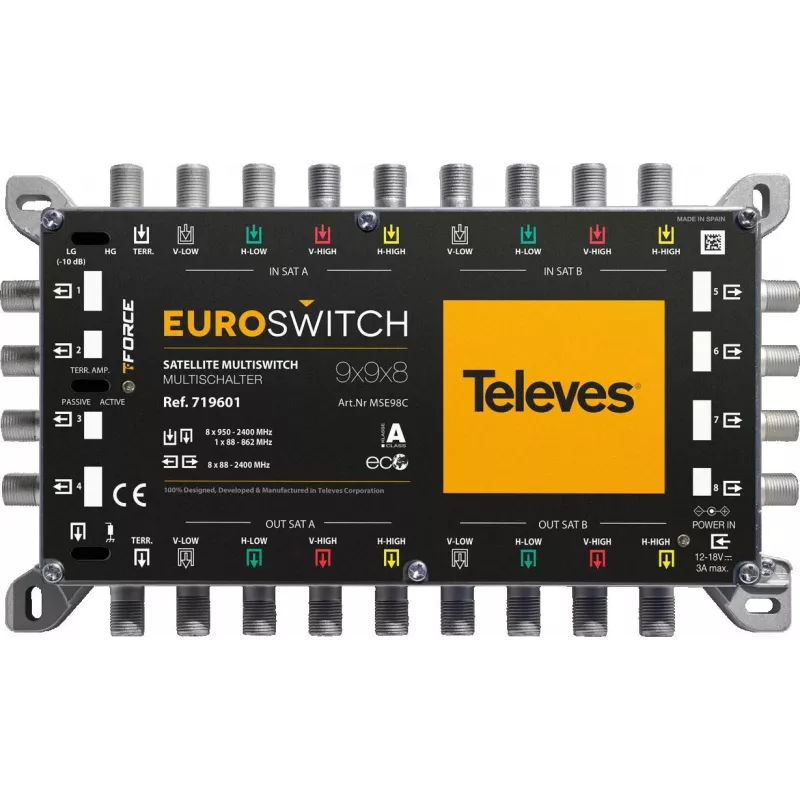

Multiswitch TELEVES Euroswitch 9x9x8 Ref. 719601

The TELEVES Multiswitch Euroswitch 9x9x8 Ref. 719601 is a multiswitch with 9 inputs, 9 cascade outputs and 8 user outputs. It features very compact dimensions and weight, low through and tap losses, and high shielding (Class A).

Key features

• Very compact dimensions and weight, even in models with many outputs
• Very low through and tap losses
• High shielding (Class A)
• Housing made of die-cast (zamak)
• Switch for toggling between cascade and terminal modes
• Excellent isolation between inputs and outputs
• Equipped with TForce technology – terrestrial output level is automatically adjusted (TERR. AMP. ACTIVE) to the optimal level
• Low Gain (LG) / High Gain (HG) switch 10dB for attenuating the signal at the satellite input for each group of 8 users
• Two power options: from a power supply or from the cascade via satellite inputs or outputs
• Low power consumption under standard conditions. Additionally, ECO mode reduces consumption as the number of connected users decreases
• Wide power supply range 12-18V, making them compatible with most existing systems
• Power pass between all inputs and cascades
• Identification (colours) on input and output
• 100% European design, quality and manufacturing

Specifications

• Brand: Televes
• Model: 719601
• Number of inputs: 9
• Number of cascade outputs: 9
• Number of user outputs: 8
• Frequency range TERR. MHz: 88 ... 862
• Frequency range SAT. MHz: 950 ... 2400
• Input level TERR. dBµV: 80 ... 110
• Input level SAT. dBµV: 65 ... 112
• Through losses TERR. dB: < 2
• Through losses SAT. dB: < 2
• Tap losses TERR. Active dB: 0
• Tap losses TERR. Passive dB: 30
• Tap losses SAT. HG dB: 0
• Tap losses SAT. LG dB: 14 ... 8
• Output level 10Ch DVB-T dBµV: 78
• Isolation H/V dB: > 50
• User isolation dB: > 30
• Supply voltage Vdc: 12 ... 18
• Max. current (PSU - TERR ACT.) mA: 65
• Max. current (PSU - TERR PAS.) mA: 5
• Max. current (STB) mA: 85
• Operating temperature °C: -5 ... 45
• Protection degree (IP): 20
• Net weight: 560 g
• Width: 205 mm
• Height: 120 mm
• Depth: 45 mm
