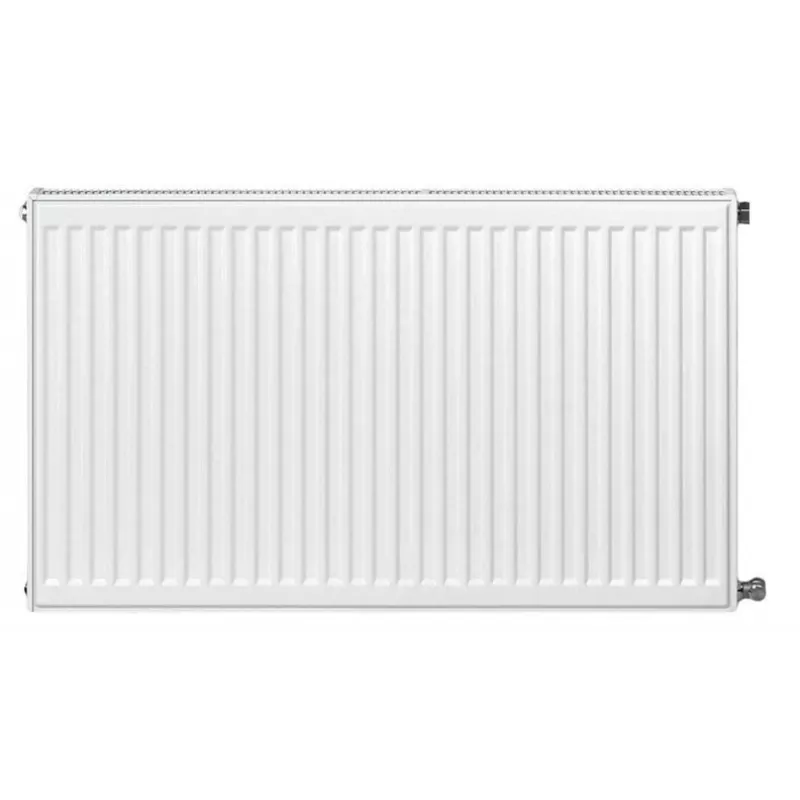

Radiador VK 11 500x600 mm Radiador plano Tipo 11 Uma camada Uma fila Convetor Ligação Inferior Direita Branco RAL 9016

The Heater VK 11 500x600 mm stands apart from conventional panel radiators through its integrated thermostatic valve insert, which allows direct connection of M30x1.5-compatible thermostatic heads without extra valve bodies. This valve-compact design simplifies installation and reduces system complexity, while the Type 11 configuration (single panel, single convector) delivers efficient heat output in a slim 61 mm depth, ideal for spaces where wall clearance is limited.

Highlights

• Type 11 panel radiator: one heating panel and one convector for balanced convection and radiation.
• Bottom right connection with 4 x G 1/2" internal threads for flexible piping.
• Integrated thermostatic valve insert (M30x1.5) for direct thermostatic head mounting.
• High-quality steel construction with phosphate pre-treatment and cathodic dip painting for long-term corrosion resistance.
• White RAL 9016 powder-coated finish, ready to install and compatible with any interior.
• Wall-mounted with included brackets; all necessary mounting hardware provided.
• Complies with EN 442 and CE requirements; backed by a 10-year manufacturer warranty.

In daily use

With a heat output of 780 W at ΔT 50K (75/65/20°C), this radiator is well-suited for smaller rooms, bathrooms, or as a supplementary heat source. The integrated valve simplifies retrofitting a thermostatic head for individual room temperature control, enhancing comfort and energy efficiency. The low water content of approximately 2.7 liters ensures rapid response to temperature changes, while the robust steel construction withstands operating pressures up to 10 bar and temperatures up to 110°C.

Full specifications

• Radiator type: Panel radiator, Type 11 (single panel, single convector)
• Connection: Bottom right (valve compact), 4 x G 1/2" internal thread
• Material: High-quality steel
• Surface finish: White RAL 9016
• Heat output at ΔT 50K (75/65/20°C): 780 W
• Heat output at ΔT 30K (55/45/20°C): 496 W
• Max. operating pressure: 10 bar (1.0 MPa)
• Max. operating temperature: 110 °C
• Integrated valve: Yes, thermostatic valve insert M30x1.5 compatible
• Mounting: Wall-mounted, brackets included
• Water content: approx. 2.7 liters
• Corrosion protection: Phosphate treatment, cathodic dip painting
• Standard compliance: EN 442, CE
• Manufacturer warranty: 10 years
• Depth: 61 mm
• Dimensions (H x W): 500 x 600 mm

Final note

The Heater VK 11 combines efficient heating performance, integrated valve convenience, and durable construction, making it a reliable choice for modern central heating systems.
