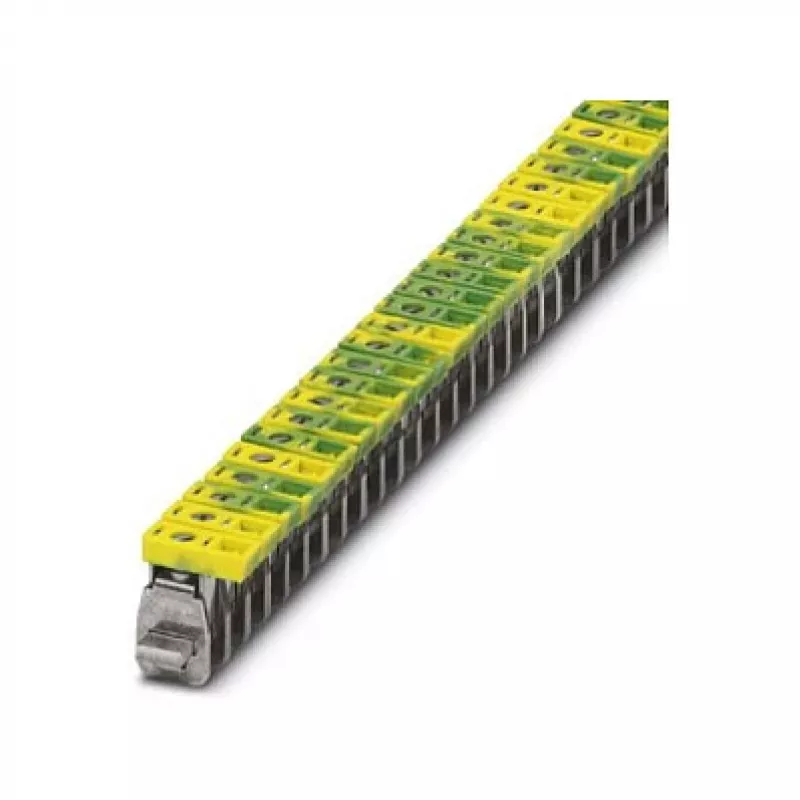

Phoenix 0423027 AKG 16 GNYE borne de terra, ligação por parafuso, 16 mm², verde-amarelo

With a nominal cross section of 16 mm² and a screw connection system, this ground modular terminal block ensures secure and reliable earthing in industrial applications. Its green-yellow housing provides clear identification for protective earth connections.

Overview

The Phoenix 0423027 AKG 16 GNYE is a single-level ground terminal block designed for DIN rail mounting. It accommodates conductors from 0.5 mm² to 25 mm² (solid) and 0.5 mm² to 16 mm² (stranded), with an AWG range of 20 to 4. The screw connection with M4 thread and a tightening torque of 1.5 to 1.8 Nm ensures a vibration-resistant connection.

What stands out

• High current capacity: 16 mm² nominal cross section supports demanding power distribution.
• Robust construction: Polyamide housing with V0 flammability rating for enhanced safety.
• Wide temperature range: Operates from -60 °C to 105 °C, suitable for harsh environments.
• Global approvals: UL, CSA, VDE, EAC, cULus certified for international use.
• Easy installation: DIN rail mounting on NS 35/7.5 or NS 35/15, with 12 mm stripping length.

Technical details

• Terminal type: Ground modular terminal block
• Connection method: Screw connection
• Number of levels: 1
• Number of connections: 2
• Conductor cross section solid: 0.5 mm² - 25 mm²
• Conductor cross section stranded: 0.5 mm² - 16 mm²
• AWG wire size: 20 - 4 AWG
• Stripping length: 12 mm
• Screw thread: M4
• Tightening torque: 1.5 - 1.8 Nm
• Insulating material: PA (Polyamide)
• Flammability rating: V0 (UL 94)
• Operating temperature: -60 °C to 105 °C
• Pollution degree: 3
• Mounting type: DIN rail (NS 35/7.5, NS 35/15)
• Approvals: UL, CSA, VDE, EAC, cULus

Our verdict

A dependable earthing solution for industrial control panels, the Phoenix 0423027 combines high conductivity with rugged materials and broad certifications, making it a solid choice for demanding electrical installations.
