Placa de interface DeLOCK 89013 interna M.2 PCIe Low-Profile

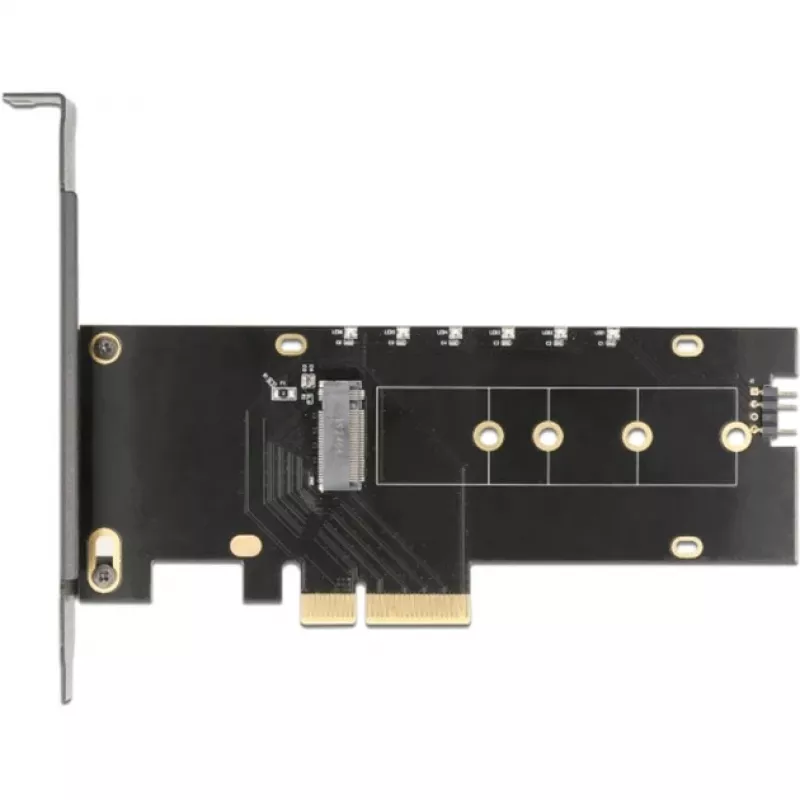

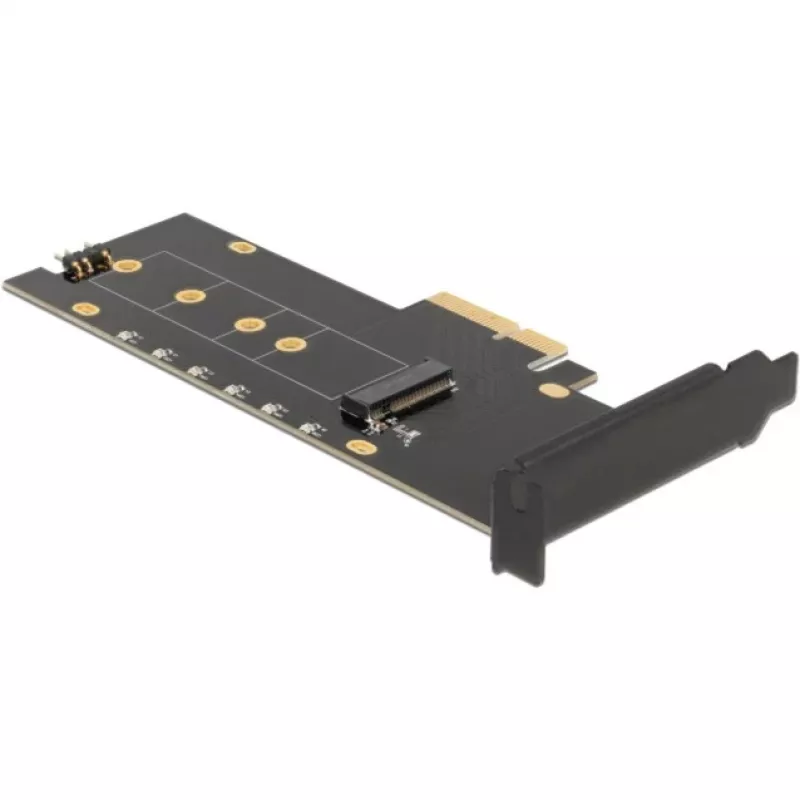

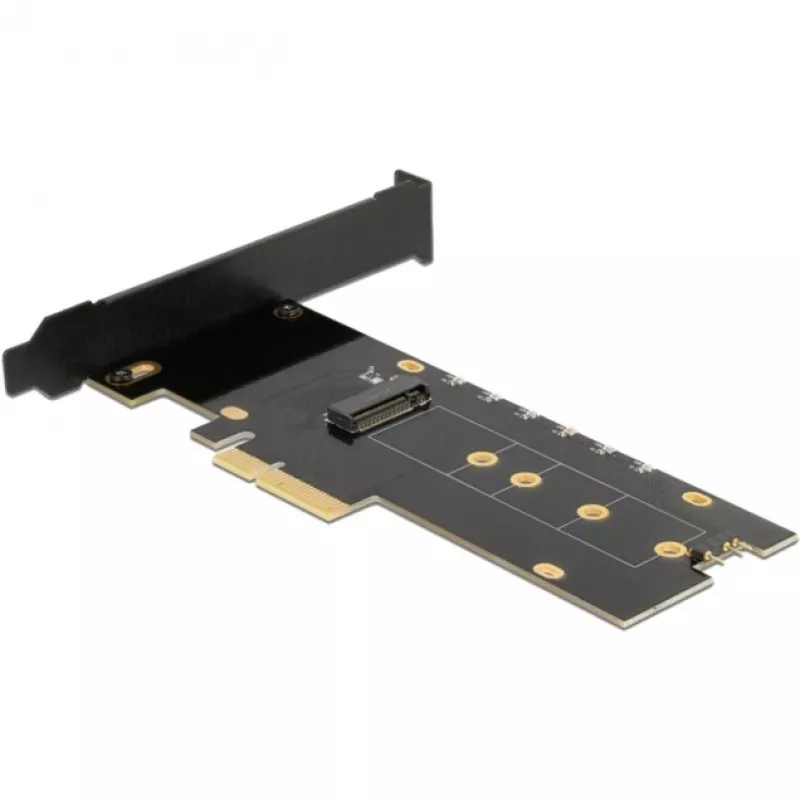

The DeLOCK 89013 is an internal PCIe interface card that provides one M.2 slot for adding an M.2 module in sizes 2280, 2260, 2242 or 2230. Its low-profile design makes it suitable for compact systems and allows expansion of storage capacity or installation of high-speed M.2 SSDs via a PCI Express slot.

Advantages

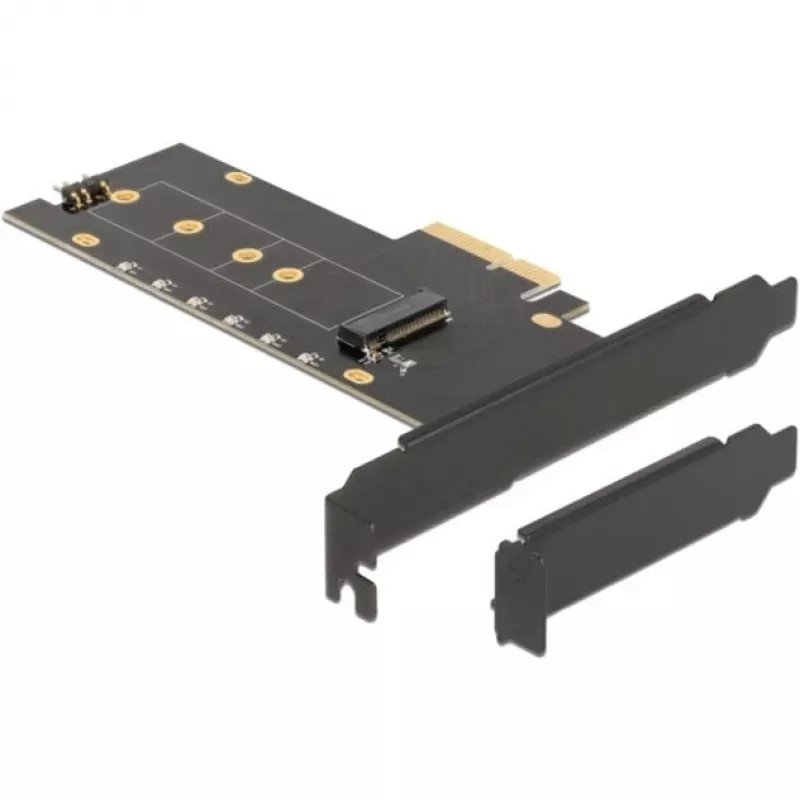

The card includes a large heat sink to ensure adequate cooling of M.2 modules and integrated LED illumination with six LEDs to light the computer interior. A transparent plastic panel is supplied to fit into the heat sink; connecting the card’s LED cable to the corresponding header on the motherboard enables adjustable lighting settings. The low-profile form factor supports installation in smaller chassis.

Suitable for

Key specifications

How to use

Install the DeLOCK 89013 into an available PCIe slot on the motherboard following standard anti-static precautions. Mount the M.2 module into the M.2 slot (compatible sizes: 2280, 2260, 2242, 2230) and secure it with the appropriate screw. Attach the heat sink over the M.2 module and, if desired, insert the supplied transparent plastic panel into the heat sink. Connect the LED cable to the corresponding LED header on the motherboard to enable and control the illumination.

Recommendations

Ensure the motherboard BIOS and operating system support booting from or accessing M.2 devices installed via a PCIe adapter if you plan to use the M.2 module as a system drive. Verify the LED header pinout on your motherboard before connection to avoid incorrect wiring.
