Placa-mãe GIGABYTE X870E EAGLE X3D WIFI7 - Compatível com CPUs AMD Ryzen 9000, VRM digital 14+2+2 fases, até 9000Hz DDR5 (OC), 1xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4

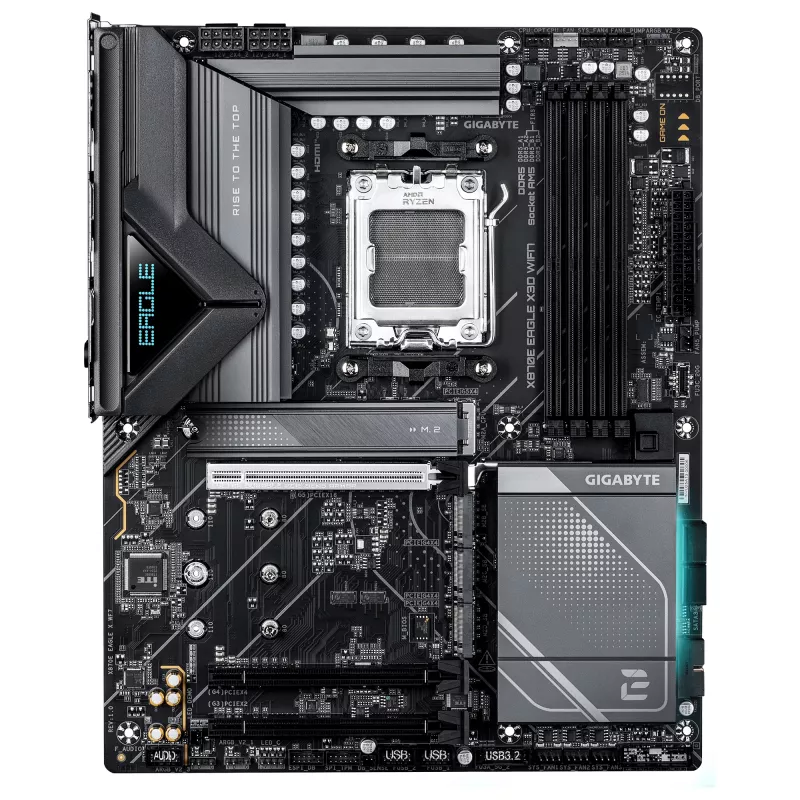

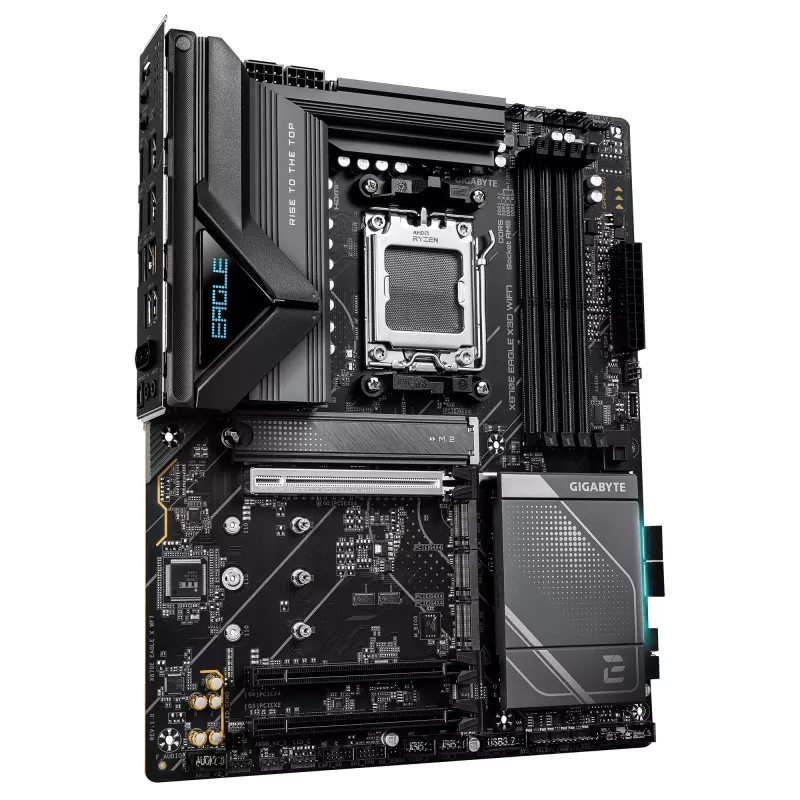

GIGABYTE X870E EAGLE X3D WIFI7 is an ATX motherboard for Socket AM5 designed to support AMD Ryzen 7000, 8000 and 9000 series processors. It offers a digital twin 14+2+2 phase VRM, four DDR5 DIMM slots with up to 256 GB memory capacity and DDR5 OC capabilities, multiple high-speed storage options including four M.2 slots with PCIe 5.0 support, one PCIe 5.0 x16 slot plus three PCIe 4.0 slots, Wi‑Fi 7 and 5GbE networking, and advanced connectivity such as Dual USB4 Type-C and HDMI for high-performance PC builds.

Advantages

The motherboard combines a robust power delivery system and AI-enhanced X3D Turbo Mode 2.0 to maximize X3D performance while maintaining stability. Thermal solutions such as M.2 EZ-Flex and efficient heat dissipation plates improve SSD cooling. EZ-Latch quick-release and screwless designs simplify installation and maintenance. High-speed networking options and extensive expansion lanes provide flexible connectivity for gaming, content creation and professional workloads.

Suitable for

• High-performance gaming PCs with X3D or Ryzen processors
• Content creation workstations requiring fast storage and memory bandwidth
• Professional systems that need multiple expansion slots and reliable networking
• Custom builds where PCIe 5.0 storage and USB4 connectivity are required

Key specifications

• Form factor: ATX
• CPU socket: Socket AM5 (supports AMD Ryzen 7000 / 8000 / 9000 series)
• Chipset: AMD X870E
• Power delivery: digital twin 14+2+2 phase VRM
• Memory: 4 × DDR5 DIMM slots, up to 256 GB, DDR5 OC up to 9000 MT/s (OC)
• PCIe slots: 1 × PCIe 5.0 x16, 3 × PCIe 4.0
• Storage: 4 × M.2 slots (including PCIe 5.0 x4), SATA III with RAID 0/1/5/10 support, up to 8 drives supported
• Audio: Realtek ALC1220-VB, 7.1 channels
• Networking: Wi‑Fi 7 (802.11be), Bluetooth 5.4, 5GbE LAN and additional Ethernet options
• BIOS: UEFI AMI with 512 Mbit; Clear CMOS jumper and Clear CMOS button

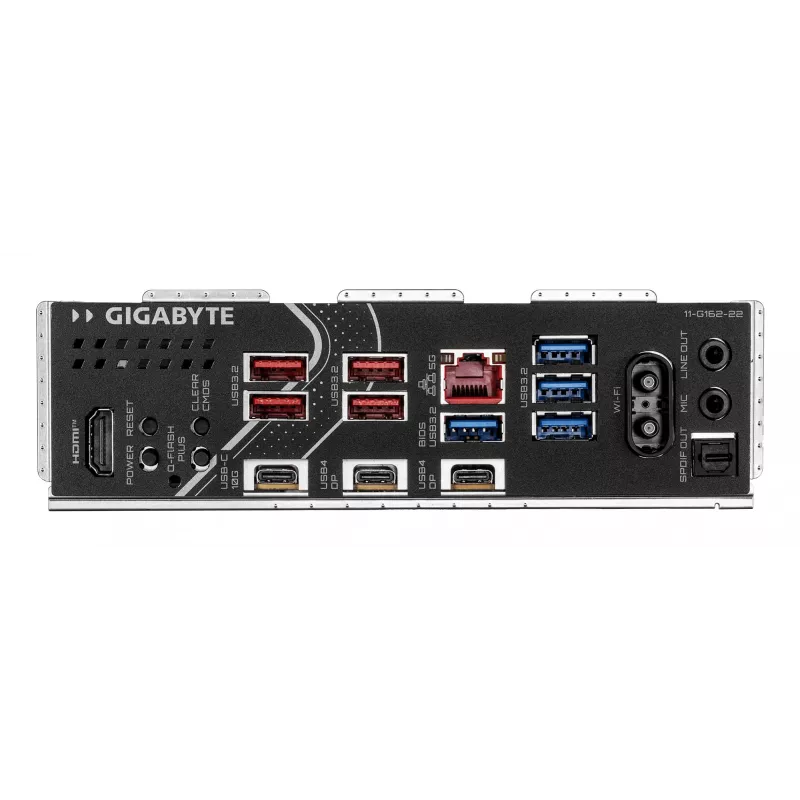

• External connectors: HDMI, Dual USB4 Type-C with DisplayPort Alternate Mode

How to use

Install the motherboard into an ATX-compatible case and fit a Socket AM5 CPU following the processor and cooler manufacturer instructions. Populate up to four DDR5 DIMMs, install storage devices into M.2 slots or SATA ports, and connect power cables from a compatible PSU. Use the EZ-Latch and screwless features for easier insertion and securing of M.2 and PCIe devices. Configure BIOS/UEFI settings to enable desired memory XMP/EXPO profiles, set storage RAID if needed, and update firmware to the latest UEFI version for optimal compatibility.

Recommendations

For stable overclocking and high sustained performance, use a quality cooling solution for both the CPU and storage devices, ensure a PSU with adequate power and protection, and update drivers and UEFI firmware regularly. When using X3D Turbo Mode 2.0 or memory OC profiles, verify stability with stress tests and monitor temperatures during prolonged heavy workloads.
