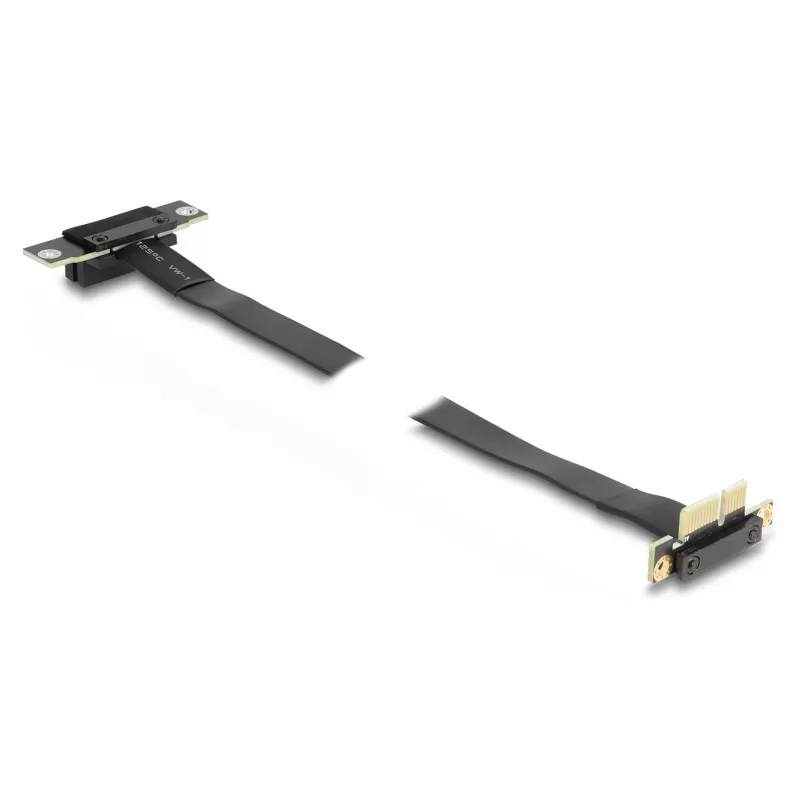

Placa riser DeLOCK PCI Express x1 macho 90° angular para slot x1 90° angular com cabo 60 cm

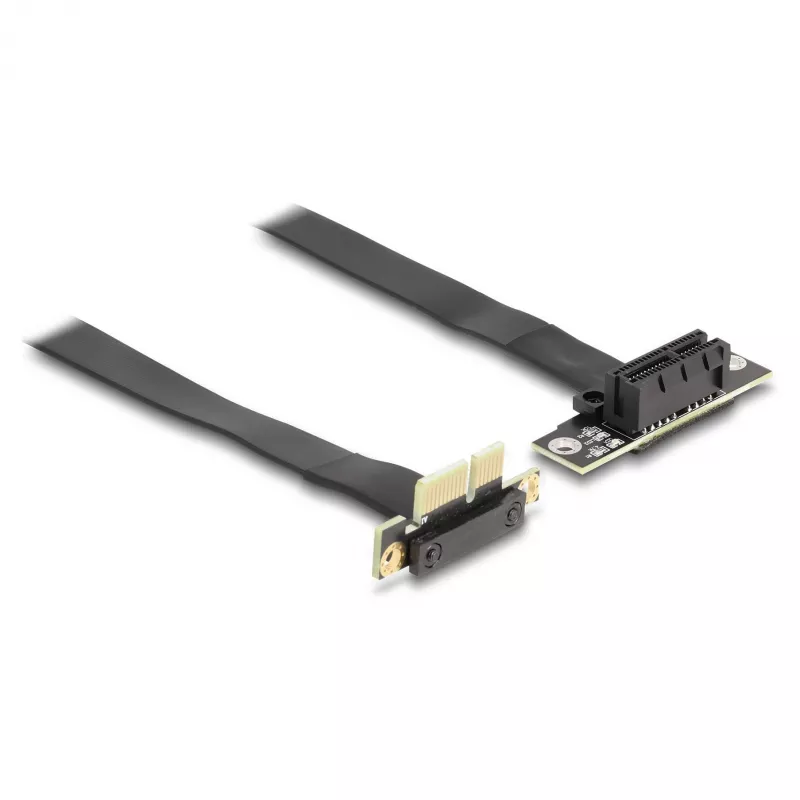

This Delock PCI Express riser card provides a PCI-E x1 male connector angled at 90° and connects to a PCI-E x1 slot via a flexible 60 cm cable. The design enables space-saving installation inside computer cases, allowing installation of PCI Express x1 cards where direct vertical mounting is impractical. The product is black and intended for internal PC use.

Advantages

The riser card’s 90° angled male connector and matching right-angled slot interface reduce vertical height requirements. The 60 cm flexible cable allows routing around obstacles and positioning the card in confined spaces while maintaining a standard PCI-E x1 connection. The adapter is compact and compatible with PCI Express x1 devices without changing signal type.

Suitable for

Key specifications

How to use

Power down the computer and disconnect mains power before installation. Insert the PCI-E x1 male connector of the riser into the motherboard PCI-E x1 slot at the matching 90° angle, then secure the riser card or positioned add-in card as required in your chassis. Route the 60 cm cable to the desired location, plug the add-in card into the slot end of the riser, and verify a firm connection. Reassemble the case, reconnect power and boot the system to confirm the operating system recognizes the PCI Express device.

Recommendations

Ensure the motherboard slot and add-in card are compatible with PCI Express x1 specifications. Avoid excessive cable bending near the connectors and secure the cable to prevent strain. Use in indoor, static-free environments and follow standard ESD precautions during installation.
