Quadro de distribuição de superfície NOARK PHS 8T IP65 8 módulos 1 fila cinzento

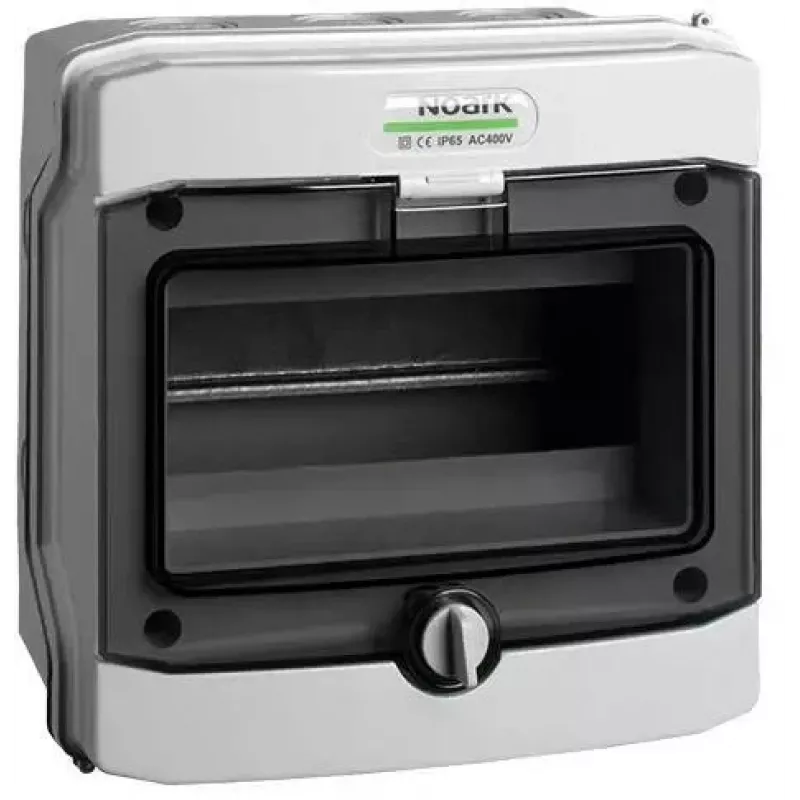

The NOARK PHS 8T is a robust surface-mounted distribution board designed for indoor and outdoor installations requiring IP65 protection. With 8 module spaces in a single row, it provides a compact solution for residential and commercial electrical distribution. The enclosure is made from UV-resistant ABS with a transparent polycarbonate door, offering durability and easy inspection.

Advantages

High ingress protection (IP65) ensures reliable operation in dusty and wet environments. The IK08 impact resistance provides mechanical protection. The transparent door allows quick visual checks of installed devices without opening. Pre-stamped knockouts simplify cable entry, and the included DIN rail and N+PE terminal blocks reduce installation time.

Suitable for

• Surface mounting in outdoor or industrial areas
• Distribution of electrical circuits in residential and commercial buildings
• Environments requiring dust and water protection

Key specifications

• Number of modules: 8
• Number of rows: 1
• Ingress protection: IP65
• Impact resistance: IK08
• Material: ABS (body), Polycarbonate (door)
• Colour: Grey (RAL 7035)
• Rated insulation voltage (Ui): 500 V
• Rated operational voltage (Ue): 400 V AC
• Insulation class: II
• Glow wire test: 650°C
• Operating temperature: -25°C to +60°C
• Standards: EN 62208, EN 61439-3

Recommendations

For optimal performance, ensure proper sealing of unused cable entries. Use appropriate cable glands for the pre-stamped knockouts. This enclosure is suitable for use with modular DIN rail devices such as MCBs, RCDs, and contactors.
