Quadro elétrico MET ST6 820 800X600X200MM IP66 cinzento

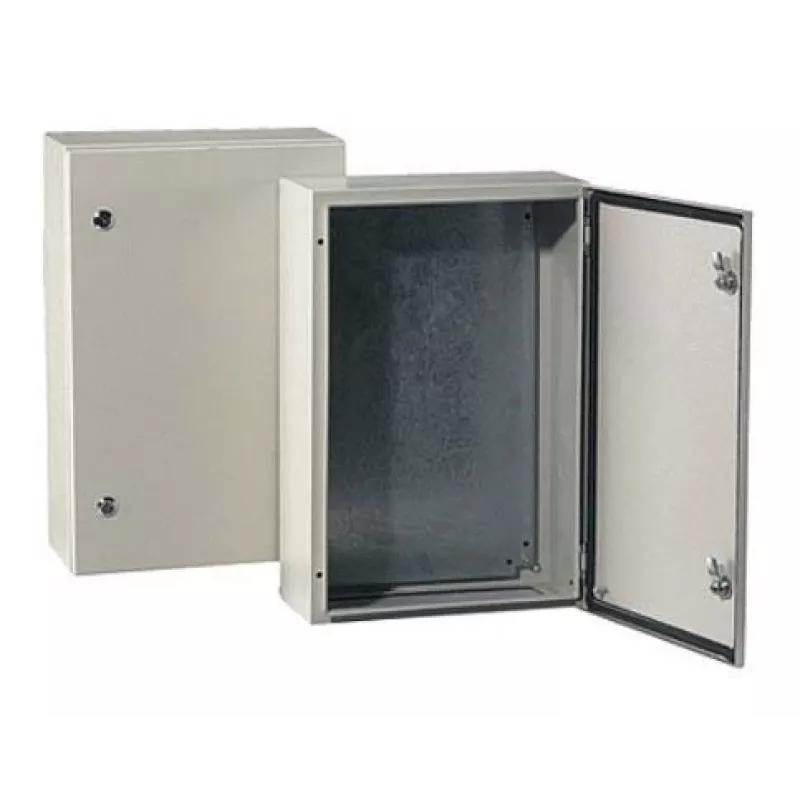

The BOARD MET ST6 820 is a robust wall-mounted electrical enclosure designed for industrial automation, control systems, and electrical distribution. Manufactured from high-quality sheet steel with a grey powder-coated finish (RAL 7035), this enclosure offers IP66 protection against dust and water ingress, making it suitable for harsh environments. Its dimensions of 800 x 600 x 200 mm provide ample space for mounting equipment, while the single hinged door with a quarter-turn lock ensures secure access.

Advantages

This enclosure combines durability with ease of installation. The galvanized steel back plate and powder-coated body resist corrosion, while the IK10 impact rating protects against mechanical shocks. The door is reversible for flexible mounting, and earthing studs on both door and body ensure safe grounding. The bottom gland plate simplifies cable entry.

Suitable for

• Industrial electrical enclosures for automation and control systems
• Distribution boards in factories, warehouses, and outdoor installations
• Protection of sensitive electronic equipment in demanding environments

Key specifications

• Material: Sheet Steel
• IP Protection Rating: IP66
• Color: Grey (RAL 7035)
• Mounting Type: Wall-mounted
• External Dimensions (H x W x D): 800 x 600 x 200 mm
• Door Type: Single hinged door
• Lock Type: Quarter-turn lock (2-point)
• Gland Plate: Yes, bottom
• Back Plate Material: Galvanized Steel
• Surface Finish: Powder Coated
• Material Thickness (Body): 1.2 mm
• Material Thickness (Door): 1.5 mm
• Impact Resistance: IK10
• Door Opening Angle: 120 degrees
• Door Reversibility: Yes
• Earthing Provisions: Earthing studs on door and body
• Standards Compliance: IEC 62208, EN 60529
• Application: Industrial electrical, automation, control systems
• Operating Temperature Range: -25°C to +40°C
• Corrosion Resistance: High

Recommendations

For optimal installation, ensure the wall can support the weight of the enclosure and its contents. Use appropriate cable glands for the bottom gland plate. This enclosure is ideal for use in industrial settings where dust and water resistance are critical.
