Rack de parede Lanview RWP09U45WH 9U IP20 branco

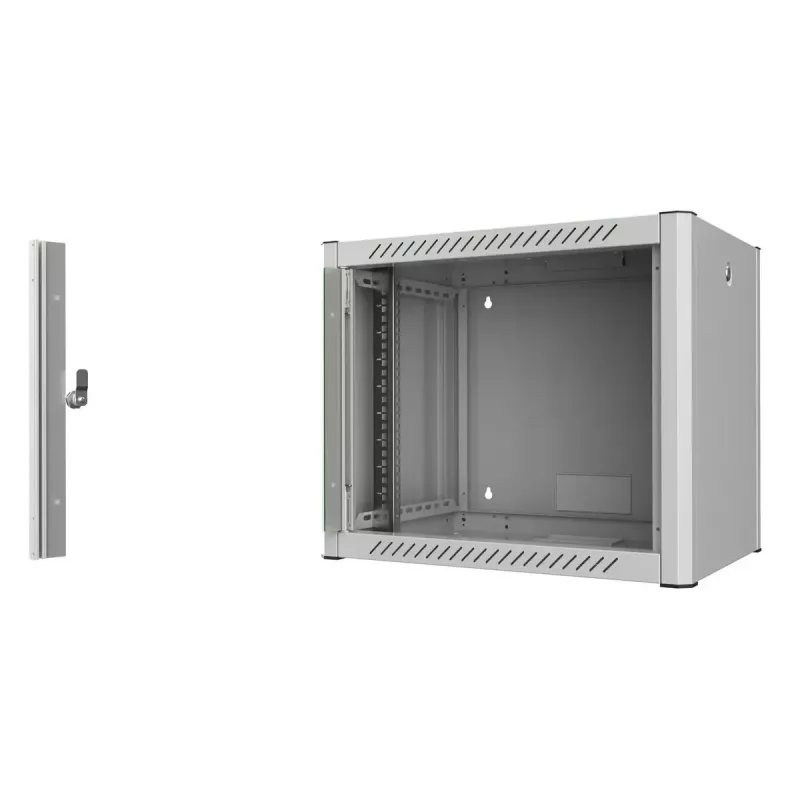

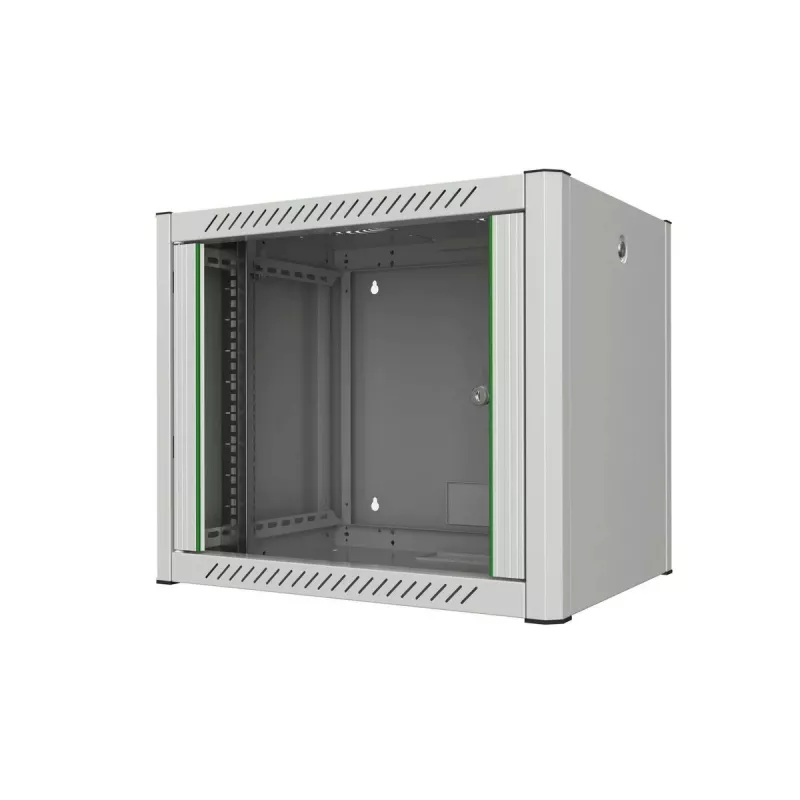

The Lanview RWP09U45WH is a 9U wall-mounted network rack with dimensions 600 x 450 x 506 mm and an IP20 protection rating. The cabinet is finished in white and designed to house network and IT equipment with a standard 9U capacity. The front door features 4 mm tempered antistatic glass with smoothed edges set in an extruded aluminum frame; colored strips on the sides of the glass provide a decorative appearance. The cabinet is delivered with one set of two device installation rails already mounted, allowing depth adjustments for installed devices. Cable entry is provided through 145 x 70 mm openings at the top, bottom and rear doors, and a movable rubber-edged cable entry module with a 0–50 mm sliding compression system secures and reduces dust ingress for incoming cables.

Advantages

The wall-mounted design saves floor space while maintaining full access to installed equipment. Tempered antistatic glass and an aluminum frame increase door durability and fracture resistance. Detachable side panels allow access from the front and sides in wall-mounted installations, and from all sides when the cabinet is used freestanding. Built-in cable entry points and an adjustable rubber cable gland simplify wiring and help protect internal components from dust. Optional pinion feet or casters enable conversion to a freestanding setup, and the upper chassis ventilation hole supports passive airflow or an optional two-fan ventilation module for active cooling.

Suitable for

• Residential network and home server installations
• Small office network equipment and patch panels
• Telecom closets with limited floor space
• IT closets requiring organized cable management

Key specifications

• Rack capacity: 9U
• Protection rating: IP20
• Dimensions (W x D x H): 600 x 450 x 506 mm
• Weight: 19 kg
• Front door: 4 mm tempered antistatic glass in extruded aluminum frame
• Cable entry openings: 145 x 70 mm (top, bottom, rear)
• Cable entry module: movable rubber-edged, 0–50 mm sliding compression
• Included: 1 set of 2 device installation rails (depth-adjustable)
• Color: White

How to use

Mount the cabinet to a suitable wall surface using appropriate anchors and fasteners for the wall material, ensuring the cabinet is level and securely supported. Install equipment on the provided rails and adjust their depth as needed. Route cables through the 145 x 70 mm entry openings at top, bottom or rear, and secure them using the rubber-edged cable entry module, compressing the module to seal cables in the 0–50 mm range. For active ventilation, attach an optional two-fan ventilation module to the upper chassis ventilation hole; otherwise rely on the ventilation holes for passive airflow. If a freestanding setup is required, fit optional pinion feet or the caster group and use detachable side panels for access from all sides.

Recommendations

Install network equipment within the specified 9U capacity and maintain proper airflow by allowing clearance around ventilation openings. Use appropriate cable management to avoid strain on connectors and use recommended grounding practices for metal cabinets.
