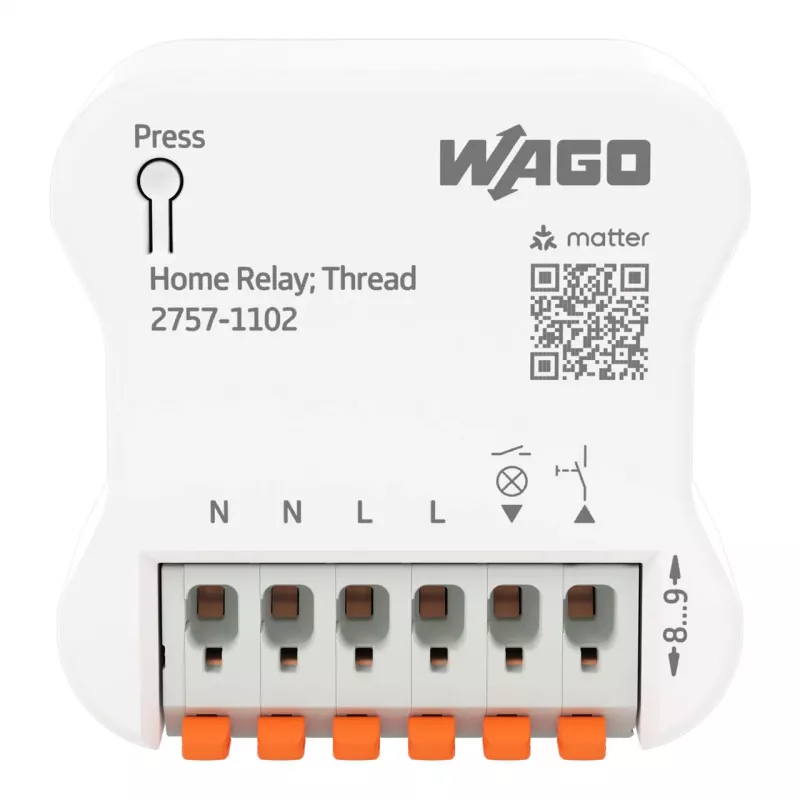

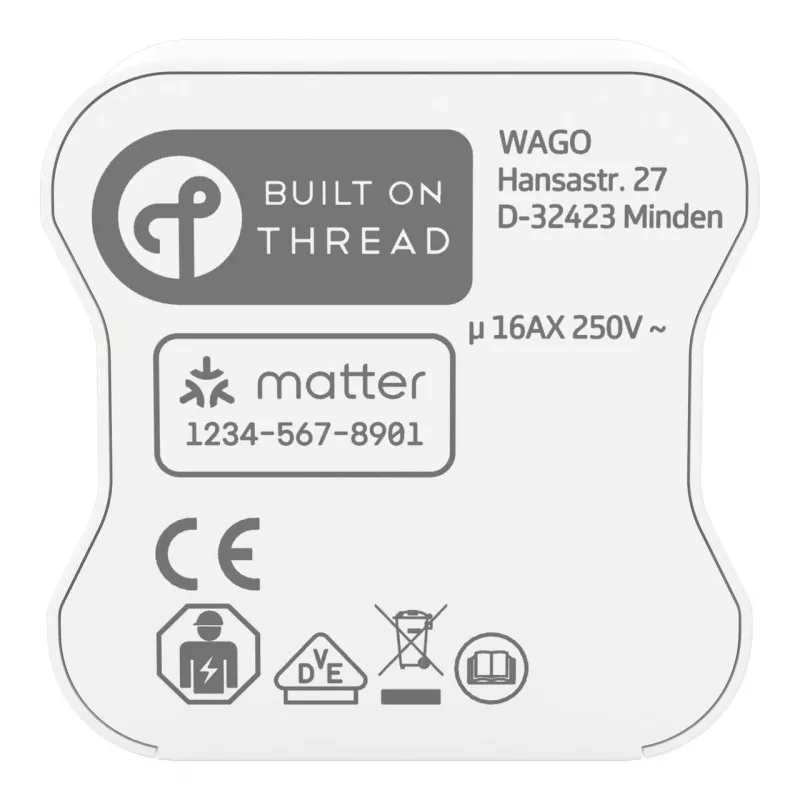

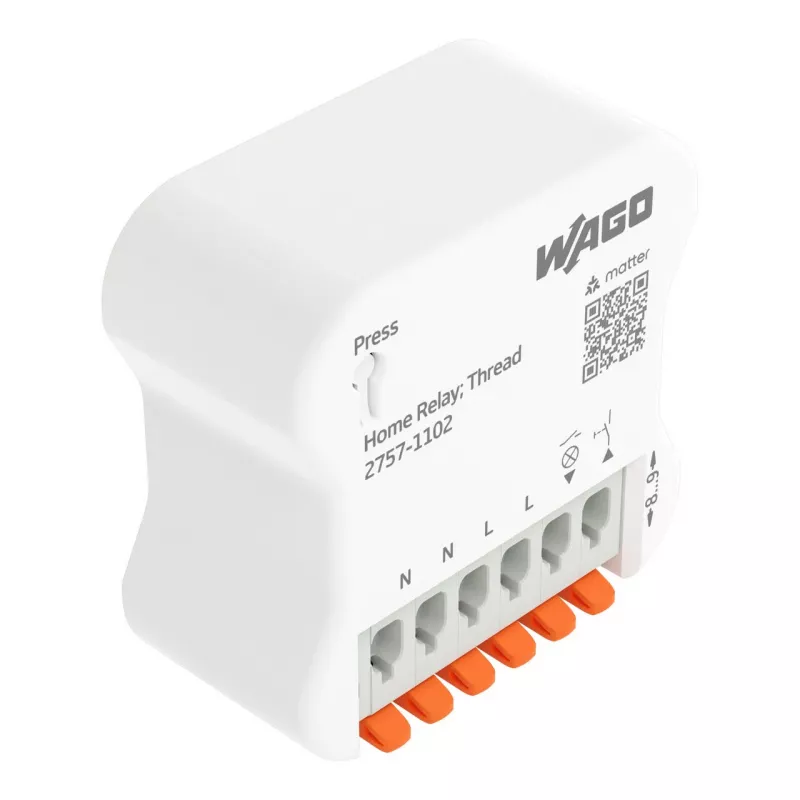

Relé doméstico WAGO 2757-1102, 1DI/1DO, 16 A, branco

The WAGO 2757-1102 Home Relay redefines compact switching by integrating a 230 VAC power supply directly into a flush-mount housing—no external adapters, no extra wiring. This single-channel relay module offers one digital input and one relay output with a robust 16 A switching capability, making it ideal for controlling lighting, heating, or other high-power loads in residential and commercial installations. Its CAGE CLAMP® connection technology ensures fast, maintenance-free wiring, while the white polyamide housing blends seamlessly into standard wall boxes.

Highlights

• Integrated 230 VAC supply for direct connection to mains power
• 1 potential-free digital input for sensors or switches
• 1 relay output (NO contact) rated up to 16 A / 250 VAC
• Flush-mount installation in standard wall boxes
• Tool-free CAGE CLAMP® terminals for secure, vibration-proof connections
• IP20 protection, suitable for indoor use in dry environments

In daily use

Installation is straightforward: mount the relay in a flush-mount box, connect the 230 VAC supply, and wire the input and load using the CAGE CLAMP® terminals—no special tools required. The potential-free input accepts a simple switch or contact closure, allowing the relay to be triggered by conventional wall switches, motion detectors, or building automation systems. The relay's NO contact switches up to 16 A, enough for most lighting circuits, small motors, or heating elements. The white housing and compact dimensions ensure a clean, professional finish in any installation.

Full specifications

• Number of Digital Inputs (DI): 1
• Number of Digital Outputs (DO): 1
• Output Type: Relay (NO contact)
• Max. Switching Current: 16 A
• Max. Switching Voltage: 250 VAC
• Supply Voltage: 230 VAC
• Mounting Type: Flush-mount box
• Color: White
• Connection Technology: CAGE CLAMP®
• Protection Class: IP20
• Operating Temperature: 0 … +45 °C
• Input Signal Type: Potential-free contact
• Frequency: 50/60 Hz
• Housing Material: Polyamide (PA 6.6)
• Certifications: CE

Final note

With its integrated power supply and high switching capacity, the WAGO 2757-1102 is a reliable choice for modern electrical installations, combining simplicity, safety, and performance in one compact unit.
