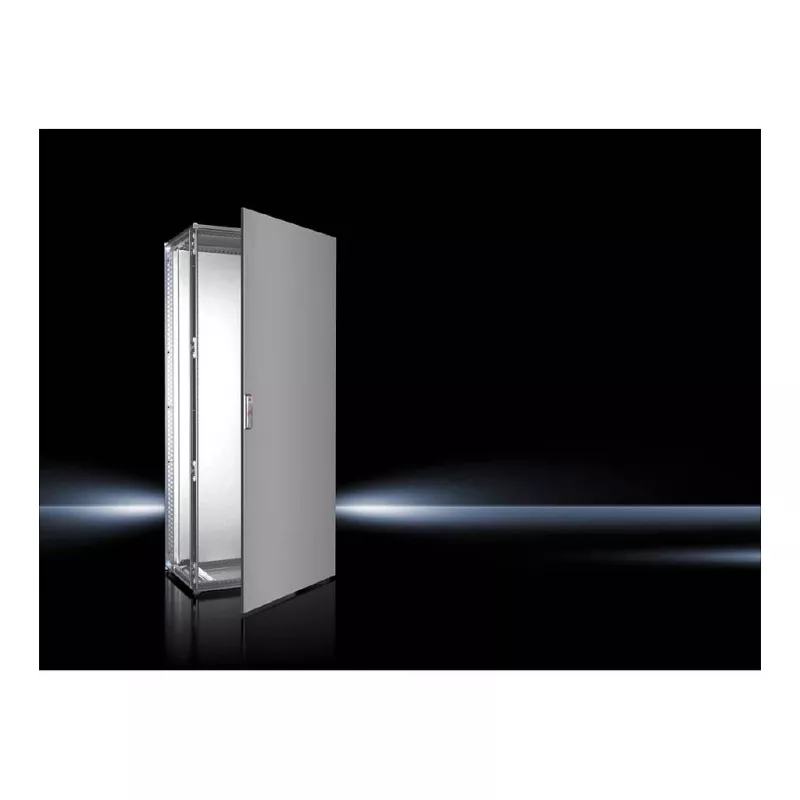

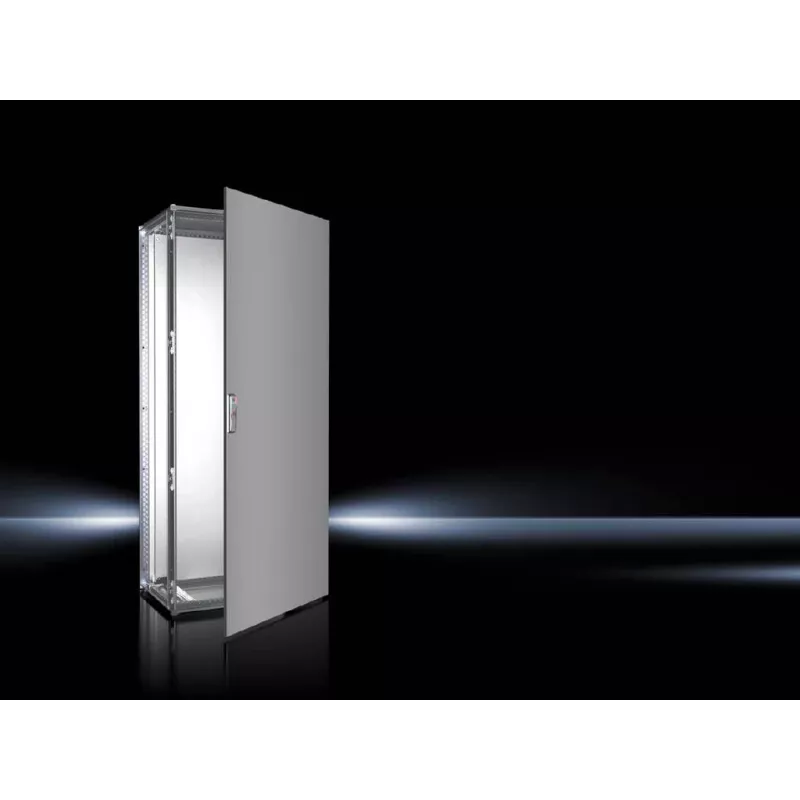

Rittal VX Sistema de armários em fila, porta única, 800x1800x500 mm, RAL 7035 cinzento claro

This floor-standing baying enclosure system from Rittal's VX25 series delivers exceptional load capacity and modular flexibility for demanding industrial and IT environments. The single-door cabinet measures 800 x 1800 x 500 mm (W x H x D) and provides a robust, IP55-rated housing for critical equipment. Its powder-coated sheet steel construction ensures long-term durability, while the RAL 7035 light grey finish offers a clean, professional appearance. The 130° door opening angle and 3 mm double-bit lock combine easy access with secure closure.

Advantages

The VX baying enclosure supports up to 1500 kg overall and 1000 kg on the mounting plate, making it suitable for heavy components. The removable rear and roof panels simplify installation and maintenance. With IP55 and NEMA 12 protection, the enclosure resists dust and water jets, ensuring reliable operation in harsh conditions. Its baying capability allows multiple units to be joined for scalable configurations, and the included mounting plate (depth 449 mm) provides immediate equipment mounting.

Suitable for

• Industrial control panels and switchgear
• IT and network equipment housing
• Electrical and electronic component mounting
• Machine building and automation systems

Key specifications

• Series: Rittal VX25
• Type: Baying Enclosure System
• Door: Single door, opening angle 130°
• Material: Sheet steel, powder-coated
• Colour: RAL 7035 Light Grey
• Protection: IP55, NEMA 12
• Dimensions (W x H x D): 800 x 1800 x 500 mm
• Mounting plate included, depth 449 mm
• Lock: 3 mm double-bit
• Load capacity: 1500 kg overall, 1000 kg mounting plate
• Certifications: UL, cUL, TÜV, EAC

Recommendations

Ideal for system integrators and panel builders seeking a reliable, high-capacity enclosure that can be integrated into larger baying configurations. Its robust construction and flexible design make it a long-term investment for industrial automation and IT infrastructure.
