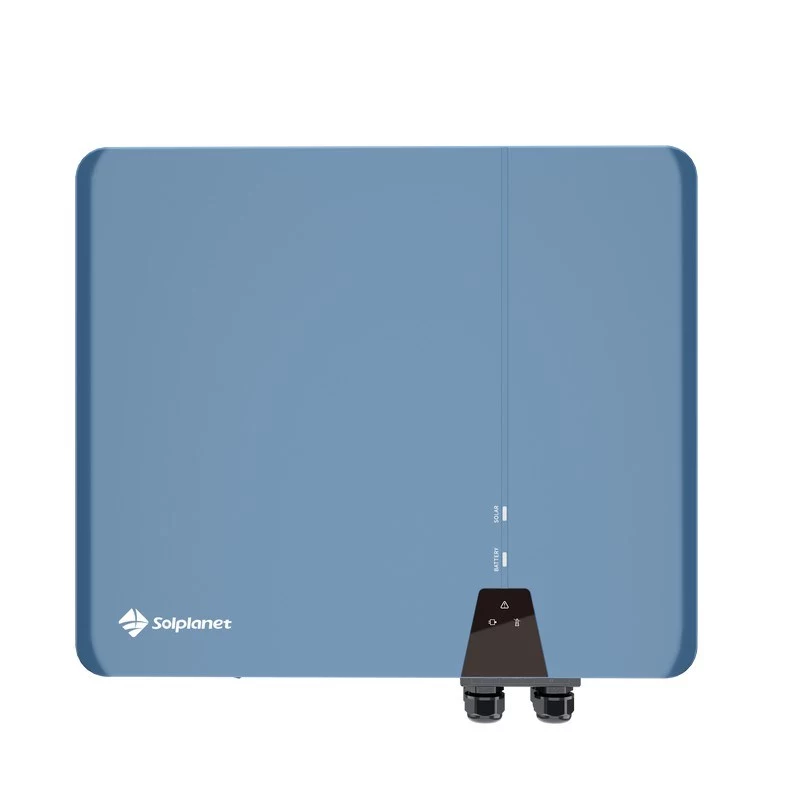

Solplanet ASW10kH-T3 inversor híbrido 10kW trifásico, 3 MPPT, WLAN/LAN/RS485, compatível com bateria de alta tensão

The Solplanet ASW10kH-T3 is a three-phase hybrid inverter delivering 10 kW of continuous power, engineered for residential and small commercial solar-plus-storage systems. Its standout capability is flexible energy management across three independent MPPT channels, each with dual string inputs, enabling maximum yield even with complex roof layouts or partial shading. The integrated DC disconnect switch and support for high-voltage LiFePO4 batteries, generator backup, and multiple communication protocols make it a versatile core for modern energy independence.

Advantages

With a maximum PV input of 15,000 W and an MPPT voltage range of 150–850 V, this inverter accommodates a wide array of module configurations. The three MPPTs, each handling two strings, minimize mismatch losses and optimize energy harvest. Its high-voltage battery compatibility (150–600 V) allows efficient storage with lower currents, reducing cable losses and improving round-trip efficiency. The built-in DC disconnect switch enhances safety during installation and maintenance, while IP65 protection and natural convection cooling ensure reliable operation in harsh environments from -25°C to +60°C. Communication via WLAN, LAN, and RS485 enables seamless monitoring and integration with smart home systems.

Suitable for

• Homeowners seeking to maximize self-consumption with high-voltage LiFePO4 battery storage
• Installers looking for a flexible three-phase hybrid solution with multiple MPPTs for complex roofs
• Applications requiring generator compatibility for backup power during grid outages
• Systems needing robust outdoor installation with IP65 rating and wide temperature tolerance

Key specifications

• Rated AC output power: 10 kW (three-phase, 230/400 V)
• Max PV input power: 15,000 W; Max PV input voltage: 1000 V
• 3 MPPTs, 2 strings per MPPT; MPPT voltage range: 150–850 V
• Battery compatibility: high-voltage LiFePO4, 150–600 V; max charge/discharge current: 25 A
• Communication: WLAN, LAN, RS485; integrated DC disconnect switch
• Max efficiency: 98.2%; protection degree: IP65; cooling: natural convection
• Operating temperature: -25°C to +60°C; warranty: 10 years

Recommendations

For optimal performance, pair this inverter with a compatible high-voltage LiFePO4 battery bank within the 150–600 V range. Ensure proper ventilation for natural convection cooling and utilize the WLAN/LAN interface for remote monitoring and firmware updates. The 10-year warranty provides long-term peace of mind.
