Suporte Axis 01457-001

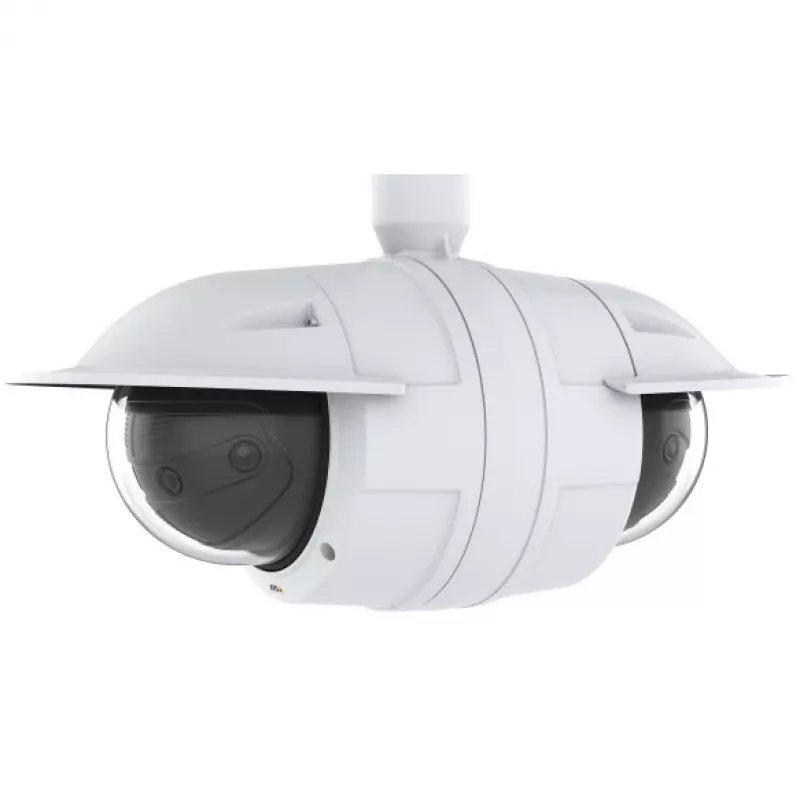

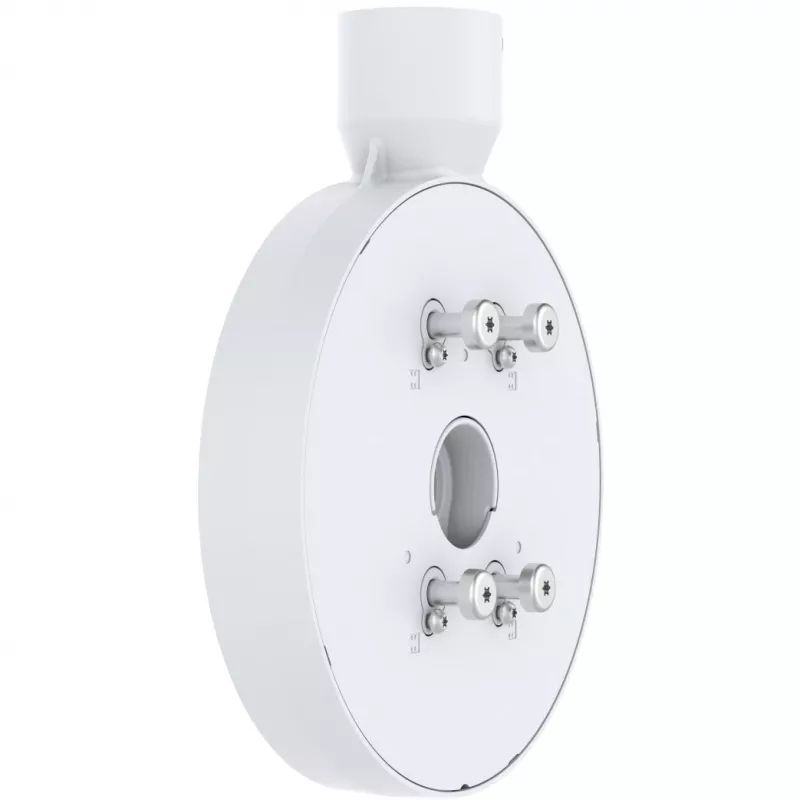

AXIS T94V01C Dual Camera Mount (Mount Axis 01457-001) is a universal mount that enables back-to-back installation of two Axis network cameras to provide panoramic coverage. The mount is compatible with many Axis cameras including dome, box and bullet models and connects to Axis mounting accessories with a 1.5” NPS threaded interface. Constructed for indoor and outdoor use, it has an IK10 impact rating for vandal resistance and a maximum supported camera weight of 10 kg. Dimensions: 36 mm (width) × 200 mm (depth) × 250 mm (height). Finish: white.

Advantages

The dual-camera design allows simultaneous installation of two cameras for extended field of view while keeping cable routing and mounting consolidated. Compatibility with a broad range of Axis cameras and the standard 1.5” NPS threaded interface simplifies integration with existing Axis mounting accessories. IK10 rating increases physical protection in exposed locations. Compact white housing supports unobtrusive placement in both indoor and outdoor environments.

Suitable for

• Panoramic or wide-area surveillance where two back-to-back cameras are needed
• Mounting on walls, poles or under ceilings using compatible Axis accessories
• Indoor and outdoor installations requiring vandal-resistant hardware

Key specifications

• Model: AXIS T94V01C / Mount Axis 01457-001
• Compatibility: Axis dome, box and bullet network cameras (1.5” NPS threaded interface)
• Maximum supported camera weight: 10 kg
• Dimensions (W × D × H): 36 mm × 200 mm × 250 mm
• Color/Finish: White
• Impact protection: IK10
• Suitable for: Indoor and outdoor use
• MPN: 01457-001 • EAN: 7331021063570

How to use

Install the mount onto a compatible Axis mounting accessory with a 1.5” NPS threaded connection. Fit up to two Axis cameras back-to-back in the designated mounting locations and secure them according to the camera manufacturer’s instructions. Route power and network cables through the mount and connected accessories as required. Verify that the combined weight of the cameras does not exceed 10 kg and that the installation provides the intended field of view and stability.

Recommendations

Do not use the AXIS T94V01C as a single-camera mount; it is designed for back-to-back dual installations to ensure physical stability. For outdoor or vandal-prone locations, ensure all seals and cable entries are correctly installed to maintain weather resistance and IK10 protection.
