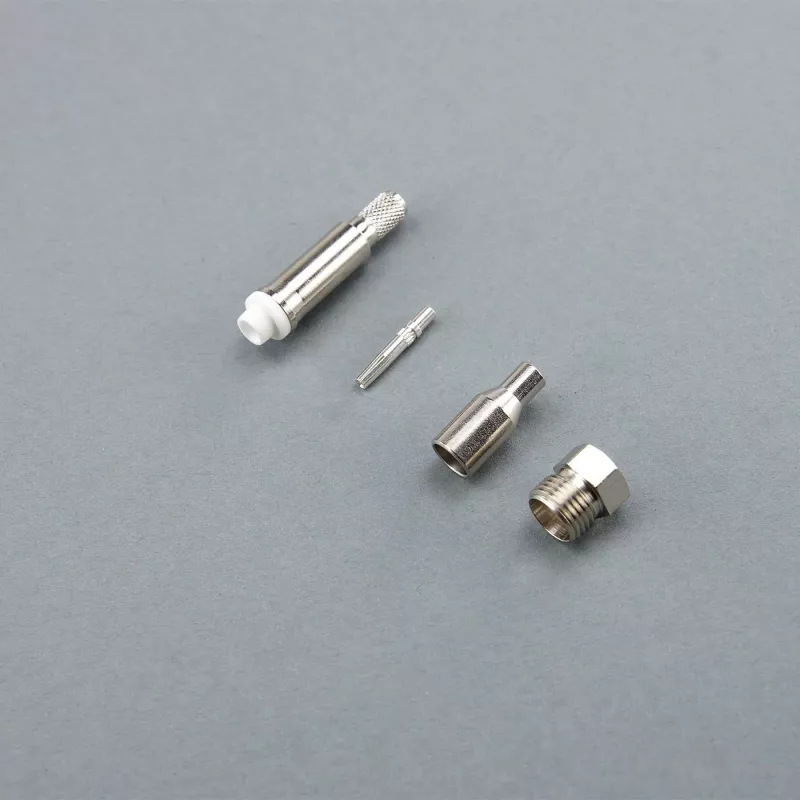

Telegärtner Conector fêmea FME de crimpar para RG-316/U, 50 Ohm, níquel/ouro, 1 unid. J01701A0008Z

Terminating thin coaxial cables like RG-316/U in tight spaces often means choosing between a bulky connector or a weak crimp. This FME jack solves that with a compact, crimp-style design that fits cable group G07 and maintains a stable 50 Ohm connection up to 3 GHz.

Who is it for

RF technicians and installers who need a reliable FME female connector for mobile antennas, GPS systems, or test setups using RG-316/U, RG-174/U, RG-188/U, or LMR-100A cables.

Main features

• FME series female (jack) connector, cable mount, crimp termination
• Compatible with cable group G07: RG-316/U, RG-174/U, RG-188/U, LMR-100A
• 50 Ohm impedance, DC to 3 GHz frequency range
• Brass body with nickel plating, gold-plated center contact, PTFE insulator
• Low VSWR ≤ 1.25 at 2 GHz, operating temperature -40°C to +85°C

Specifications

• Connector Series: FME
• Connector Type: Jack (Female)
• Mounting Type: Cable Mount
• Termination Method: Crimp
• Compatible Cable Group: G07
• Compatible Cable Types: RG-316/U, RG-174/U, RG-188/U, LMR-100A
• Impedance: 50 Ohm
• Frequency Range: DC to 3 GHz
• Voltage Rating: 335 V (RMS)
• Insulation Resistance: ≥ 5 GΩ
• Contact Resistance (Center): ≤ 5 mΩ
• Contact Resistance (Outer): ≤ 2.5 mΩ
• VSWR: ≤ 1.25 @ 2 GHz
• Body Material: Brass
• Body Plating: Nickel
• Center Contact Plating: Gold
• Insulator Material: PTFE
• Operating Temperature: -40°C to +85°C
• RoHS Compliant: Yes
• Packaging Quantity: 1 piece

Tips

Use the correct crimp die for RG-316/U to ensure a secure connection and optimal electrical performance.
