Telegärtner Ficha BNC Conector de crimpagem 75 Ohm Série Professional para cabo coaxial J01002A0073

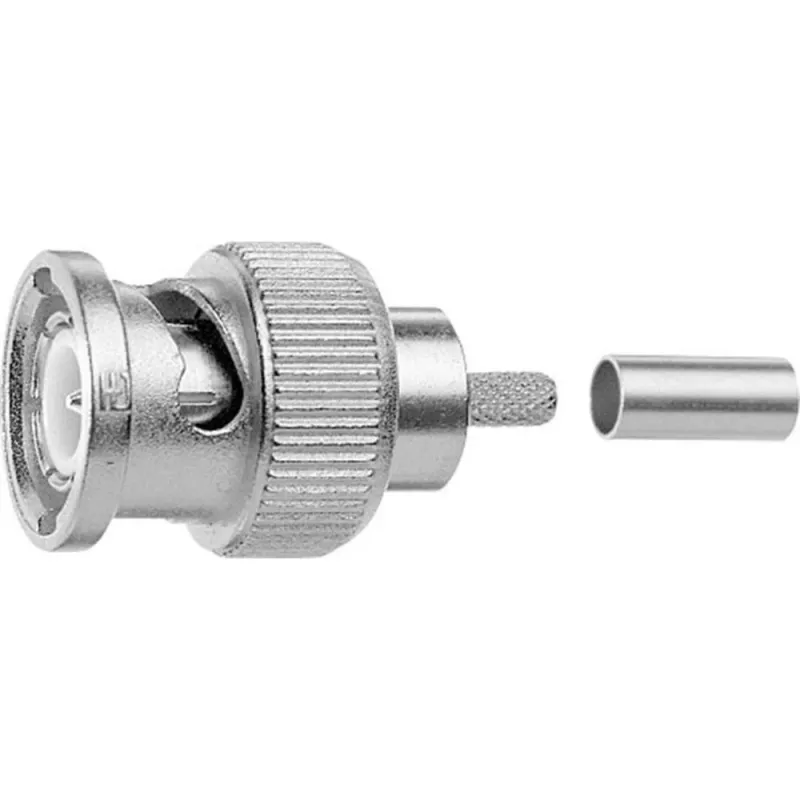

RF coaxial BNC male plug with crimp termination, engineered for 75-ohm video and broadcast applications up to 3 GHz. The Professional series connector delivers a return loss of ≥28 dB at 3 GHz, ensuring excellent signal integrity for HDTV and high-frequency transmissions.

Advantages

Precision-machined body and center contact provide reliable, low-loss connections. Crimp termination for both center conductor and shield offers a secure, durable assembly that withstands repeated mating cycles. Optimized for 1.2 mm center conductor and 4.8 mm dielectric coaxial cables, making it ideal for RG-59 and RG-6 type cables used in broadcast and video systems.

Suitable for

• HDTV and digital video broadcasting equipment
• Professional video patching and routing systems
• 75-ohm coaxial cable assemblies in studio and field applications

Key specifications

• Connector type: BNC male plug
• Impedance: 75 Ohm
• Frequency range: DC to 3 GHz
• Return loss (HDTV): ≥ 28 dB @ 3 GHz
• Termination: Crimp (center conductor and shield)
• Compatible center conductor diameter: 1.2 mm
• Compatible dielectric diameter: 4.8 mm
• Body orientation: Straight
• Mounting type: Cable mount

Recommendations

Use with precision crimp tools designed for BNC connectors to achieve specified performance. Verify cable dimensions before installation to ensure proper fit and signal integrity.
