Unidade sensor Axis 02639-001 CMOS 1920x1080 preto

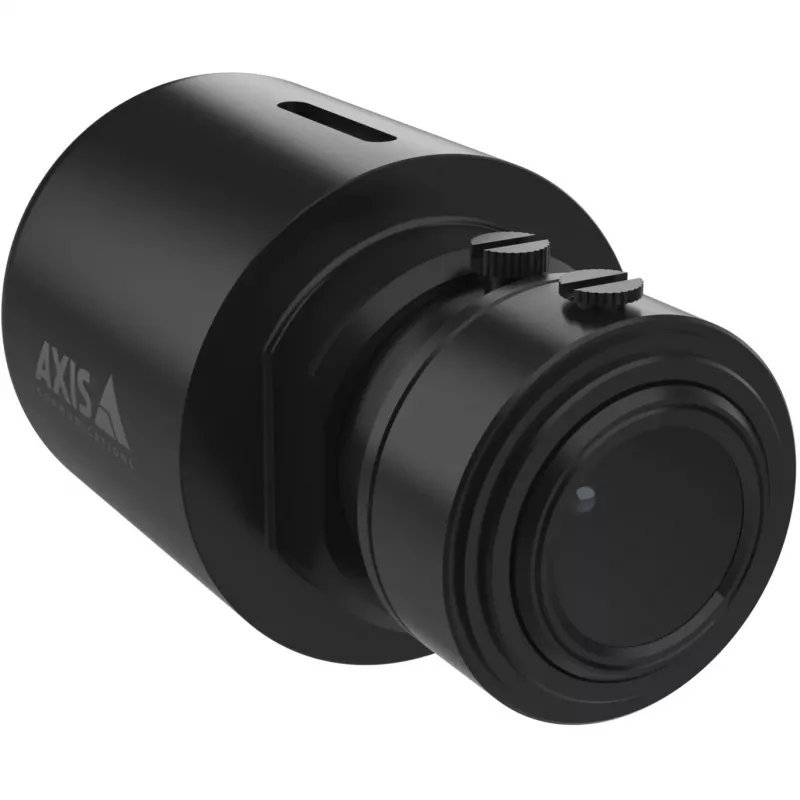

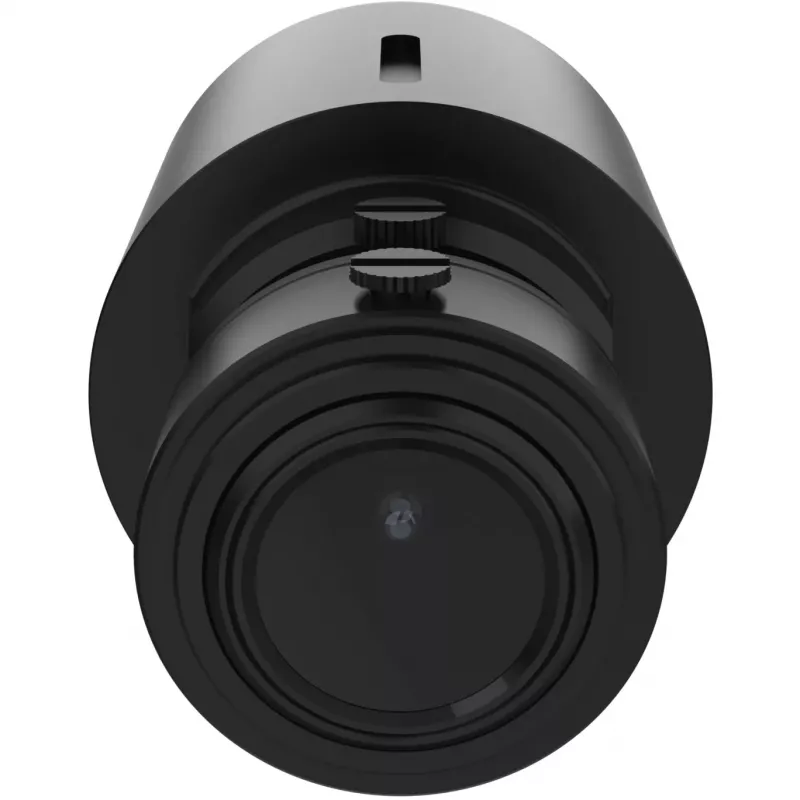

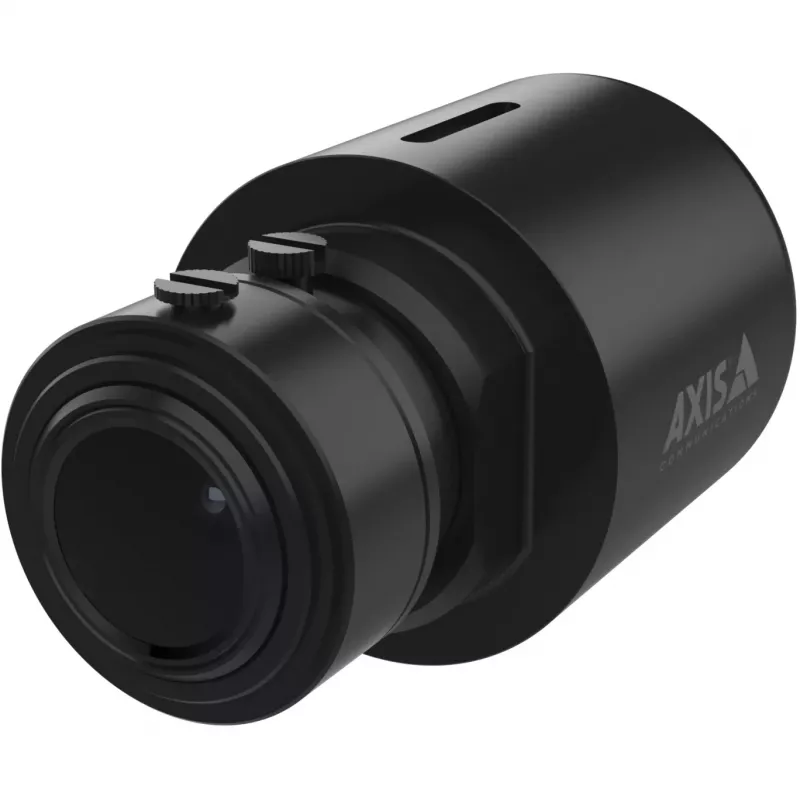

AXIS 02639-001 is a compact sensor unit with a 1920 x 1080 CMOS sensor designed for divided network camera systems. The unit supports 1080p at 60 fps (or 720p at 180 fps when used with AXIS F9111) and provides a variable horizontal field of view from 107° to 56°. Engineered for rugged indoor installations, the sensor offers good low-light color performance and operates across a wide temperature range for reliable use in challenging environments. The module is finished in black and uses an M12 lens mount interface.

Advantages

The sensor unit delivers full HD resolution at high frame rates and a varifocal field of view, enabling flexible coverage and smooth video capture. Its ruggedized design with SMA‑FAKRA cabling compatibility ensures resistance to vibration and supports secure, discreet installations with only a small sensor visible externally. Low power consumption and broad operating temperature tolerance make it suitable for demanding surveillance setups.

Suitable for

• Indoor video surveillance where a discreet sensor is required
• Transport or industrial environments with vibration exposure
• Systems requiring high frame rates for motion capture
• Installations needing a varifocal lens with an M12 mount

Key specifications

• Sensor resolution: 1920 x 1080 (CMOS)
• Frame rate: 1080p at 60 fps; 720p at 180 fps with AXIS F9111
• Horizontal field of view: 107°–56° (varifocal)
• Lens mount: M12
• Color: Black
• Power consumption: typical 1 W, maximum 4 W
• Cabling: compatible with Axis SMA‑FAKRA connectors (cable runs up to 30 m / 98 ft)
• Operating temperature: intermittent -40 °C to 70 °C (-40 °F to 158 °F)

How to use

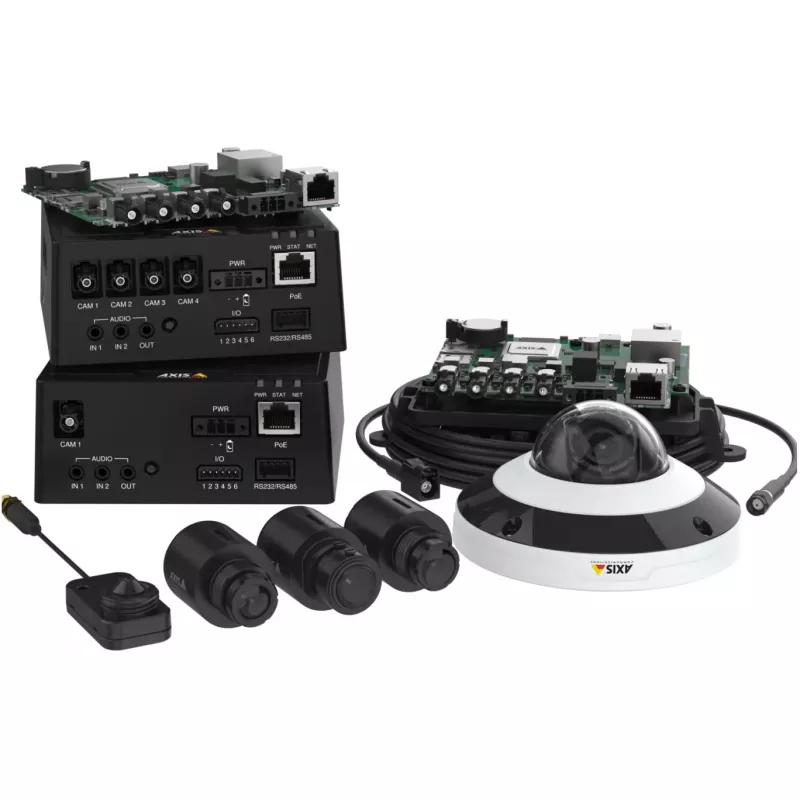

Install the sensor unit as part of a divided network camera system, connecting it to the corresponding network and encoder unit using Axis-approved cables with SMA‑FAKRA connectors. Fit an appropriate M12 lens according to the desired field of view, and configure the camera settings through the host device or management software. Ensure power and data connections meet the system requirements and verify image orientation and focus during commissioning.

Recommendations

For reliable operation, use Axis cables with SMA‑FAKRA connectors and adhere to the recommended maximum cable length of 30 m (98 ft). Select an M12 lens that matches the required coverage and check environmental housings or mounting that protect the sensor while allowing adequate ventilation for temperature extremes.
