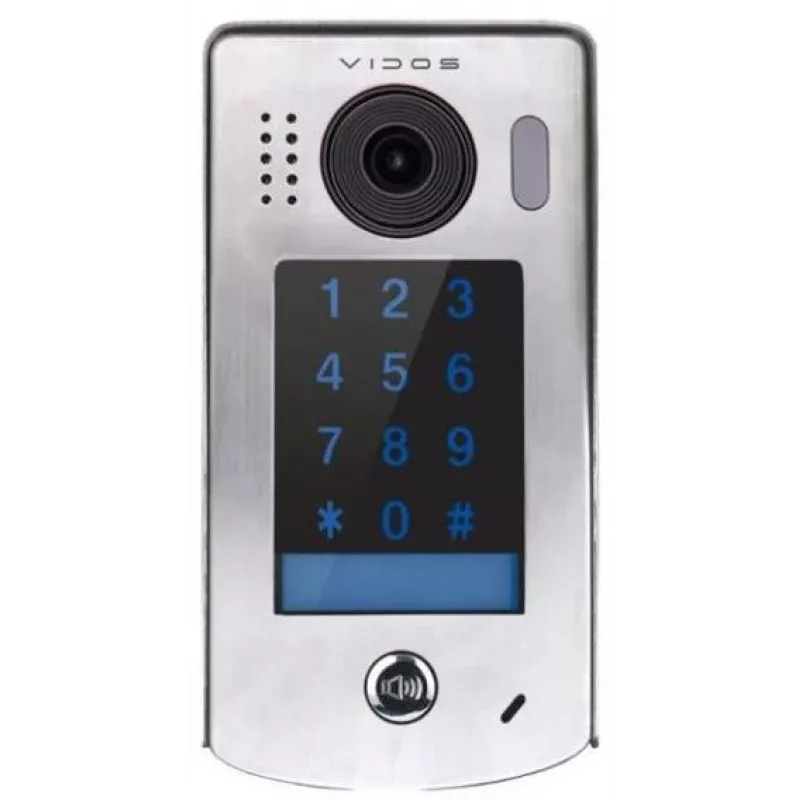

VIDOS DUO IP S302 Posto de vídeo porteiro com RFID, câmara grande angular 2MP, IP65 aço inoxidável, montagem à superfície

Instead of forcing you to combine separate camera, intercom, and access modules, the VIDOS DUO IP S302 merges a 2MP wide-angle camera, built-in RFID reader, and dual relay outputs into one vandal-resistant stainless steel station. It runs on the 2-wire DUO bus for simple wiring and adds IP connectivity for flexible integration with your existing network.

Highlights

• 2.0 Mpx CMOS sensor with 170° wide-angle lens captures full HD video
• Integrated 125kHz RFID reader supports up to 1000 users
• Two relay outputs independently control gate and door locks
• IP65 weatherproof and IK07 impact-rated stainless steel front panel
• Backlit call button and nameplate ensure visibility at night
• Two-way audio with echo cancellation for clear communication

In daily use

At the gate, visitors press the illuminated call button; residents see and speak with them via the DUO indoor monitor. For frequent users, a simple RFID tag grants access without a key. The station operates from -30°C to +50°C, and its surface-mount design simplifies retrofits. Power is supplied directly from the DUO system (DC 24V), eliminating extra wiring.

Full specifications

• Product Type: Video Door Station / Gate Station
• System Compatibility: VIDOS DUO (2-wire non-polarized)
• Connectivity: IP (Ethernet RJ45)
• Camera Resolution: 2.0 Mpx (1080p)
• Camera Sensor: CMOS
• Lens: Wide-angle, 2.8mm
• Viewing Angle: 170°
• Night Vision: IR LEDs
• Access Control: Built-in RFID reader (125kHz), up to 1000 users
• Relay Outputs: 2 (for gate/door control)
• Housing Material: Stainless steel front panel
• Ingress Protection: IP65
• Impact Protection: IK07
• Mounting Type: Surface mount
• Power Supply: DC 24V (from DUO system)
• Operating Temperature: -30°C to +50°C
• Audio: Two-way audio, echo cancellation
• Buttons: 1 backlit call button, backlit nameplate

Final note

With its all-in-one design and robust construction, the VIDOS DUO IP S302 is a practical choice for secure entry control in residential or commercial settings.
