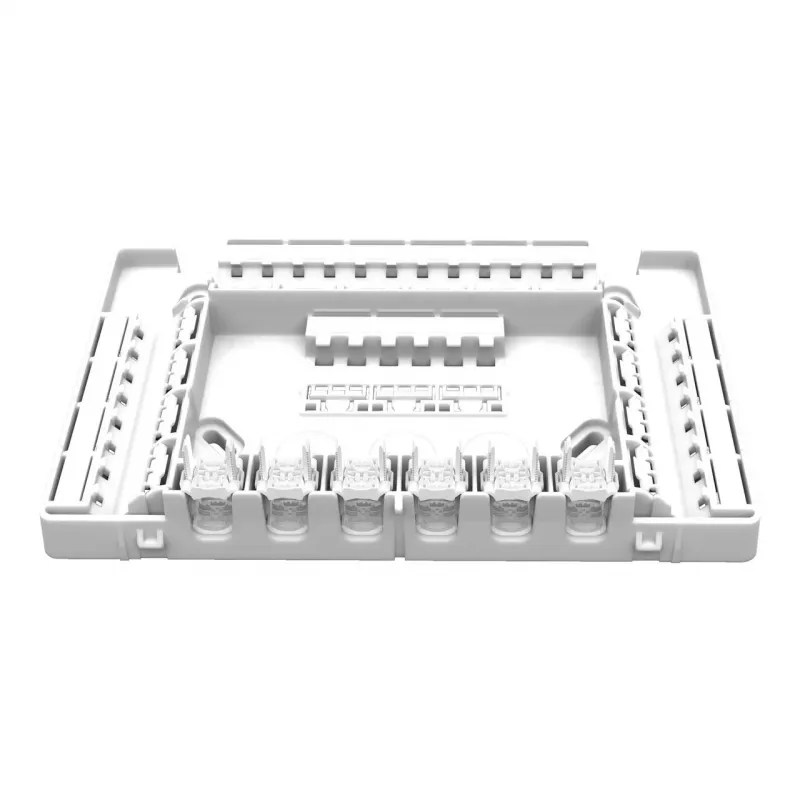

WAGO 207-4301 Caixa de derivação para cabos com bainha

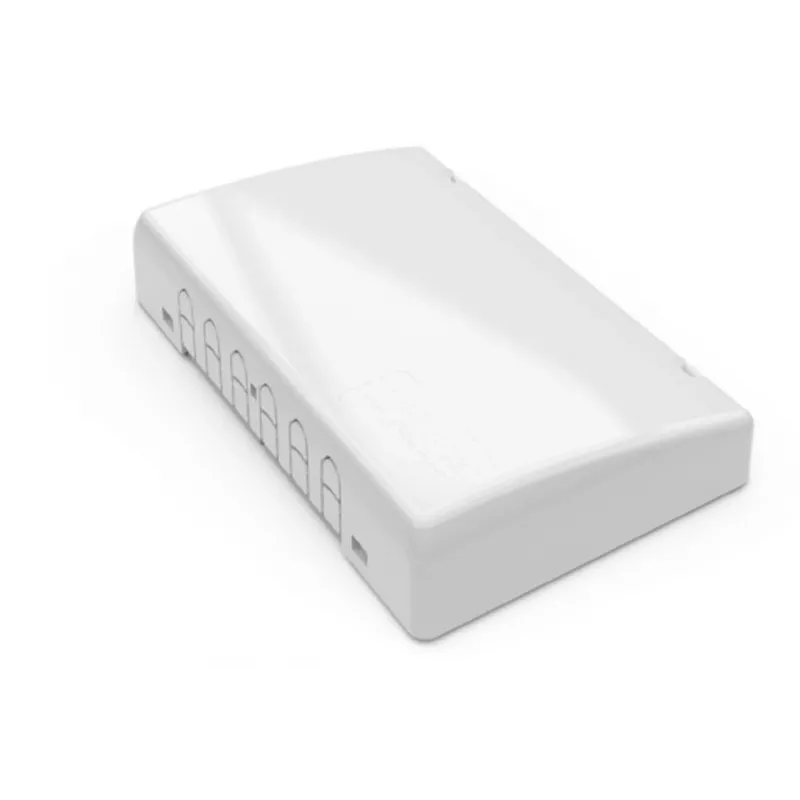

The WAGO 207-4301 junction box is a high-quality surface-mounted enclosure designed for use with sheathed cables such as NYM-J. It is specifically engineered to accommodate WAGO 221 Series Lever-Nut Connectors, providing a reliable and secure connection solution for electrical installations. The box features three cable entries and is made from durable polycarbonate material with a white finish, ensuring long-lasting performance in indoor environments.

Advantages

This junction box offers easy installation and maintenance thanks to its screw-fixing mounting type and compatibility with tool-free lever-nut connectors. The halogen-free polycarbonate material provides excellent electrical insulation and flame retardancy (UL94 V-2), enhancing safety. Its compact design allows for surface mounting in tight spaces, making it ideal for residential and commercial wiring projects.

Suitable for

• Connecting and distributing sheathed cables (e.g., NYM-J 3x1.5mm² to 3x2.5mm²) in electrical installations
• Use with WAGO 221 Series connectors for quick and reliable wire connections
• Surface mounting on walls or ceilings in dry indoor areas
• Applications requiring a junction box with IP20 protection

Key specifications

• Product Type: Junction Box
• Application: For sheathed cables (e.g., NYM-J)
• Compatibility: Designed for WAGO 221 Series Lever-Nut Connectors (e.g., 2x 221-41x)
• Number of Cable Entries: 3
• Protection Class: IP20
• Material: Polycarbonate (PC)
• Color: White
• Mounting Type: Surface mounting, screw fixing
• Rated Voltage (max): 450 V
• Rated Current (max): 24 A
• Operating Temperature Range: -25 °C to +85 °C
• Flammability Rating: UL94 V-2
• Halogen-Free: Yes
• Cable Diameter Range: Suitable for standard sheathed cables like 3x1.5mm² to 3x2.5mm²
• Number of Connectors (capacity): Up to 2 WAGO 221 series connectors

Recommendations

For optimal performance, pair this junction box with WAGO 221 Series connectors. Ensure proper cable stripping and insertion for a secure connection. Always follow local electrical codes and regulations during installation.
