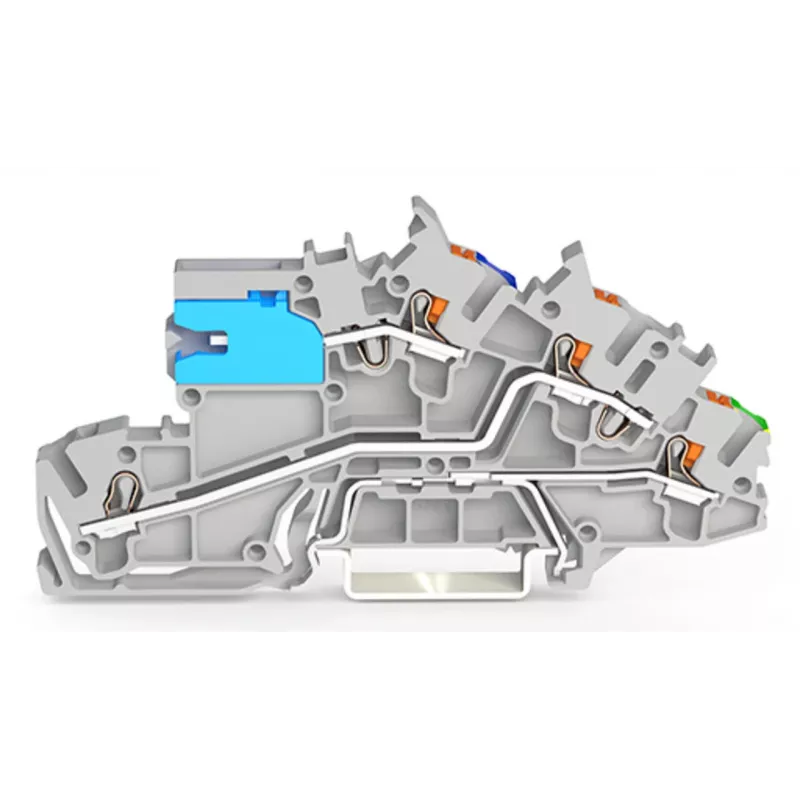

WAGO 2203-7541 Bloco de bornes de instalação multi-nível com abertura de acionamento, 3 potenciais, PUSH WIRE, cinzento

The WAGO 2203-7541 is a high-quality multi-level installation terminal block designed for efficient and reliable electrical connections. Featuring PUSH WIRE® connection technology, it allows for fast, tool-free wiring of solid and fine-stranded conductors. This terminal block is ideal for use in building installations, offering three potentials (L, N, PE) with a total of five clamping points. Its compact design saves space on DIN-rail 35 mm, while the actuation opening simplifies operation and maintenance.

Advantages

Tool-free PUSH WIRE® connection for quick installation. Space-saving 3-level design integrates L, N, and PE in one unit. High reliability with rated voltage up to 400 V and current up to 24 A. Suitable for solid and fine-stranded conductors from 0.5 to 2.5 mm² (20-14 AWG). Robust polyamide housing ensures long service life in temperatures from -35 °C to +85 °C.

Suitable for

• Building installation wiring
• Distribution boards and junction boxes
• Industrial control panels
• Lighting and power circuits

Key specifications

• Product Type: Multi-level Installation Terminal Block
• Connection Technology: PUSH WIRE®
• Number of Potentials: 3 (L, N, PE)
• Total Clamping Points: 5
• Nominal Voltage (EN): 400 V
• Nominal Current (EN): 24 A
• Rated Impulse Voltage: 4 kV
• Conductor Cross-section (Solid): 0.5 - 2.5 mm² (20 - 14 AWG)
• Conductor Cross-section (Fine-stranded): 0.5 - 2.5 mm² (20 - 14 AWG)
• Strip Length: 11 mm (0.43 inch)
• Mounting Type: DIN-rail 35 mm
• Color: Gray
• Insulating Material: Polyamide (PA 66)
• Pollution Degree: 2
• Operating Temperature: -35 °C to +85 °C
• Approvals: VDE, UL, CSA
• Number of Levels: 3

Recommendations

For optimal performance, use with WAGO pre-stripped conductors or a suitable stripping tool. Ensure proper DIN-rail mounting and observe local electrical codes.
