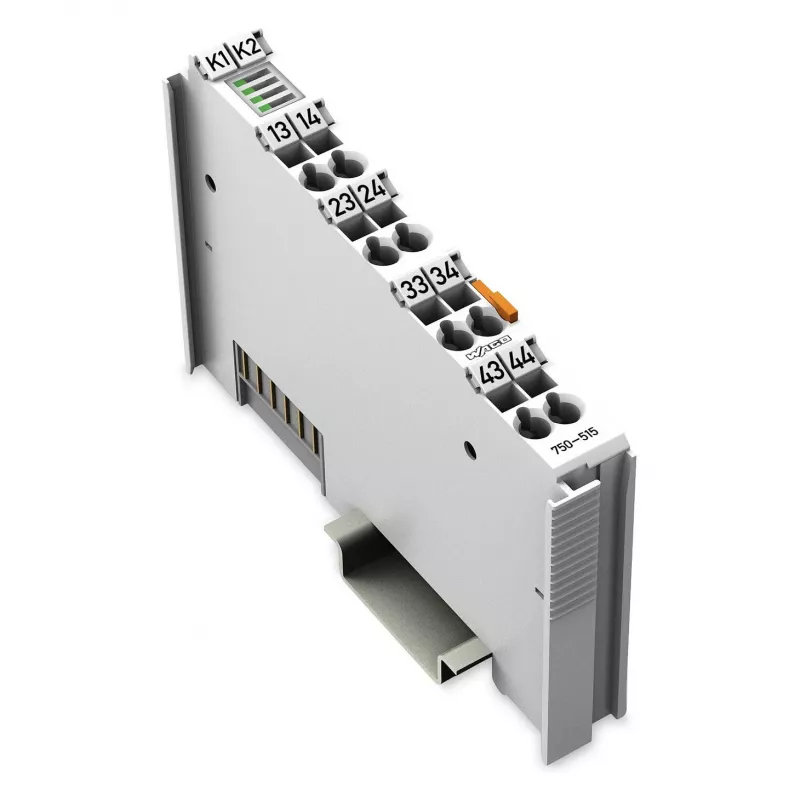

WAGO 750-515 módulo de saída de relé de 4 canais, AC 250 V, 2,0 A

The WAGO 750-515 is a 4-channel relay output module rated for AC 250 V and 2.0 A. It features a grey polycarbonate housing with IP20 protection and operates within a temperature range of 0 to 55 °C.

Key features

• 4-channel relay output module
• AC 250 V rated voltage
• 2.0 A current rating
• IP20 protection
• Grey polycarbonate housing

Specifications

• Brand: WAGO
• MPN: 750-515
• Material: Polycarbonate
• Product colour: Grey
• Current: 2 A
• Wire size (AWG): 28 - 14
• International protection code: IP20
• Module series: 4
• Operating temperature: 0 - 55 °C
• Maximum operating humidity: 95%
• Width: 12 mm
• Depth: 67.8 mm
• Height: 100 mm
• Nominal voltage: 250 V
